1 Overview
1-4
CJ2 CPU Unit Hardware User’s Manual
z Built-in USB and EtherNet/IP Ports
Commercially available USB cable can be used to connect directly from a USB port on a personal
computer. In addition, a PLC on the EtherNet/IP network can be accessed via USB.
z Prevent Connecting to the Wrong PLC by Using PLC Names from Support
Software
A user-set PLC name can be recorded in a CJ2 CPU Unit. When using Support Software to connect
online to a PLC, verification of the PLC name prevents incorrect connections from the Support Soft-
ware.
z Network Symbols (Tags) for Flexible Support of Program Changes
The CJ2 CPU Units support network symbols (tags). They have an internal tag name server that
enables them to store tag names and addresses in advance in symbol tables in the CPU Units. Tags
enable the following features.
Data links can be set using tags.
With data links on an EtherNet/IP network, send and receive areas can be specified using symbols
rather than addresses. This enables flexible support for design changes by allowing the data link
areas set by tags to remain unchanged, while simply changing the symbol tables that contain the tag
names and addresses.
Access from host devices is enabled using tags.
Tags can be used for access from host devices, such as touch panel NS-series Programmable Ter-
minals. This makes the creation of host screens and programs at devices such as PTs much more
convenient.

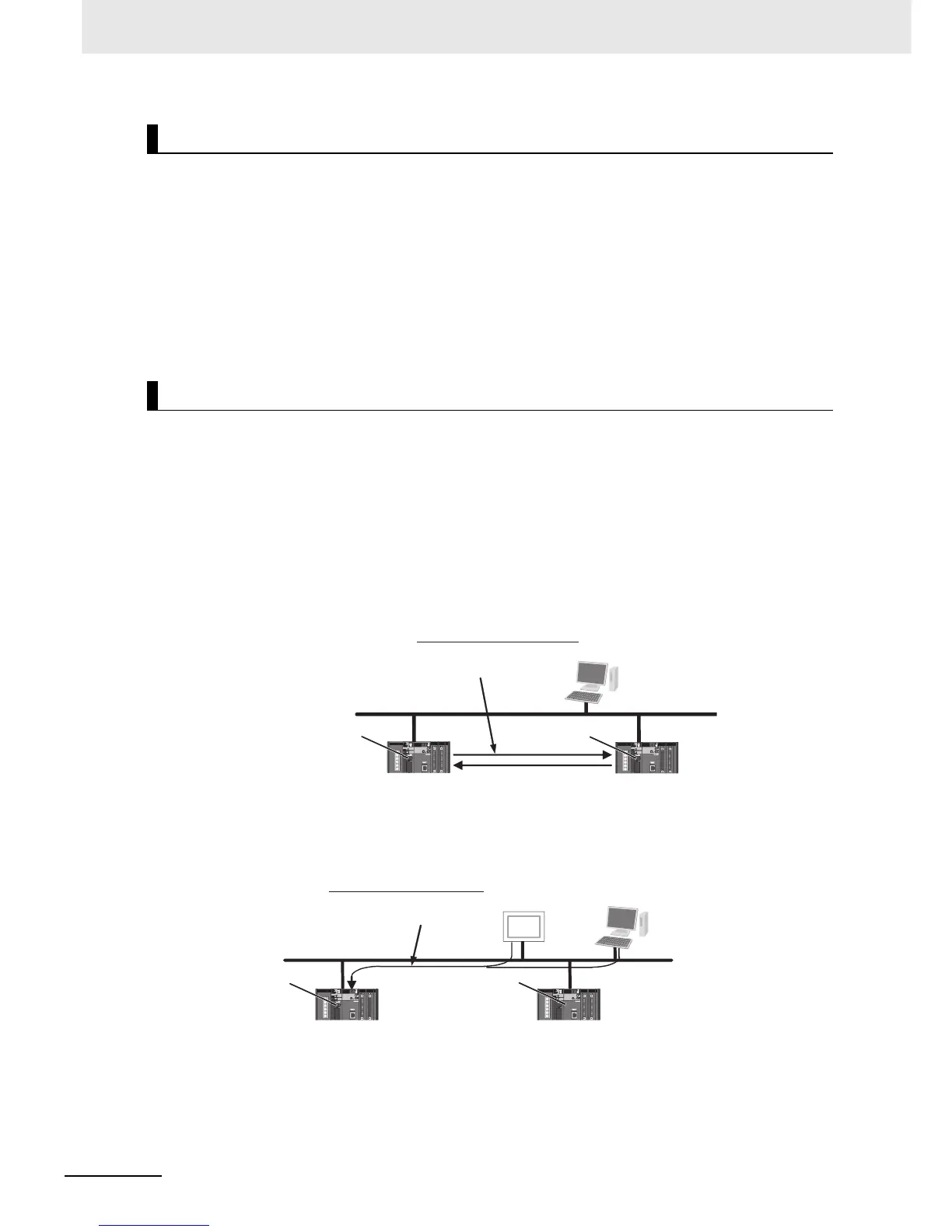

General-purpose Networks for Support Software Interface
Tag Access
Data links enabled by names
EtherNet/IP
Examples:
Inputs from a to b
Inputs from c to d
CJ2 CPU Unit
CJ2 CPU Unit
EtherNet/IP
Touch Panel
NS-series PT
Examples:
Writing to a
Reading from b
Middleware
Supporting EtherNet/IP
CJ2 CPU Unit
CJ2 CPU Unit
Host application, such as SCADA
Access is possible using tags.

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
