Omron CJ2 User Manual

Appendices
A-102
CJ2 CPU Unit Hardware User’s Manual
This section provides connection examples and corresponding connection diagrams.
Refer to A-4-3 Applicable Connectors and Recommended Cables for actual wiring methods.
Note Connections to a computer running the CX-Programmer are the same as those shown here.
z 1:1 Connections via RS-232C Port
Note The maximum cable length for an RS-232C connection is 15 m. RS-232C communications specifications,
however, do not cover transmissions at 19.2 Kbps. Refer to documentation of the device being connected
when using this baud rate.

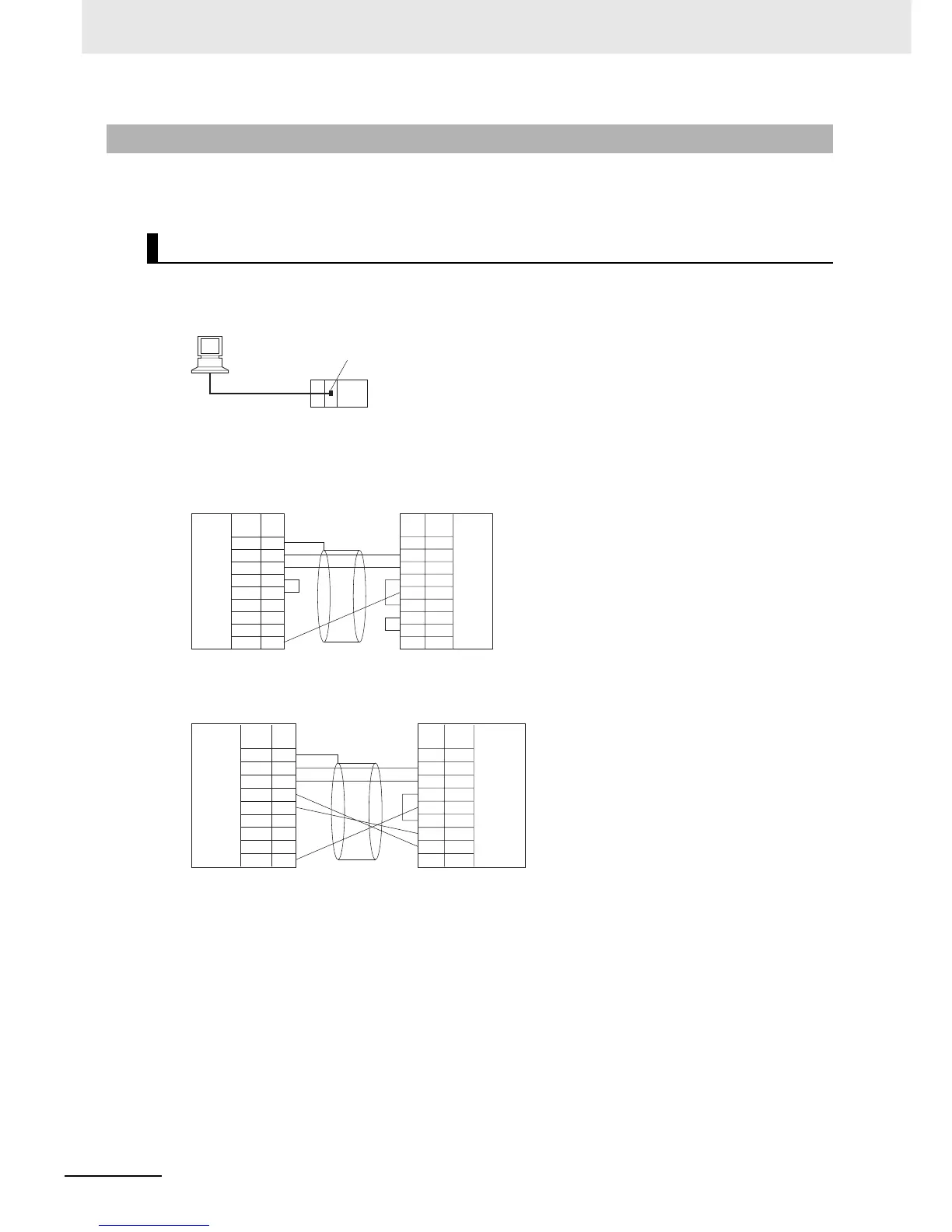

Connection Example for the Host Link Serial Communications Mode
Connection Example for the Peripheral Bus (Toolbus) Serial Communications Mode
A-4-2 Connection Examples
Connections to Host Computers
RS-232C
RS-232C
port
1
2
3
4
5
6
7
8
9
CD
RD
SD
ER
SG
DR
RS
CS
CI
1
2
3
4
5
6
7
8
9
FG
SD
RD
RS
CS
5V
DR
ER
SG
CPU Unit
Computer
RS-232C
interface
Signal
name
Signal
name
RS-232C
interface
D-sub, 9-pin
connector (male)
D-sub, 9-pin
connector (female)
Pin
No.
Pin
No.
CPU Unit
Computer
RS-232C
interface
Signal
name
Signal
name
RS-232C
interface
D-sub, 9-pin
connector (male)
D-sub, 9-pin
connector (female)
Pin
No.
Pin
No.
1
2
3
4
5
6
7
8
9
CD
RD
SD
ER
SG
DR
RS
CS
CI
1
2
3
4
5
6
7
8
9
FG
SD
RD
RS
CS
5V
DR
ER
SG

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
