Omron CJ2 User Manual

5-15
5 Installation
CJ2 CPU Unit Hardware User’s Manual
5-2 Installation
5

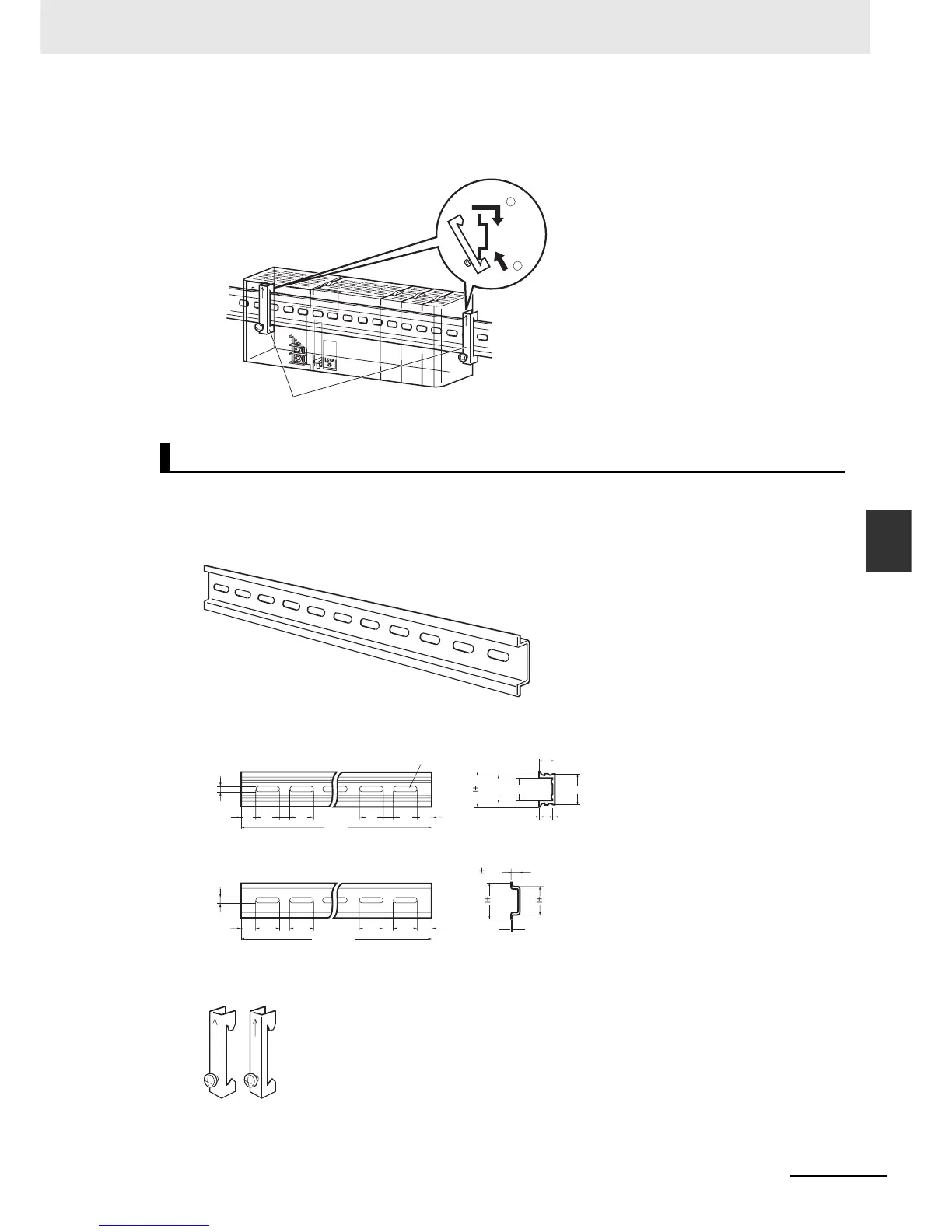

5-2-5 DIN Track Installation
4. Install a DIN Track End Plate on each end of the PLC. To install an End Plate, hook the bottom
on the bottom of the track, rotate the Plate to hook the top of the Plate on the top of the track,
and then tighten the screw to lock the Plate in place.
Use the DIN Track and DIN Track End Plates shown below. Secure each DIN Track inside a control
panel with at least three screws.
•DIN Track
Model numbers: PFP-50N (50 cm), PFP-100N (100 cm), PFP-100N2 (100 cm)
Secure the DIN Track to the control panel using M4 screws separated by 210 mm (6 holes) or less and
using at least 3 screws. The tightening torque is 1.2 N·m.
• PFP-M DIN Track End Plates (2 required)
DIN Track and Accessories
End Plates
2
1
15
10
4.5
25
25
25
10
25
15
1000
PFP-100N2 DIN Track
PFP-100N/50N DIN Track
15
10
4.5
25 25
25
10
25
1
16
1.51
29.2
24
27
30 0.3
7.3
0.15
35
0.3 27 0.15
Twenty-eight, 25 x 4.5 oblong holes
1000 (500)*
15 (5)*
* PFP-50N dimensions are
given in parentheses.

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
