Omron CJ2 User Manual

A-7
Appendices
CJ2 CPU Unit Hardware User’s Manual
A-1 Specifications of Basic I/O Units
App
A-1-2 Basic I/O Units
*1 The ON response time will be 20 µs maximum and OFF response time will be 400 µs maximum even if the
response times are set to 0 ms due to internal element delays.
Note Observe the following restrictions when connecting to a 2-wire sensor.
• Make sure the input power supply voltage does not exceed the ON voltage (19 V) plus the residual volt-
age of the sensor (approx. 3 V).
• Use a sensor with a minimum load current of 3 mA min.
• Connect bleeder resistance if you connect a sensor with a minimum load current of 5 mA or higher.

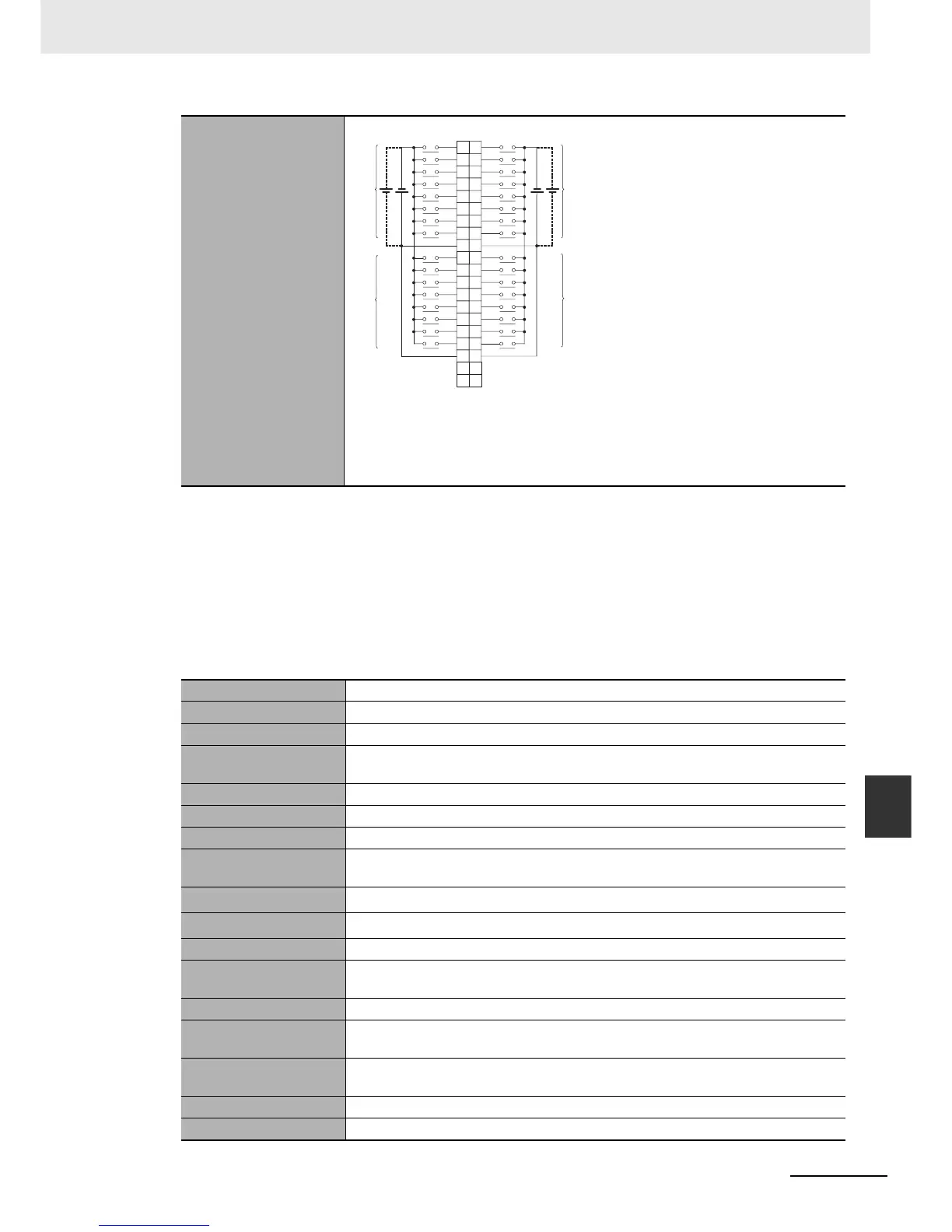

z CJ1W-ID232 DC Input Unit (24 VDC, 32 Points)
Terminal Connections
• The input power polarity can be connected in either direction.
• Be sure to wire both pins A9 and A18 (COM0), and set the same polarity for both
pins.
• Be sure to wire both pins B9 and B18 (COM1), and set the same polarity for both
pins.
Name 32-point DC Input Unit with MIL Connector
Model CJ1W-ID232
Rated Input Voltage 24 VDC
Rated Input Voltage
Range
20.4 to 26.4 VDC
Input Impedance 5.6 kΩ
Input Current 4.1 mA typical (at 24 VDC)
ON Voltage/ON Current 19.0 VDC min./3 mA min.
OFF Voltage/OFF Cur-
rent
5 VDC max./1 mA max.
ON Response Time
8.0 ms max. (Can be set to between 0 and 32 in the PLC Setup.)
*1
OFF Response Time
8.0 ms max. (Can be set to between 0 and 32 in the PLC Setup.)
*1
Number of Circuits 32 (16 points/common, 2 circuits)
Number of Simulta-
neously ON Points
75% (12 points/common) simultaneously ON (at 24 VDC) (Refer to the following
illustration.)
Insulation Resistance 20 MΩ between external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Internal Current Con-
sumption
90 mA max.
Weight 70 g max.
Accessories None
IN0
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN0
IN1
IN2
IN3
IN4
IN5
IN6
IN7
COM0
IN8
IN9
IN10
IN11
IN12
IN13
IN14
IN15
IN8
IN9
IN10
IN11
IN12
IN13
IN14
IN15
COM0
NC
NC
COM1
COM1
NC
NC
Allocated
CIO word
Allocated
CIO word
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
Wd m+1
Wd m
24
VDC
Wd m
Wd m+1
24
VDC
Signal
name
Signal
name
Connec-
tor pin

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
