Omron CJ2 User Manual

Appendices
A-20
CJ2 CPU Unit Hardware User’s Manual

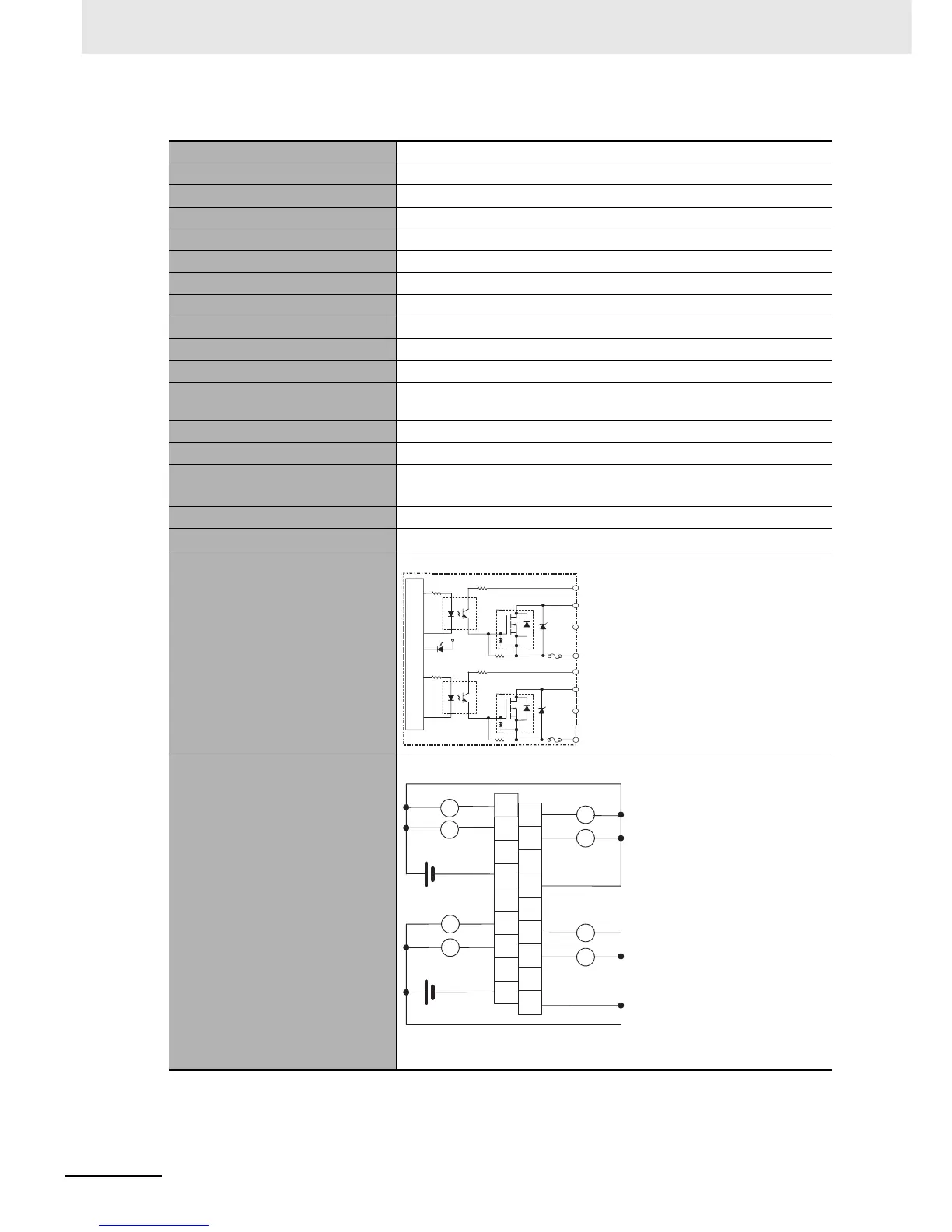

z CJ1W-OD201 Transistor Output Unit (8 Points)
*1 Terminal numbers A0 to A8 and B0 to B8 are used in this manual, but they are not printed on the Unit.
Note Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O. This Unit is also
treated as a 16-point I/O Unit in the I/O tables.
Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model CJ1W-OD201
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 2.0 A/point, 8.0 A/Unit
Maximum Inrush Current 10 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for
1 minute at a leakage current of 10 mA max.
Number of Circuits 8 (4 points/common, 2 circuits)
Internal Current Consumption 90 mA max.
Fuse
6.3 A (1/common, 2 used)
The fuse cannot be replaced by the user.
External Power Supply 12 to 24 VDC, 10 mA min.
Weight 110 g max.
Circuit Configuration
Terminal Connections
• When wiring, pay careful attention to the polarity of the external power
supply. The load may operate incorrectly if the polarity is reversed.
OUT0
+V
OUT3
COM0
OUT4
+V
OUT7
COM1
Internal circuits
Output indicator
Fuse
Fuse
to
to
Signal
name
OUT0
OUT2
COM0
NC
NC
OUT4
OUT6
B0
B1
B2
B3
B4
B5
B6
B7
B8
NC
A0
OUT1
OUT3
+V
NC
NC
NC
OUT5
OUT7
A1
A2
A3
A4
A5
A6
A7
A8
COM1
+V
L
L
L
L
L
L
L
L
12 to 24 VDC
12 to 24 VDC
Signal
name
Signal
name
Connec-
tor pin
*1

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
