A-33
Appendices
CJ2 CPU Unit Hardware User’s Manual
A-1 Specifications of Basic I/O Units
App
A-1-2 Basic I/O Units

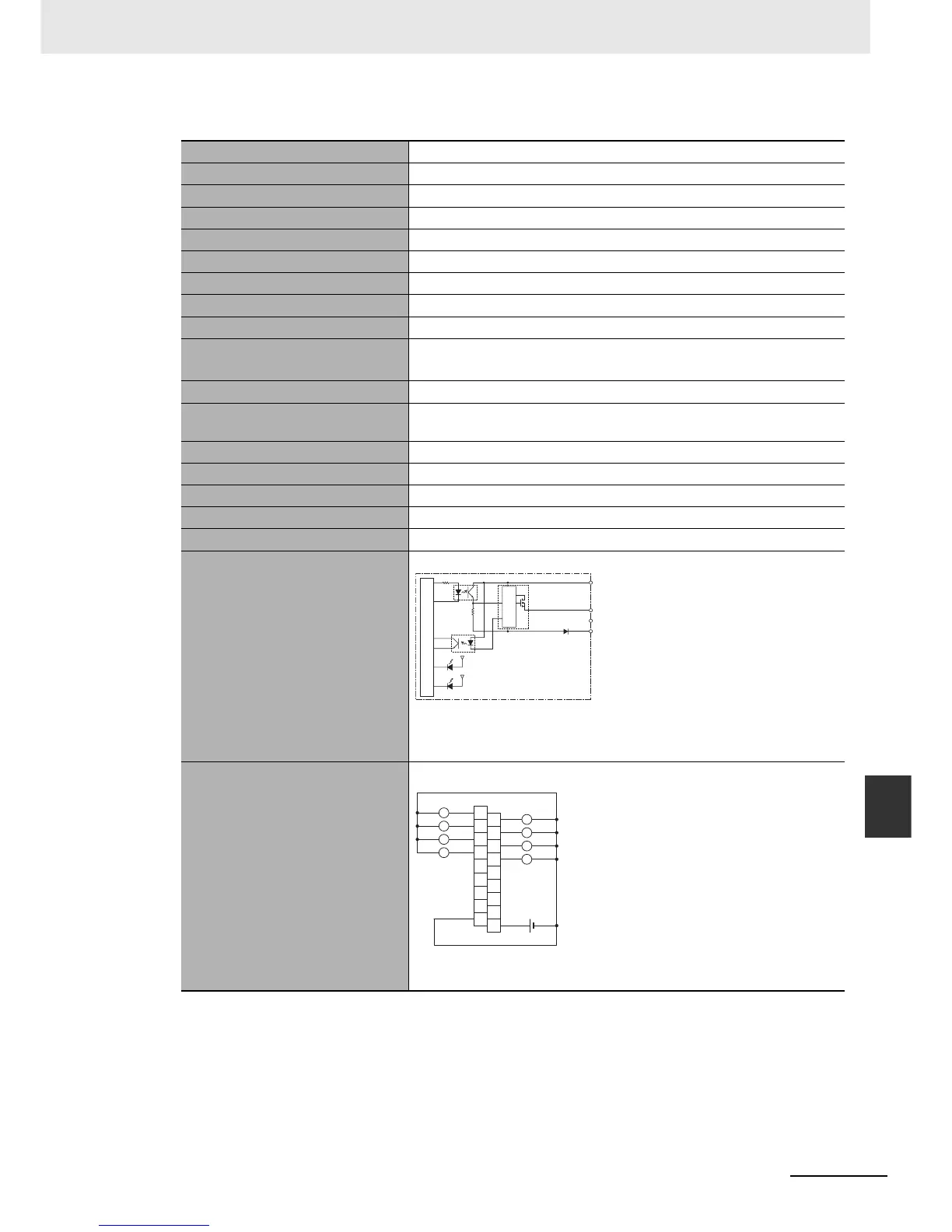

z CJ1W-OD204 Transistor Output Unit (8 Points)
*1 Terminal numbers A0 to A8 and B0 to B8 are used in this manual, but they are not printed on the
Unit.
Note Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O. This Unit is also
treated as a 16-point I/O Unit in the I/O tables.
Name 8-point Transistor Output Unit with Terminal Block (Sourcing Outputs)
Model CJ1W-OD204
Rated Voltage 24 VDC
Operating Load Voltage Range 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 4.0 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit Protection
Detection current: 0.7 to 2.5 A
Automatic restart after error clearance. (Refer to page A-115.)
Insulation Resistance 20 M between the external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for
1 minute at a leakage current of 10 mA max.
Number of Circuits 8 (8 points/common, 1 circuit)
Internal Current Consumption 5 VDC, 100 mA max.
Fuse None
External Power Supply 20.4 to 26.4 VDC, 40 mA min.
Weight 120 g max.
Circuit Configuration
When overcurrent is detected, the ERR indicator will light, and the cor-
responding flag in the Basic I/O Unit Information Area (A050 to A069)
will turn ON.
Terminal Connections
When wiring, pay careful attention to the polarity of the external power
supply. The load may operate incorrectly if the polarity is reversed.
COM (+V)
OUT0
OUT7
0 V
Output indicator
ERR indicator
Internal circuits
to
Short-circuit
protection
Signal
name
B1
OUT1
B2
OUT3
B3
OUT5
B4
OUT7
B5
B6
B7
B8
A1
OUT0
A2
OUT2
A3
OUT4
A4
OUT6
A5
NC
A6
A7
A8
0V
B0
A0
COM (+V)
L
L
L
L
L
L
L
L
NC
NC
NC
NC
NC
NC
NC
24 VDC
Signal
name
Signal
name
Connec-
tor pin
*1
