A-1 Specifications of Basic I/O Units
App
A-1-2 Basic I/O Units

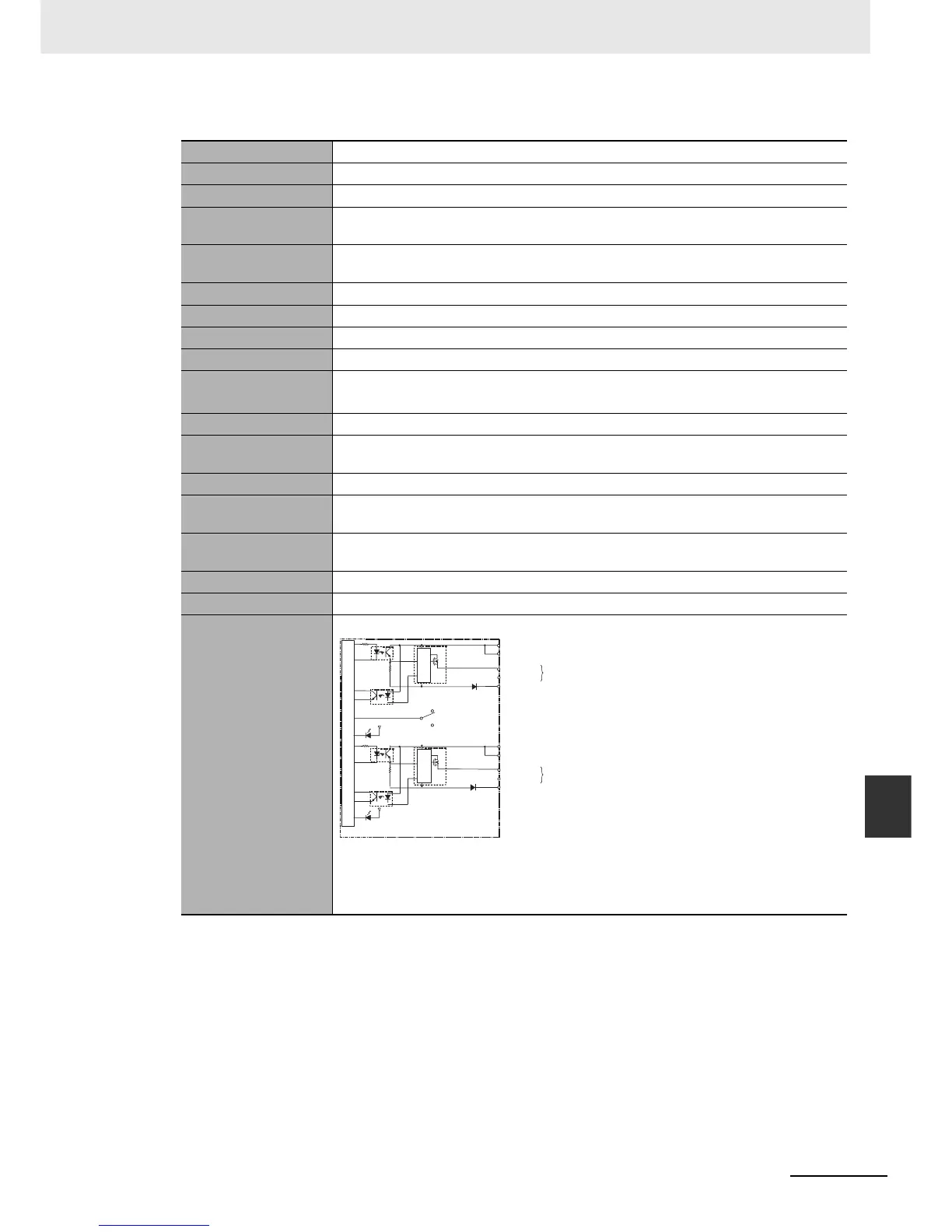

z CJ1W-OD232 Transistor Output Unit (32 Points)
Name 32-point Transistor Output Unit with MIL Connector (Sourcing Outputs)
Model CJ1W-OD232
Rated Voltage 24 VDC
Operating Load Volt-
age Range
20.4 to 26.4 VDC
Maximum Load Cur-
rent
0.5 A/point, 2.0 A/common, 4.0 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit
Protection
Detection current: 0.7 to 2.5 A
Automatic restart after error clearance. (Refer to page A-115.)
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength
1,000 VAC between the external terminals and the GR terminal for 1 minute at a leak-
age current of 10 mA max.
Number of Circuits 32 (16 points/common, 2 circuits)
Internal Current Con-
sumption
5 VDC 150 mA max.
External Power Sup-
ply
20.4 to 26.4 VDC, 70 mA min.
Weight 80 g max.
Accessories None
Circuit Configuration
• When the output current of any output exceeds the detection current, the output for
that point will turn OFF. At the same time, the ERR indicator will light and the corre-
sponding flag (one for each common) in the Basic I/O Unit Information Area (A050 to
A069) will turn ON.
OUT15
OUT0
0 V
0 V
SW
COM0 (+V)
COM0 (+V)
COM1 (+V)
COM1 (+V)
I/O word "m"
I/O word "m+1"
to
OUT15
OUT0
to
Output indicator
Internal circuits
ERR indicator
Short-circuit protection
Short-circuit protection
Allocated
CIO word
Signal
name

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
