Omron CJ2 User Manual

2-19
2 Basic System Configuration and Devices
CJ2 CPU Unit Hardware User’s Manual
2-1 Basic System Configuration
2
2-1-5 Calculating Unit Current Consumption
Example 2: In this example, the following Units are mounted to a CJ-series Expansion Rack with a
CJ1W-PA205R Power Supply Unit.
Additional Information

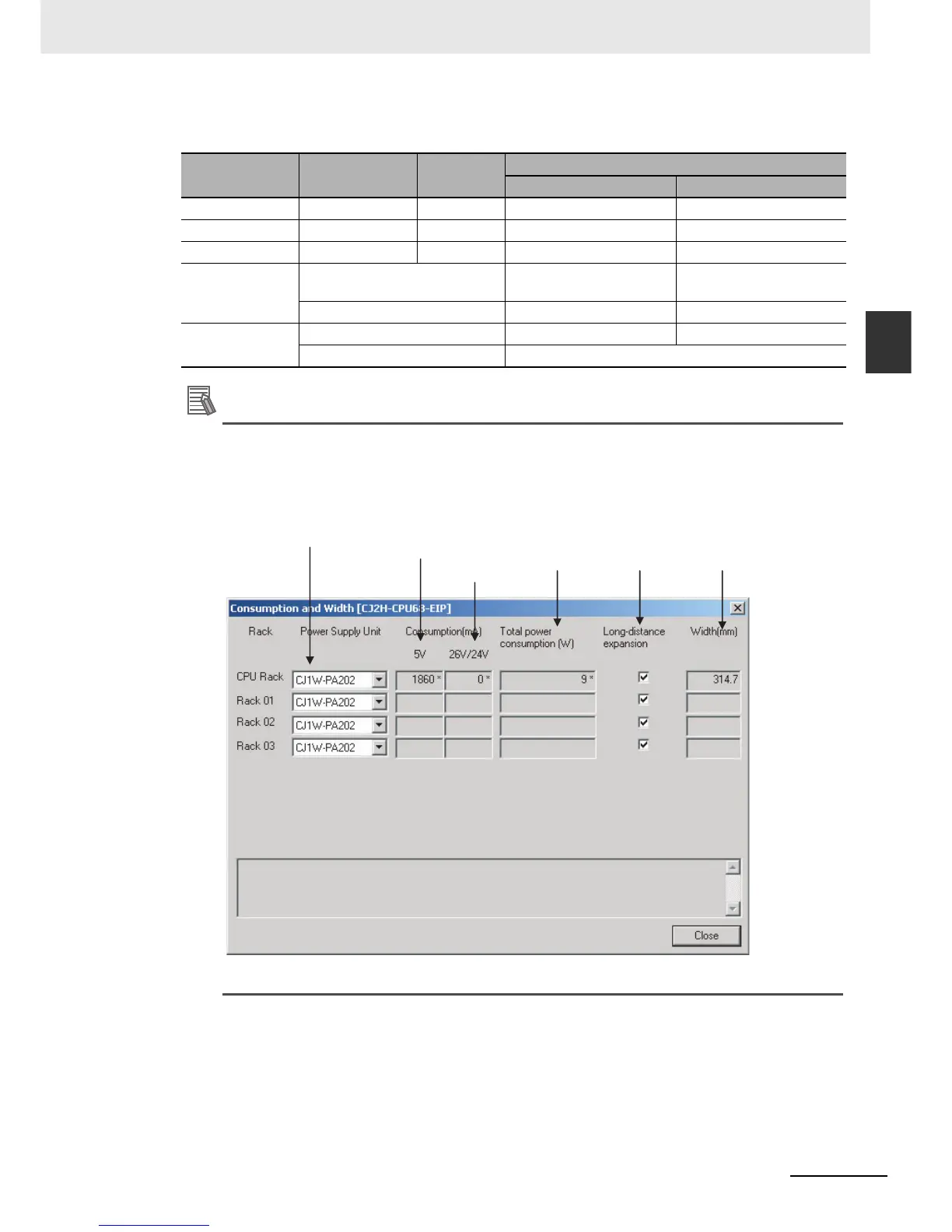

Rack Current Consumption and Width Display
To display the current consumption and width of Units connected in the CPU Rack or Expansion
Rack, select Current Consumption and Width from the Options Menu in the CJ2 CPU Unit I/O
Tabl e W i ndow.
If the capacity of a Power Supply Unit is exceeded, it will be displayed in red.
Unit Model Quantity
Voltage group
5-V 24-V
I/O Interface Unit CJ1W-II101 1 0.130 A ---
Input Unit CJ1W-ID211 2 0.080 A ---
Output Unit CJ1W-OD231 8 0.140 A ---
Current consump-
tion
Calculation 0.130 + 0.080 × 2 + 0.140
× 8
---
Result 1.41 A (≤5.0 A) ---
Power consump-
tion
Calculation 1.41 × 5 V = 7.05 W ---
Result 7.05 W (≤25 W)
Power Supply
Unit model
Current
consumption
at 5 V
Current
consumption
at 26/24 V
Total power
consumption
Indicates
long-distance
expansion
Width

Omron CJ2 Specifications

General

Model	CJ2
Manufacturer	Omron
Type	Programmable Logic Controller (PLC)
CPU Units	Multiple models available (e.g., CJ2M, CJ2H)
Number of I/O Points	Up to 2, 560 points
Communication Ports	Ethernet/IP, EtherCAT, USB, Serial
Expansion	Yes, via I/O Units and Special I/O Units
I/O Control Method	Cyclic Scan, Interrupt
Programming Language	Ladder diagram, structured text, function block diagram, sequential function chart, instruction list
Built-in I/O	Available on some models (e.g., CJ2M)
Ethernet Port	Yes, 1 port (depending on CPU Unit)
Serial Ports	RS-232C, RS-422/485 (configurable)
USB Port	Yes (for programming and monitoring)
Operating Temperature	0°C to 55°C
Storage Temperature	-25 to 70°C
Humidity	10 to 95% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, Amplitude: 0.075 mm, 57 to 150 Hz, Acceleration: 1 G, X, Y, and Z directions, 80 min each
Power Supply Voltage	24 VDC or 100 to 240 VAC (depending on CPU Unit)
