Omron G5 Series User Manual

4 System Design
4 - 44
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual

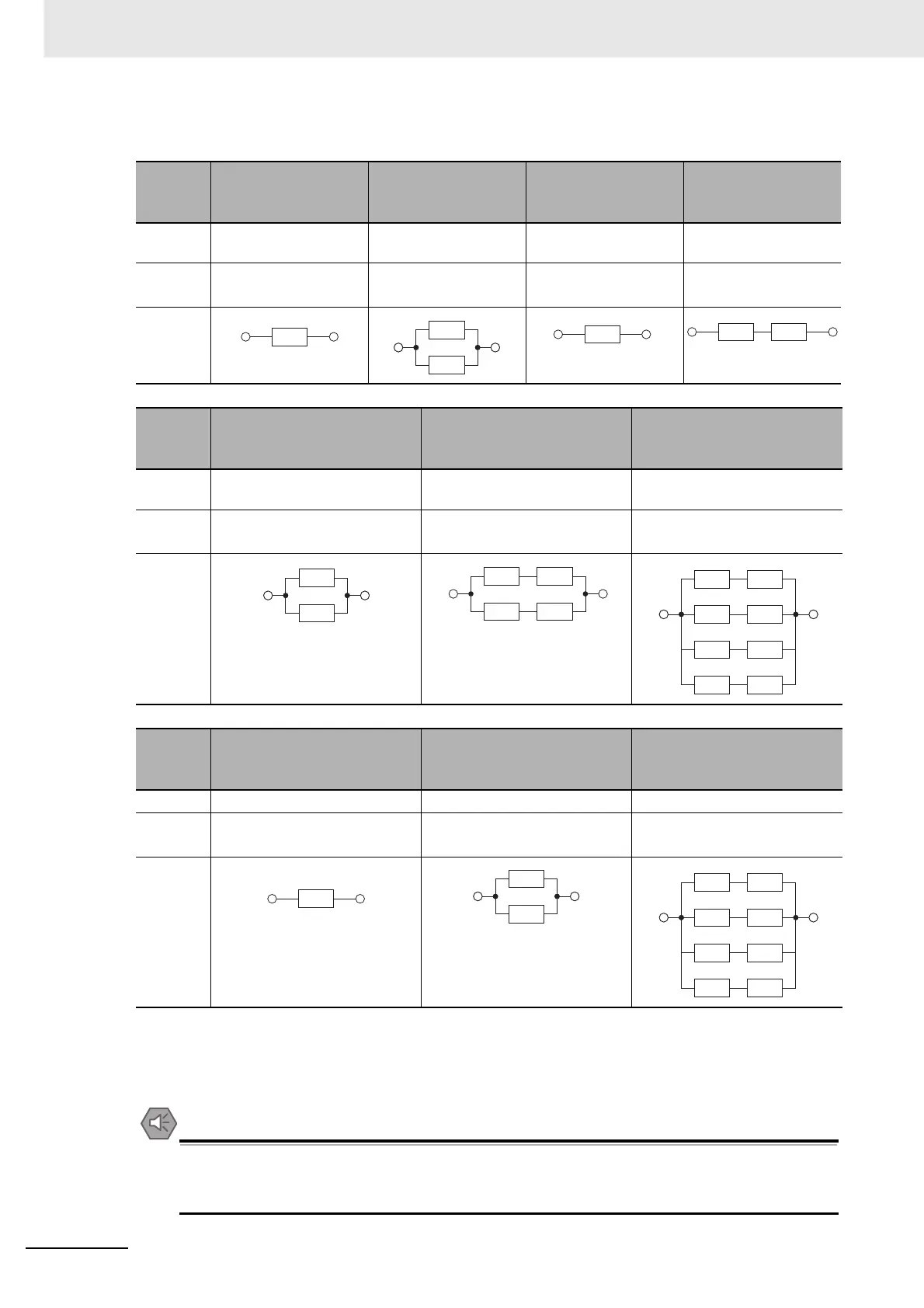

 Combining External Regeneration Resistors
*1 Select a combination that has an absorption capacity greater than the average regeneration power (Pr).
*2 Do not use a combination with resistance values lower than the allowable minimum regeneration resistance of
each drive. For information on the allowable minimum regeneration resistance, refer to 4-4-2 Servo Drive
Regeneration Absorption Capacity on page 4-41.
Precautions for Safe Use
Surface temperatures on regeneration resistance can reach 200°C.
Do not place objects that tend to catch fire nearby. To prevent people from touching them, install
a cover that enables heat dissipation.
Regeneration
absorption
capacity
*1
20 W 40 W 70 W 140 W
Model R88A-RR08050S
R88A-RR080100S
R88A-RR08050S
R88A-RR080100S
R88A-RR22047S
R88A-RR22047S1
R88A-RR22047S
R88A-RR22047S1
Resistance
value
*2
50 Ω /100 Ω 25 Ω /50 Ω 47 Ω 94 Ω
Connection
method
Regeneration
absorption
capacity
*1
140 W 280 W 560 W
Model R88A-RR22047S
R88A-RR22047S1
R88A-RR22047S
R88A-RR22047S1
R88A-RR22047S
R88A-RR22047S1
Resistance
value
*2
23.5 Ω 47 Ω 23.5 Ω
Connection
method
Regeneration
absorption
capacity
*1
180 W 360 W 1,440 W
Model R88A-RR50020S R88A-RR50020S R88A-RR50020S
Resistance
value
*2
20 Ω 10 Ω 10 Ω
Connection
method
R
R
R
R
R
R
R R
R
R
R
R
R R
R R
R R
R R
R R
R R
R R
R R
R R
R R
R
R
R
R
R
R R
R R
R R
R R
R R
R R
R R
R R
