2 Models and External Dimensions
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual
2-4 External and Mounting Dimensions
2
2-4-1 Servo Drive Dimensions

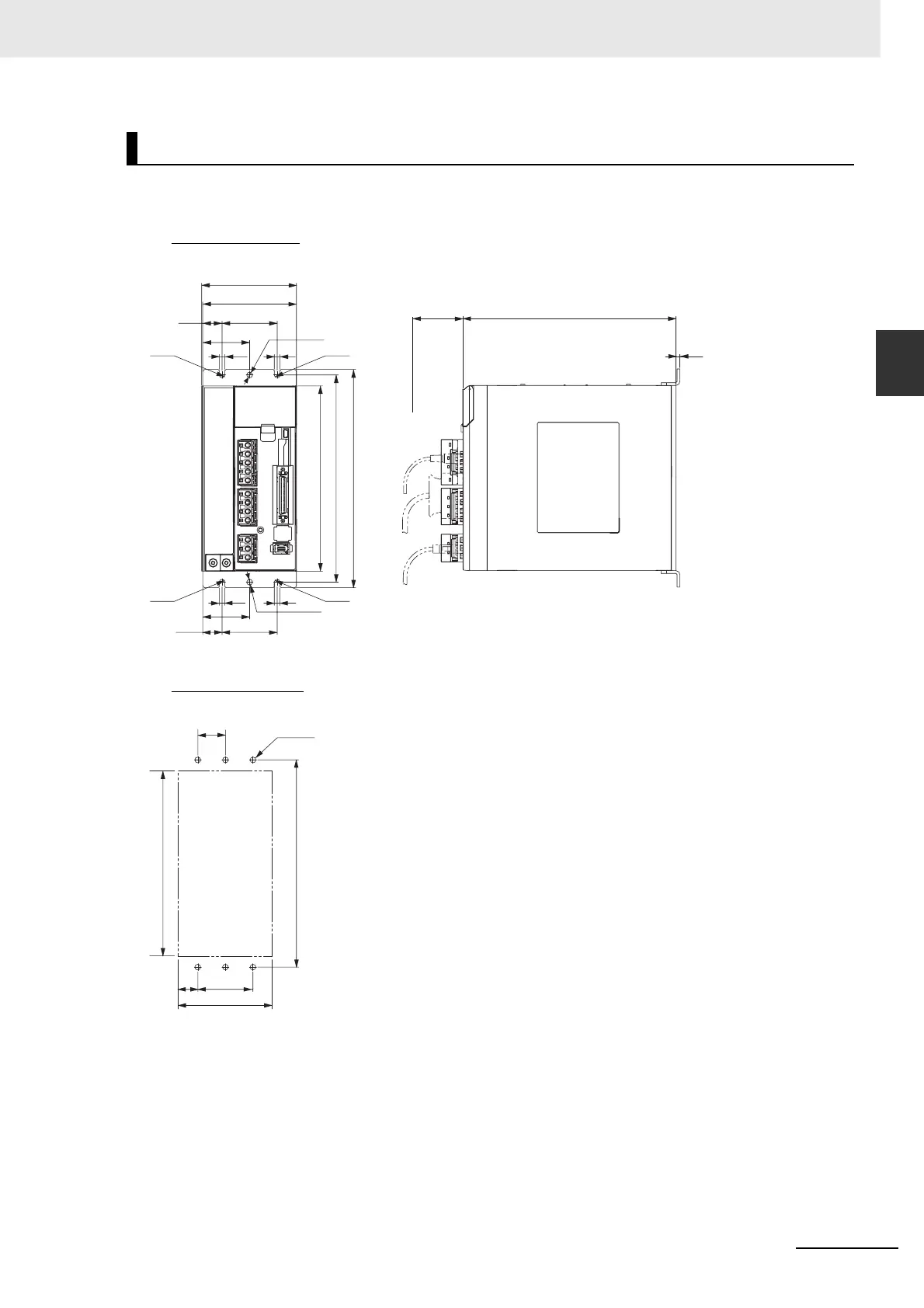

 Wall Mounting
3-phase 200 VAC: R88D-KP20H (2 kW)
86
85
5017.5
42.5
5.2
5.2
φ5.2
R2.6 R2.6
198 188 168
17.5
50
5.25.2
42.5
φ5.2
R2.6
R2.6
193.5
3.5
70
External Dimensions
25
188
168
86
50
18.5
6-M4
Mounting dimensions
