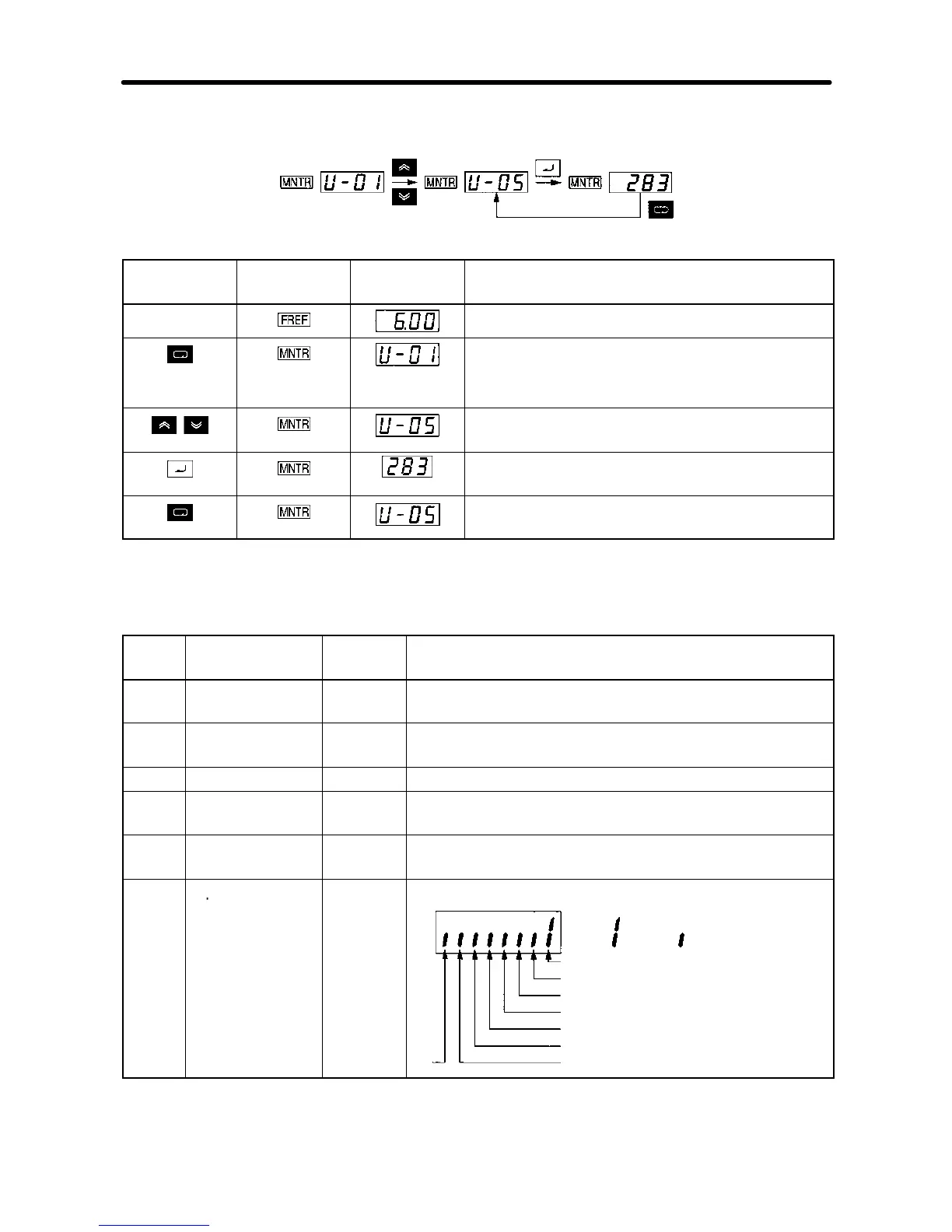

H Example of Multi-function Display
Key
sequence
Indicator Display Explanation
Power On
Press the Mode Key repeatedly until the
MNTR indicator is lit.
U01 will be displayed.
Use the Increment or Decrement Key to
select the monitor item to be displayed.
Press the Enter Key so that the data of the
selected monitor item will be displayed.
The monitor item will appear again by
pressing the Mode Key.
D Status Monitor
Item Display Display
unit
Function
U-01 Frequency
reference
Hz (see
note 1)
Monitors the frequency reference. (Same as FREF)
U-02 Output
frequency
Hz (see
note 1)
Monitors the output frequency. (Same as FOUT)
U-03 Output current A Monitors the output current. (Same as IOUT)
U-04 Output voltage V Monitors the internal output voltage reference value
of the Inverter.
U-05 DC bus voltage V Monitors the DC voltage of the internal main circuit of
the Inverter.
U-06 Input terminal
s
t
a
t
u
s
---
Shows the ON/OFF status of inputs.
U
-
0
6
I
n
p
u
t
t
e
r
m
i
n
a
l
status
-
-
-
: ON : OFF
Not
used
Terminal S1: Multi-function input 1
Terminal S2: Multi-function input 2
Terminal S3: Multi-function input 3
Terminal S4: Multi-function input 4
Terminal S5: Multi-function input 5
Terminal S6: Multi-function input 6
Terminal S7: Multi-function input 7
