Connecting to the CX-Programmer Version 2.1 or Lower Section 3-8
72

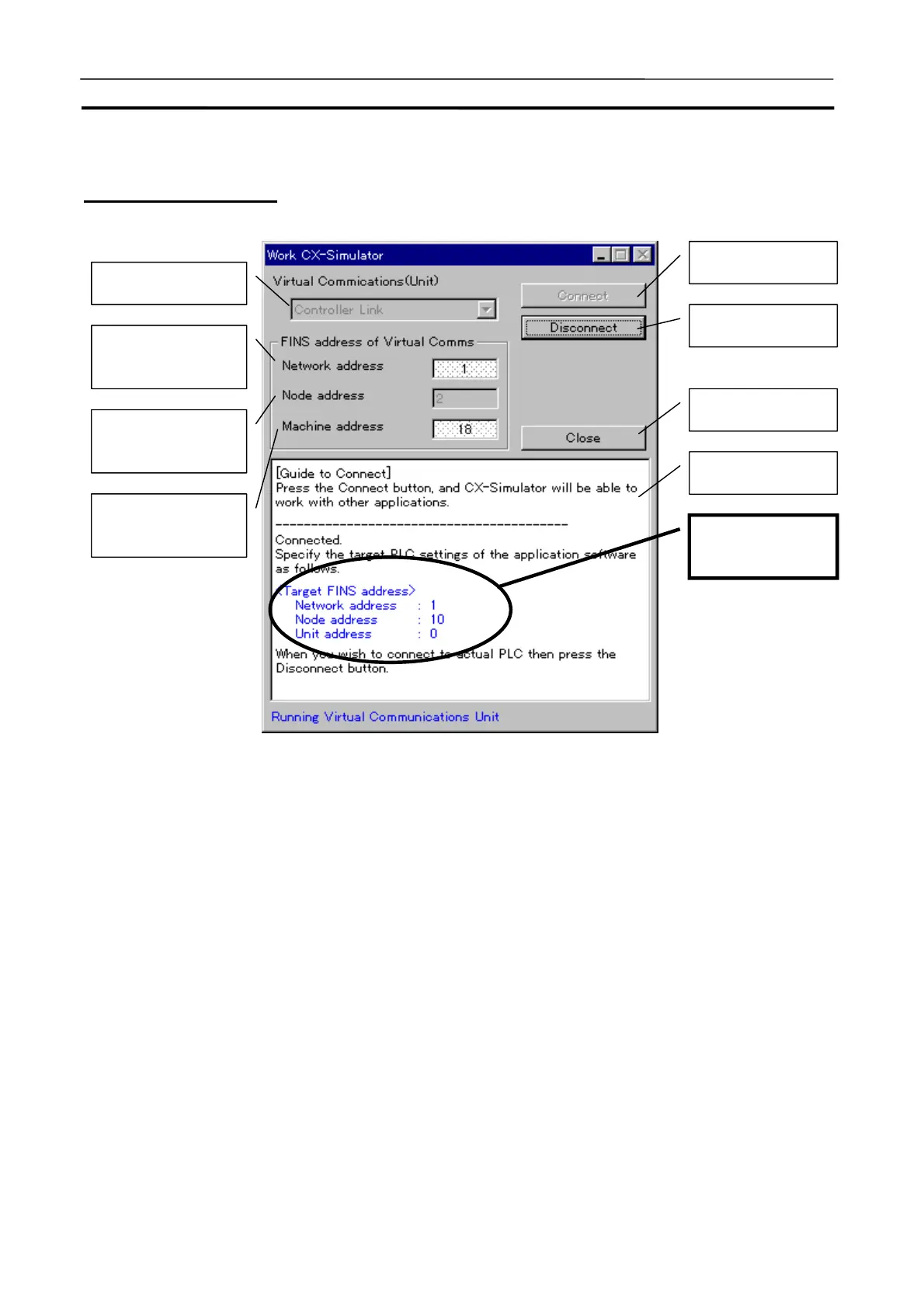

3-8-1 Work CX-Simulator Window
Names and Functions
• Network address Select a FinsGateway Communications Unit for
connecting the Ladder Engine of the
CX-Simulator with the CX-Programmer.
• Node address Display the FINS Address for FinsGateway
Communications Unit selected by the target
Communications Unit. Setting only Node ad-
dress is also possible.
• Machine address Start the FinsGateway Communications Unit to
connect the Ladder Engine to the
CX-Programmer.
Connecting to the CX-Simulator will bring the
CX-Simulator to the following.
• The FinsGateway Communications Unit is
started.
• The routing tables for FinsGateway and the
Ladder Engine are overwritten.
The Serial Communications Server is started
following the Serial comm. Settings in the
[Serial Communications Settings] window.
Communications path
(Unit)
Communications path
(Unit)
Network address
Communications path
(Unit)
Node address
Communications path
(Unit)
Machine address
Connect to the
CX-Simulator
Disconnect the
CX-Simulator
Close
Guide to Connect
CX-Simulator
FINS address
To Next Page
