8-5 Checking the Result
8-5-1 Checking by Time Chart Monitor of the CX-Programmer

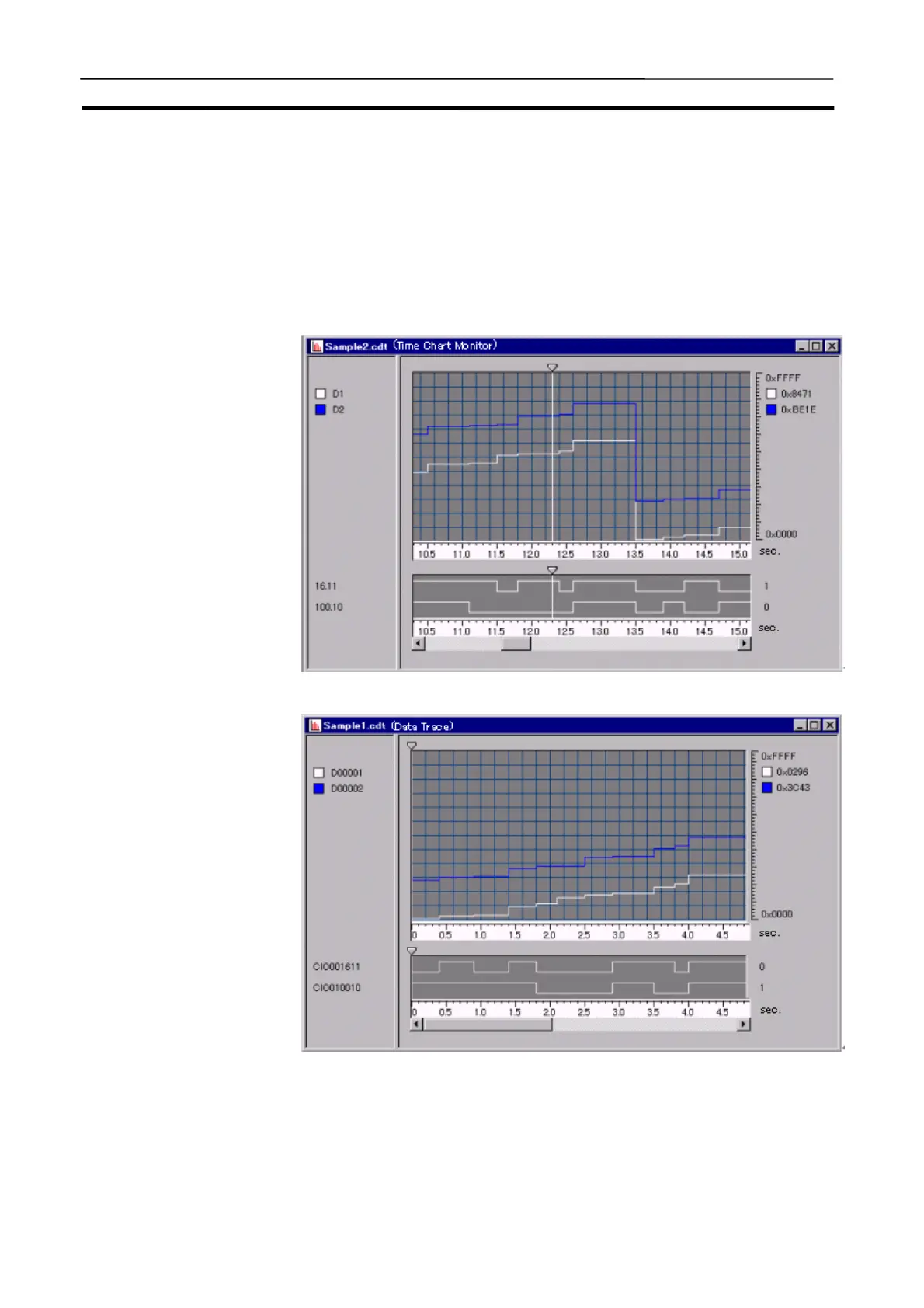

The results from virtual external inputs can be checked by the time chart
monitor or the data trace of the CX-Programmer. Displaying the data of virtual
external inputs and its results simultaneously allows to confirm the operation
results and timing of the ladder program.
Note
Refer to the Data Trace/Time Chart Monitoring of CHAPTER 4 - Reference of
PART 1: CX-Programmer in the CX-Programmer Operation Manual (W446)
for how to operate the data trace and time chart monitoring.
