Debug Console Window Section 3-9
84
3-9-5 [Replay] Menu
This section explains how to operate the sub-menu of the [Replay] menu.
[IO Condition]

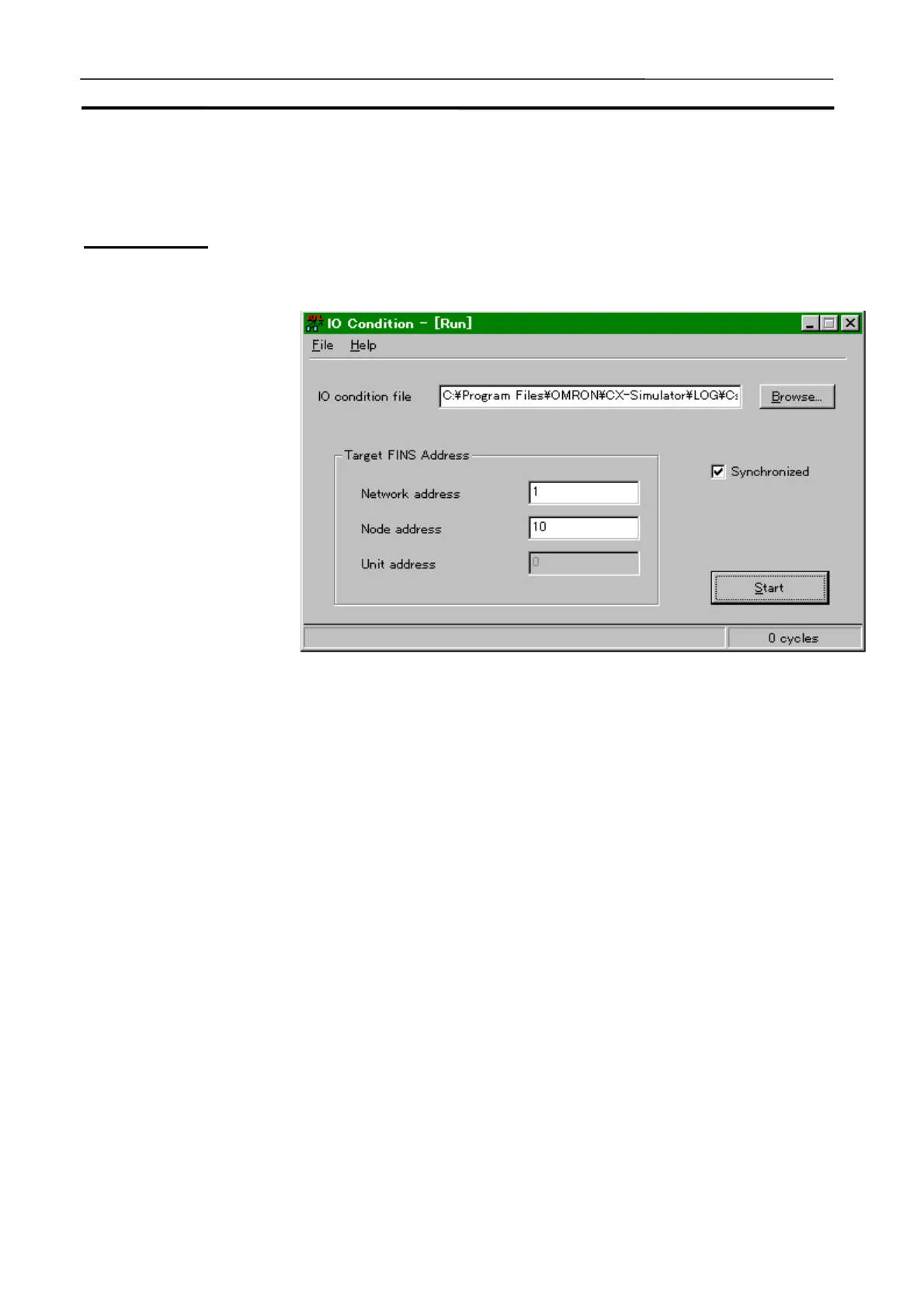

Start the IO Condition tool to display the [Run] window (the startup window for
this tool).
Note
Refer to 8 Debugging Using Virtual External Inputs for the details of the I/O
Condition tool.
• IO condition file Input the name of the execution file for I/O Condition.
Browsing files with the Browse button is also possible.
• Target FINS Ad-
dress
Input the destination FINS address for monitoring I/O
Condition. The FINS address for the Ladder Engine is
displayed as the initial value. Changing it during the
execution is not possible.
• Synchronized Specify whether or not to perform the synchronous
process. When in the process, the conditional moni-
toring will be performed to the Ladder Engine in the unit
of a single scan. When in the asynchronous, at a fixed
interval.
• Start/Stop button Pressing the Start button will monitor I/O Condition.
The button works as Stop button during execution.
When starting, the message box is displayed at the
destination. The process will be started after confirma-
tion.
• Status Display Display the process status on the Status bar.
To Next Page
