Starting and Exiting from CX-Simulator Menus Section 3-3
43

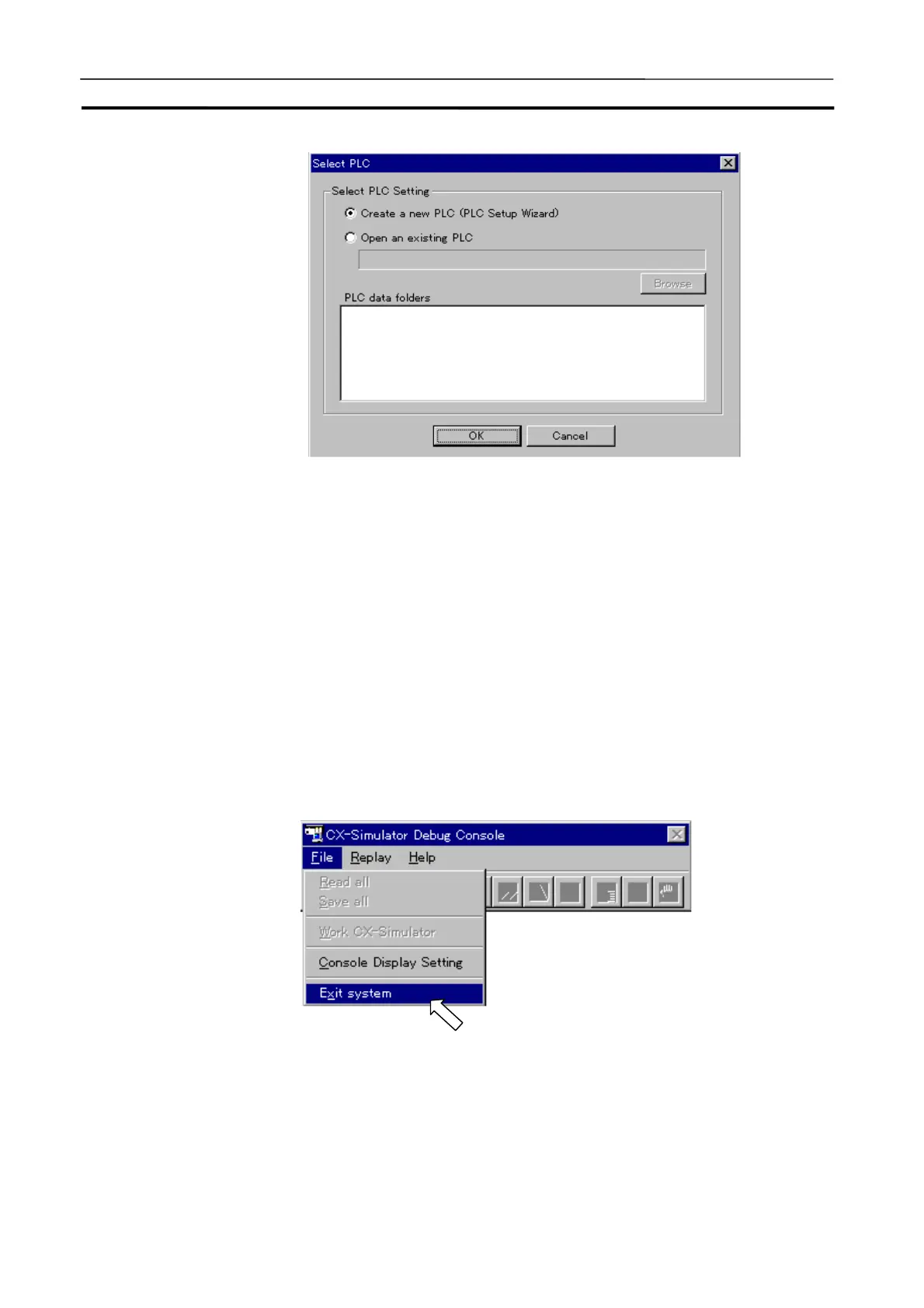

4. Selecting [Create a new PLC] allows to input necessary parameters for the
simulation using the PLC setup wizard. Selecting [Open an existing PLC]
enables to simulate the PLC with the parameters input so far.
5. When completing inputting parameters, the Ladder Engine will be started
up and each window for the Debugger's connection to the CX-Simulator,
the Debug Console, and the System Status Setting will be displayed.
3-3-2 Exiting CX-Simulator
The following shows how to exit the CX-Simulator.
Select [Exit system] from [File] of the Debug Console to exit the CX-Simulator.
Note
Refer to [Exit system] of 3-9 Debug Console Window for the details of the
operation when [Exit system].
