System Status Setting Window Section 3-7
65
Note
Refer to 3-5 Creating a New PLC for the operation in the [Register PLC Unit]
window.

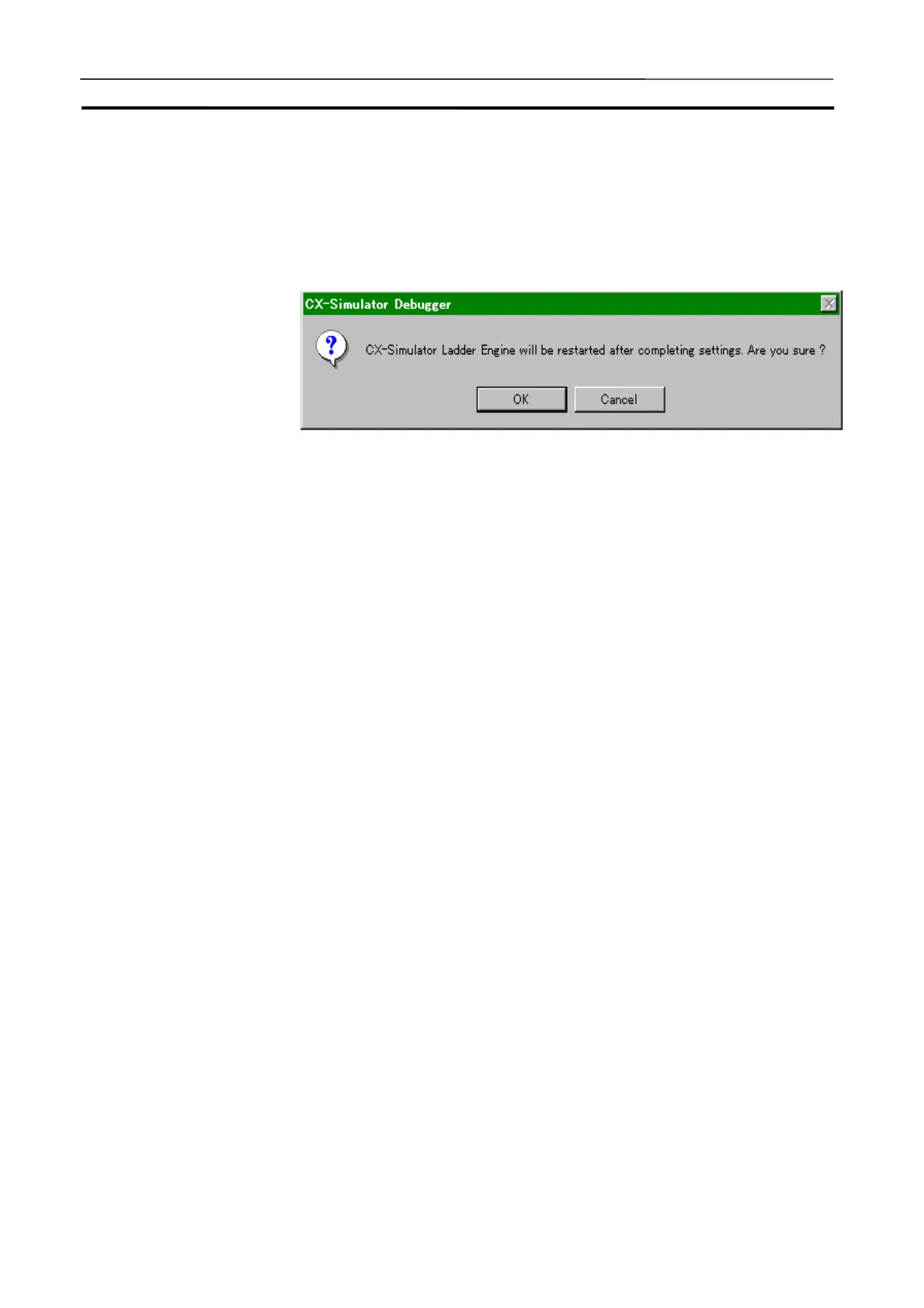

2. Click the [OK] button when the unit registration is completed. Changing the
Unit configuration will display the Restart message of the Ladder Engine.
3. Click the [OK] button to restart. Clicking the [Cancel] button will return to
the [Register PLC Unit] window.
Note
Restarting the Ladder Engine will clear the I/O memory areas according to the
PLC Setup and read the Autoexec file automatically.
3-7-4 UM Settings
The [UM Settings] window allows to set for the UM to store a ladder diagram.
Unlike an actual PLC, the CX-Simulator has two program areas: (1) the pro-
gram area for applications (UM1) where the ladder diagram to be simulated is
stored and (2) the one for debugging (UM2) where the ladder diagram gen-
erating virtual external outputs.
