Debug Console Window Section 3-9
98
Names and Functions
Name Function
Break conditional equation dis-
play
Display the conditions selected in AND LIST and OR
LIST as the I/O break conditional equation.
[Update] button Update the I/O break condition setting expression in
the window with the present configuration of AND
LIST and OR LIST.
AND item selection Select the conditions registered in AND LIST with
check boxes.
AND item add Add conditions set in [Register I/O Break Condition] to
AND LIST.
AND LIST
AND item delete Delete the selected conditions in AND LIST.
OR item select Select conditions registered in OR LIST with check
boxes.
OR item add Add the conditions set in [Register I/O Break Condi-
tion] to OR LIST.
OR LIST
OR item delete Delete the selected conditions in OR LIST.
Condition settings read Read conditions saved in the I/O break condition
Setting file.
Condition setting save Save the present settings in the I/O break condition
Setting file.
[OK] button Set the present I/O break condition and exit the win-
dow.
[Cancel] button Exit the window without setting the present condition.

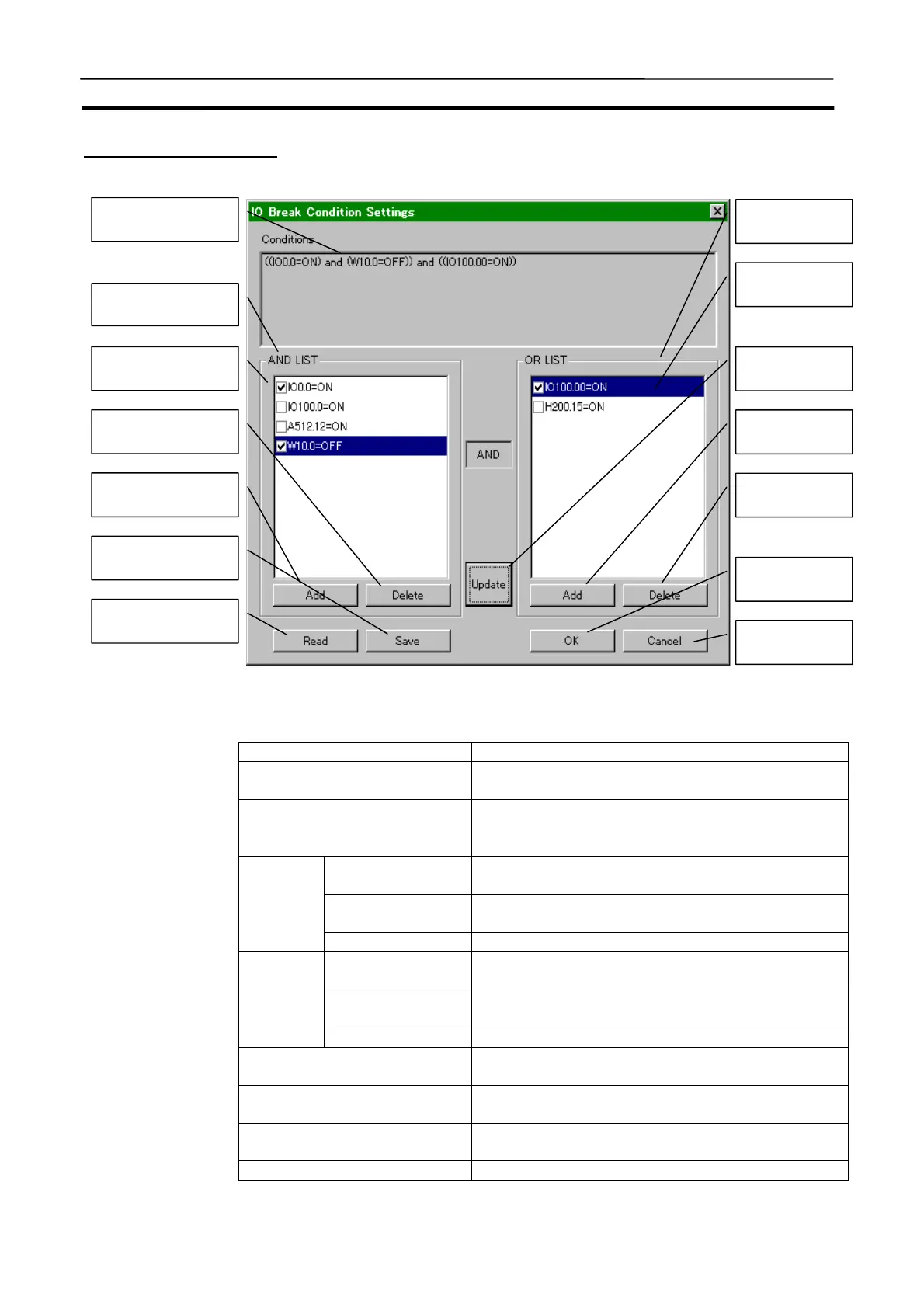

Break conditional
equation display
AND LIST
AND item selection
AND item delete
AND item add
Condition setting
save
Condition settings
read
OR LIST
OR item select
[Update] button
OR item add
OR item delete
[OK] button
[Cancel] button
