Omron ZEN User Manual

28
Nomenclature and Basic Operation Section 1-3

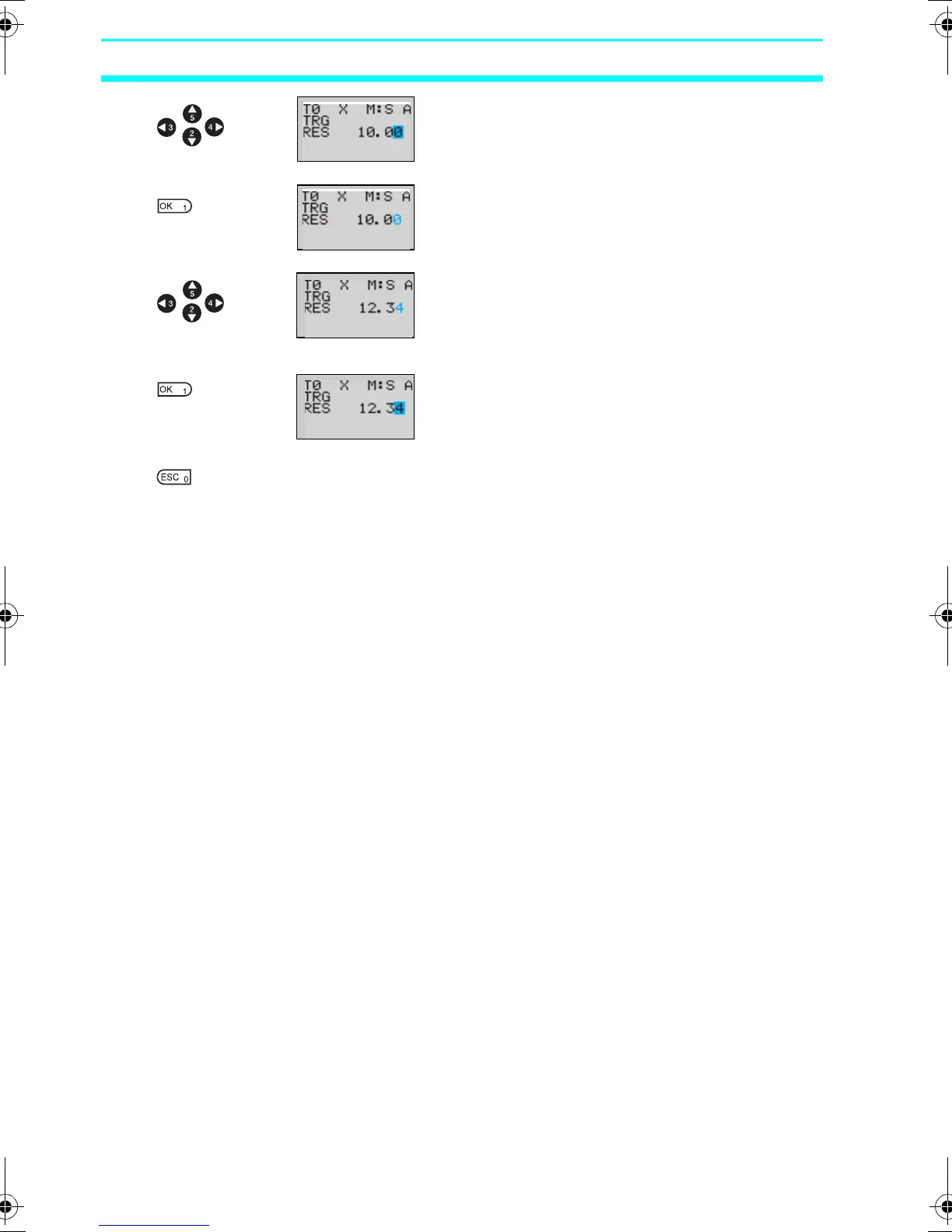

Use the Left/Right or Up/Down Buttons to
move the highlighted cursor to the parameter
to be set.
Press the OK Button to confirm the set
position. The cursor will change to a flashing
cursor.
Use the Left/Right Buttons to select the digit
to be set.
Use the Up/Down Buttons to change the
value of each digit.
Press the OK Button to confirm the setting.
Press the ESC Button to complete the
settings.
Note If the ESC Button is pressed while ladder program or parameter
settings are being input, the input to that point will be canceled
and the settings will return to the original settings.
