Omron ZEN User Manual

63
Creating Ladder Programs Section 3-3

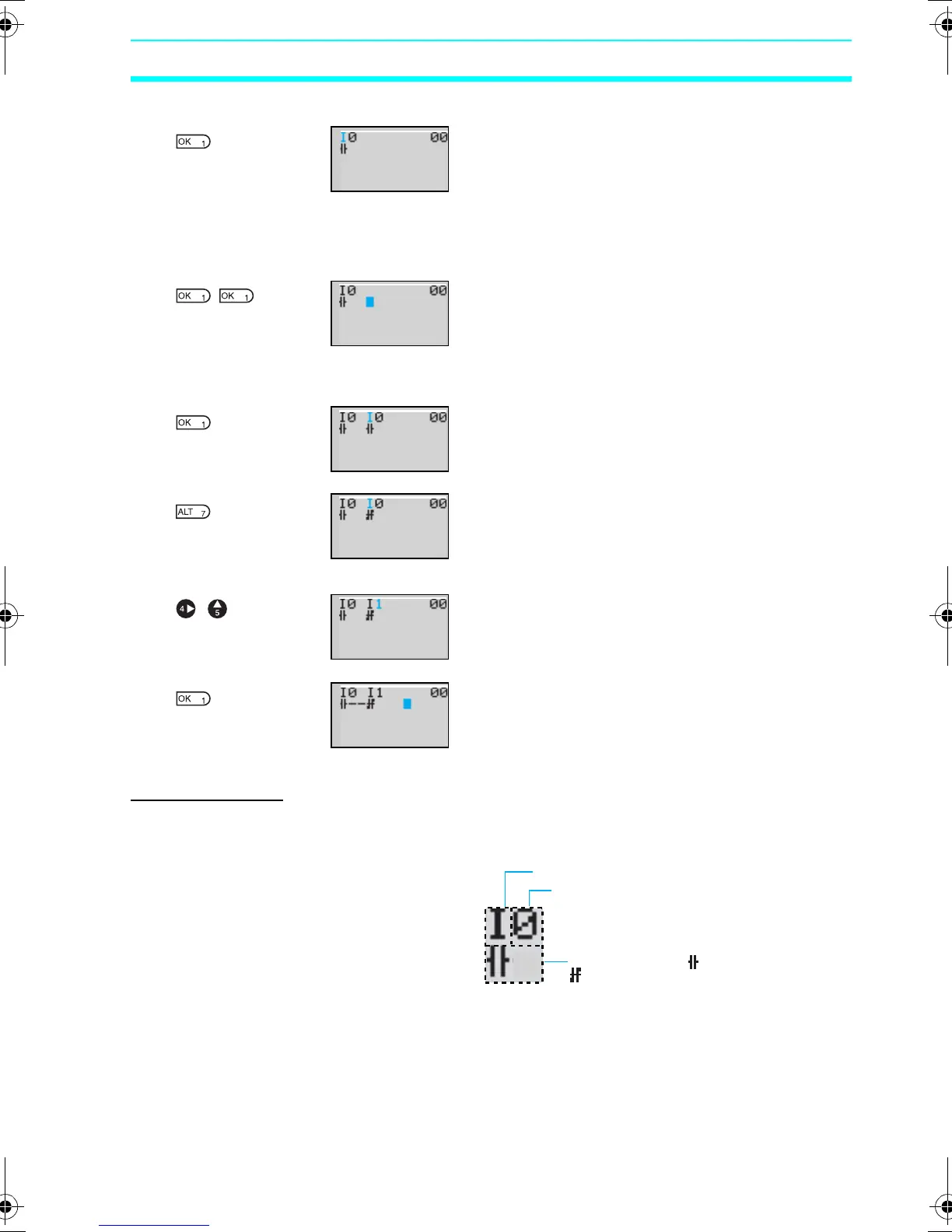

3-3-3-1 Writing an Input for I0
Press the OK Button to display the initial
write setting (N.O input I0) and move the
flashing cursor to the bit type I position. Use
the Up/Down Buttons to select the bit type.
Use the Right Button to move the flashing
cursor to the 0 position and then use the Up/
Down Buttons to select the bit address.
Press the OK Button twice to complete the
write operation for input I0. The highlighted
cursor will move the next input position.
3-3-3-2 Writing Serial Input I1
Press the OK Button to display the N.O. input
and input I0 again.
Press the ALT Button to switch to a N.C.
input.
(Press the ALT Button again to switch back
to a N.O. input.)
Use the Right Button to move the flashing
cursor to the bit address position and use the
Up Button to change the bit address to 1.
Press the OK Button to move the highlighted
cursor to the next input position. A
connection will automatically be created
between input I0 and the next input.
Writing Inputs
Input Symbol Configuration
▼
▼
▼
▼
▼
▼
Bit type
Bit number
Input symbols ( N.O. input;
N.C. input.)
Z211-E1-03.book Page 63 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
