Configure RAID in UEFI Boot Mode

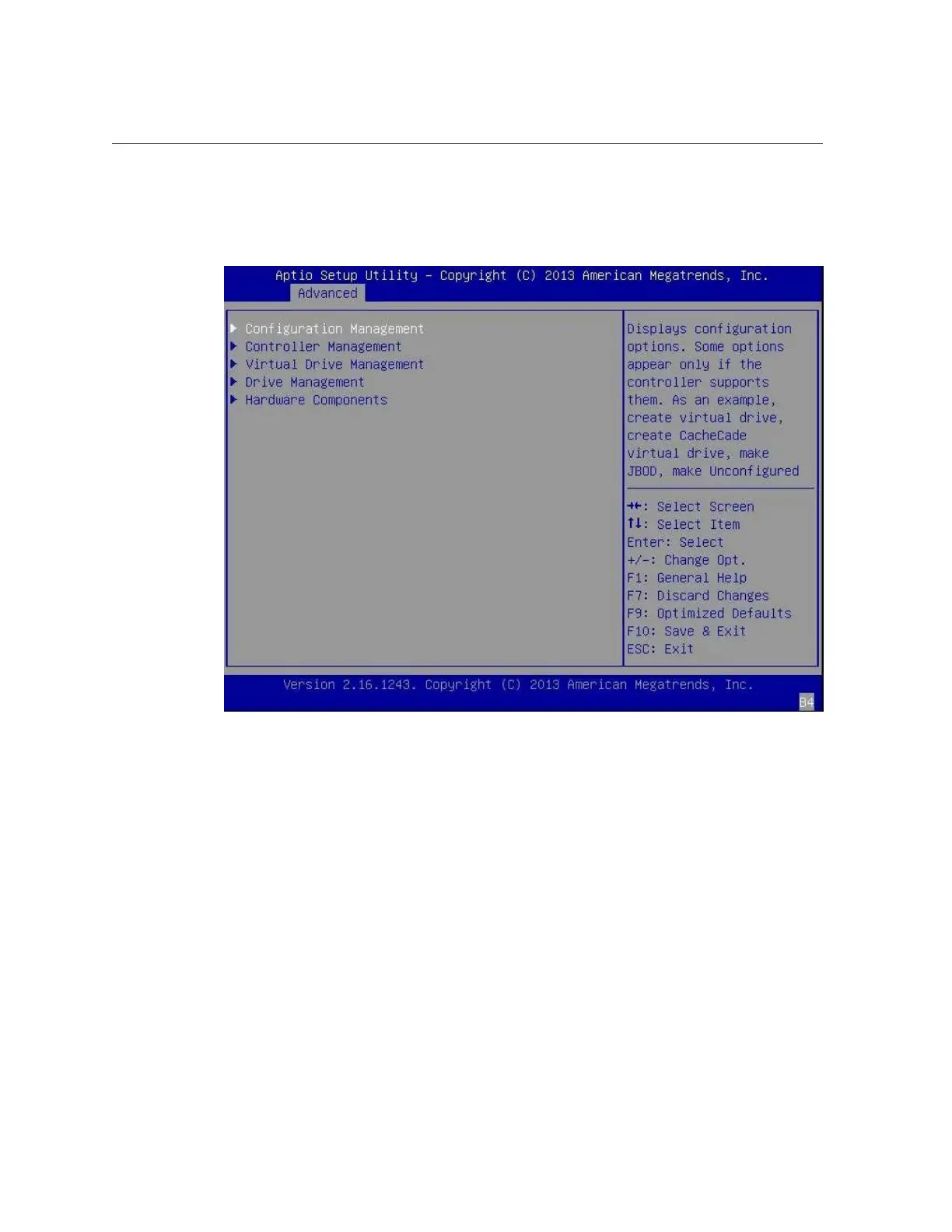

Select Configuration Management, and then press Enter.

Select Create Virtual Drive – Advanced, and then press Enter.

Configuring Storage Drives for Operating System Installation 123
