Oracle X5-2 User Manual

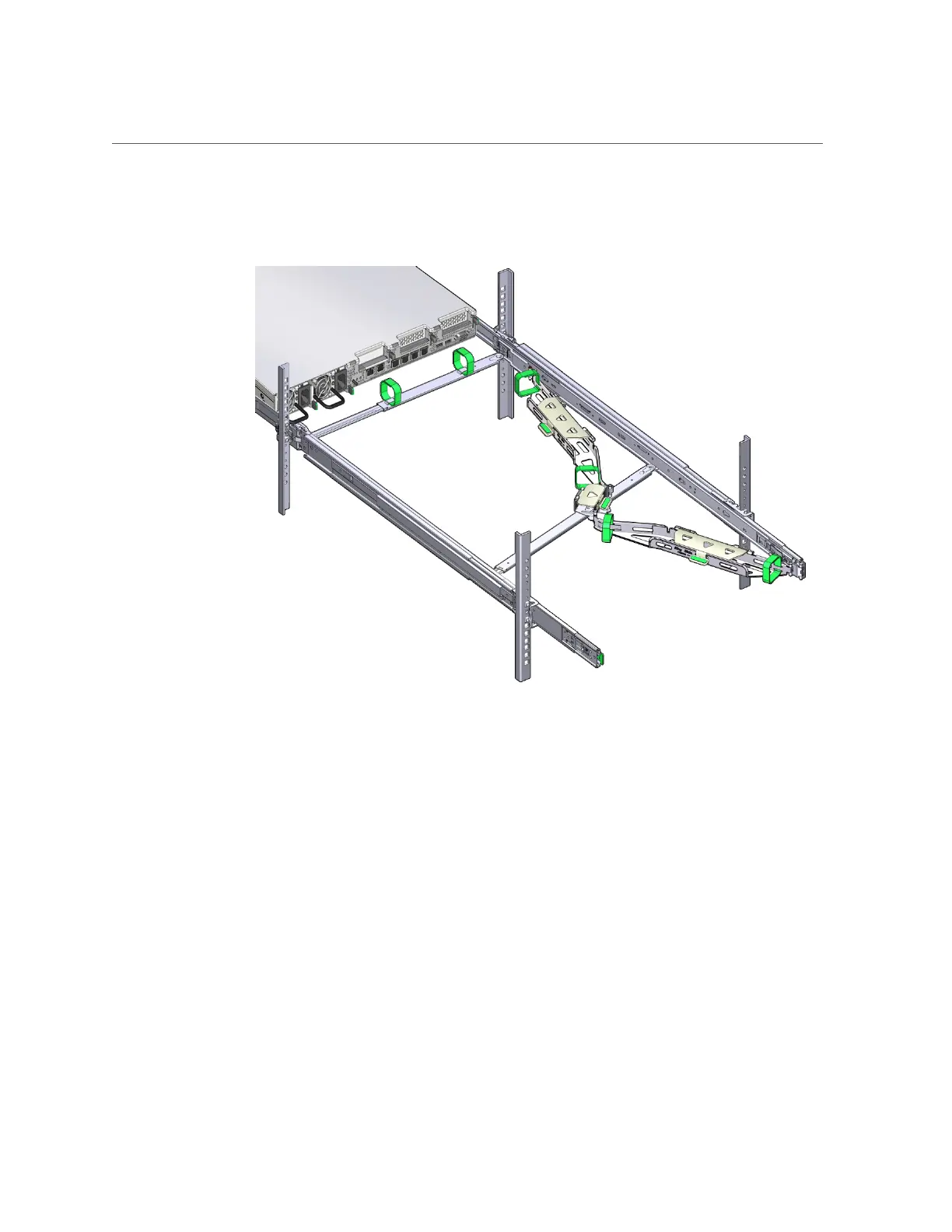

Install the Cable Management Arm
d.
Verify that the CMA extends fully with the slide-rails.
14.
To return the server to the rack:
a.
Simultaneously pull and hold the two green release tabs (one on each side
of the server) toward the front of the server while you push the server into
the rack. As you push the server into the rack, verify that the CMA retracts
without binding.
Installing the Server Into a Rack 67

Oracle X5-2 Specifications

General

Number of Processors	2
Cores per Processor	Up to 18
Form Factor	2U Rackmount
Processor	Intel Xeon E5-2600 v3
Memory	Up to 768 GB DDR4
Power Supply	1200W
Operating System	Oracle Linux, Oracle Solaris
Network	4 x 10Gb Ethernet ports
