Installing a ZS9-2 Cable Management Arm
1.
Unpack the CMA and identify its components.

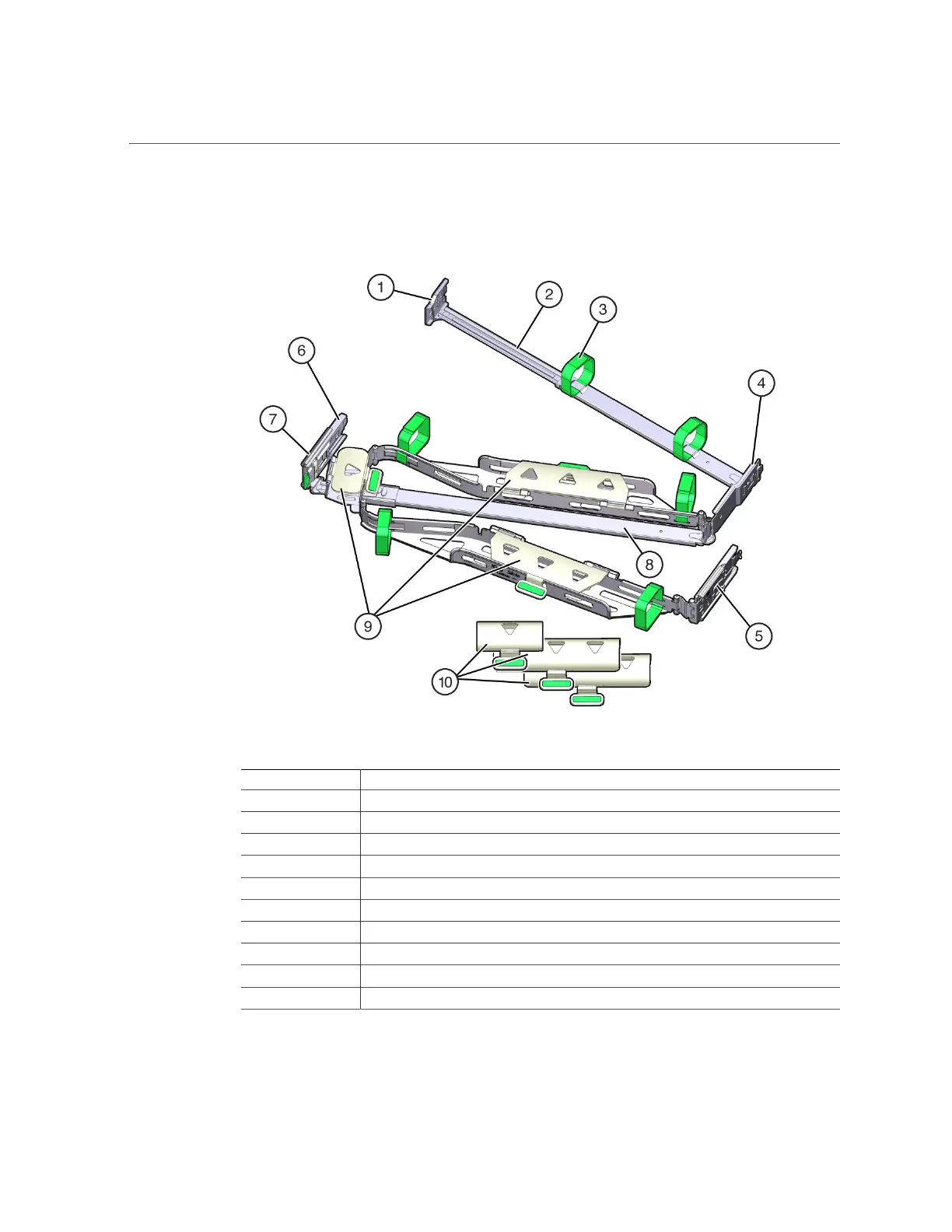

Callout Description
1 Connector A
2 Front slide bar
3 Velcro straps (6)
4 Connector B
5 Connector C
6 Connector D
7 Slide-rail latching bracket (used with connector D)
8 Back slide bar
9 Controller flat cable covers
10 Controller round cable covers
