Installing a 7x20 Cable Management Arm

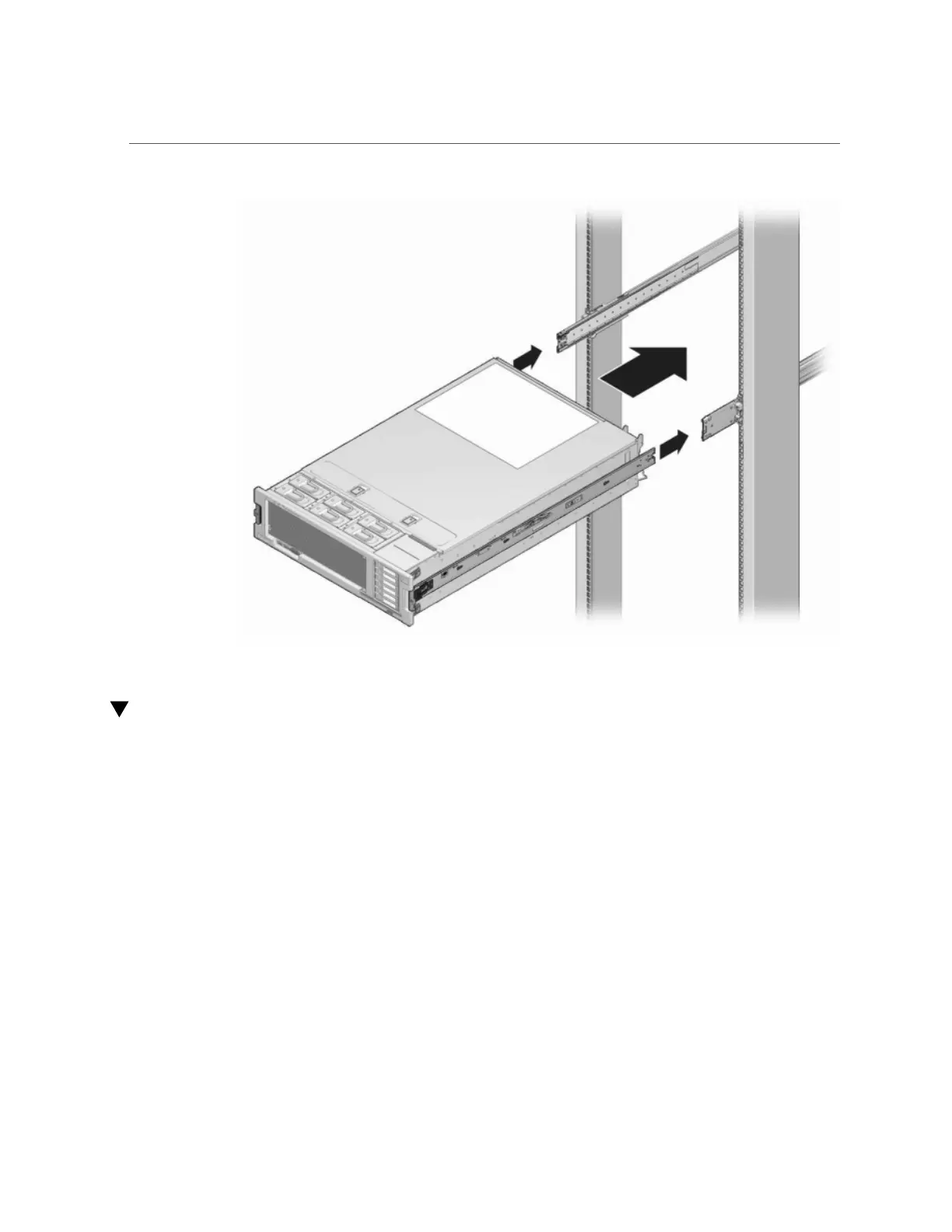

Installing a 7x20 Cable Management Arm
Use the following procedure to install the optional cable management arm (CMA) for a 7x20
controller.
This procedure is completed from the back of the equipment rack.
Before You Begin
Unpack the CMA and identify its components.
To prepare for installing the optional cable management arm (CMA), follow these guidelines:
■
Route cluster cables, long-term host cables (including InfiniBand, Fibre Channel, and
Ethernet Cables) and up to 12 disk shelf SAS cables through the CMA.
■
Do not route short SAS daisy chain cables through the CMA. Do not route an excess of
cables such that the CMA clamps bow or appear structurally unfit to support the weight.
212 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
