Overview of 7120 Controller
Figure Legend
5 HDD 0 6 HDD 1 7 HDD 2 8 HDD or SSD 3
9 HDD 4 10 HDD 5 11 HDD 6 12 HDD 7
13 HDD 8 14 HDD 9 15 HDD 10 16 HDD 11
17 Drive map
7120 Rear Panel Components
The following figure and legend show the rear panel.
Note - Optional Sun Dual Port 40Gb/sec 4x Infiniband QDR HCAdapter PCIe cards (375-3606-
01) may be located in slots 1, 2, or 3. 375-3606-01 HCA expansion cards are not supported
in the 10Gb network configurations. For more information about PCIe cards, see “7120 PCIe
Options” in Oracle ZFS Storage Appliance Customer Service Manual.

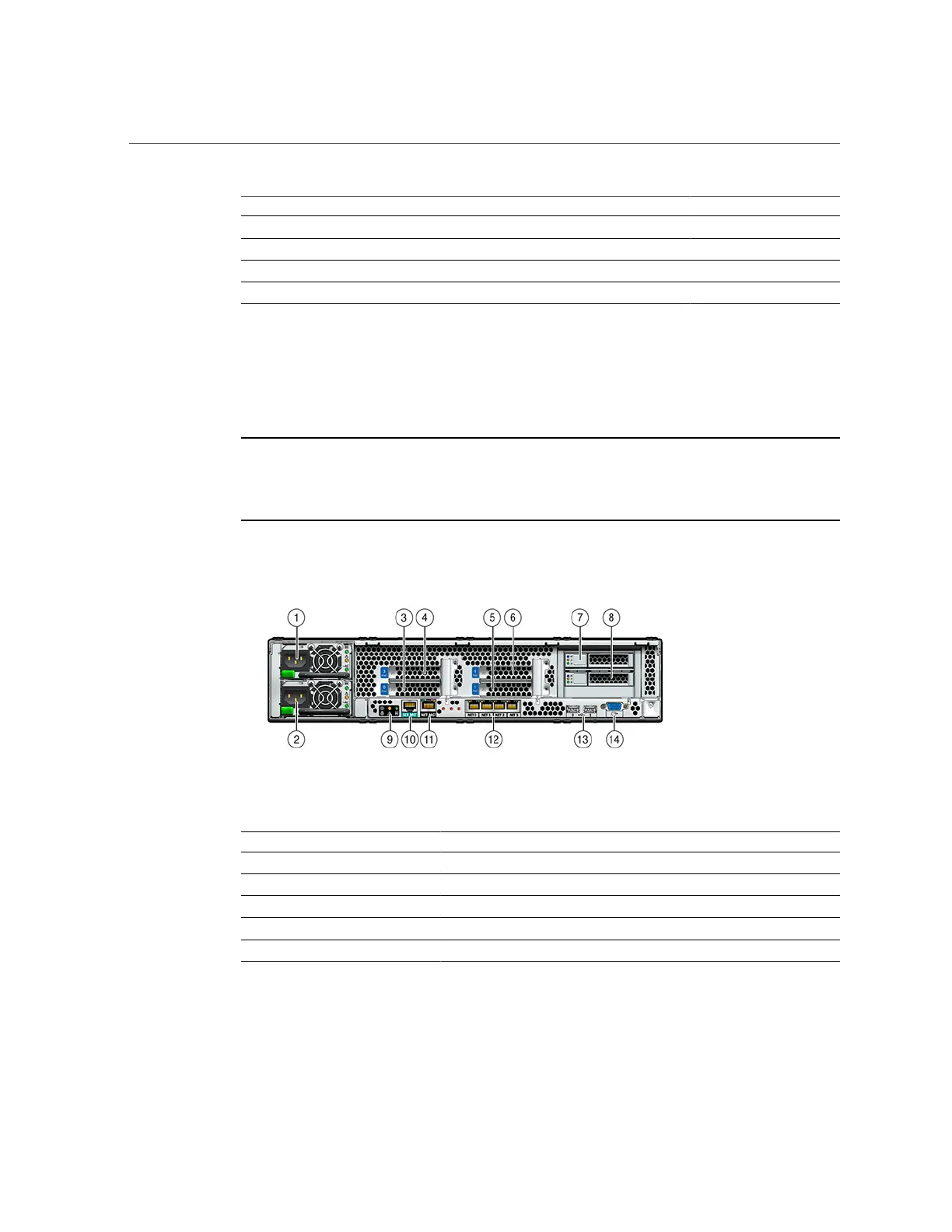

FIGURE 47
7120 Controller Rear Panel
Figure Legend
1 Power Supply Unit 1 2 Power Supply Unit 0 3 PCIe 0
4 PCIe 3 5 PCIe 1 6 PCIe 4
7 Boot HDD 1 8 Boot HDD 0 9 Rear Panel System Status LEDs
10 Serial Management port 11 Network Management port 12 Gbit Ethernet ports NET 0, 1, 2, 3
13 USB 2.0 ports (0, 1) 14 HD15 Video port
The 7120 controller has the following ports:
86 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021

Oracle ZFS Specifications

General

Category	Storage
Operating System	Oracle Solaris
Protocol Support	NFS, SMB, iSCSI, FC
Data Protection	Snapshots, Clones, Replication
Encryption	AES-256 encryption for data at rest
Integration	Oracle Database
RAID Levels	RAID-Z2, RAID-Z3
Data Deduplication	Yes
Data Integrity	Checksums
High Availability	Redundant hardware
Maximum Capacity	Petabytes
Management	Command-line interface (CLI)
