Installing the Slide Rails into the Rack for a ZS7-2
Note - The mounting brackets are identical and can be installed on either side of the chassis.
2.

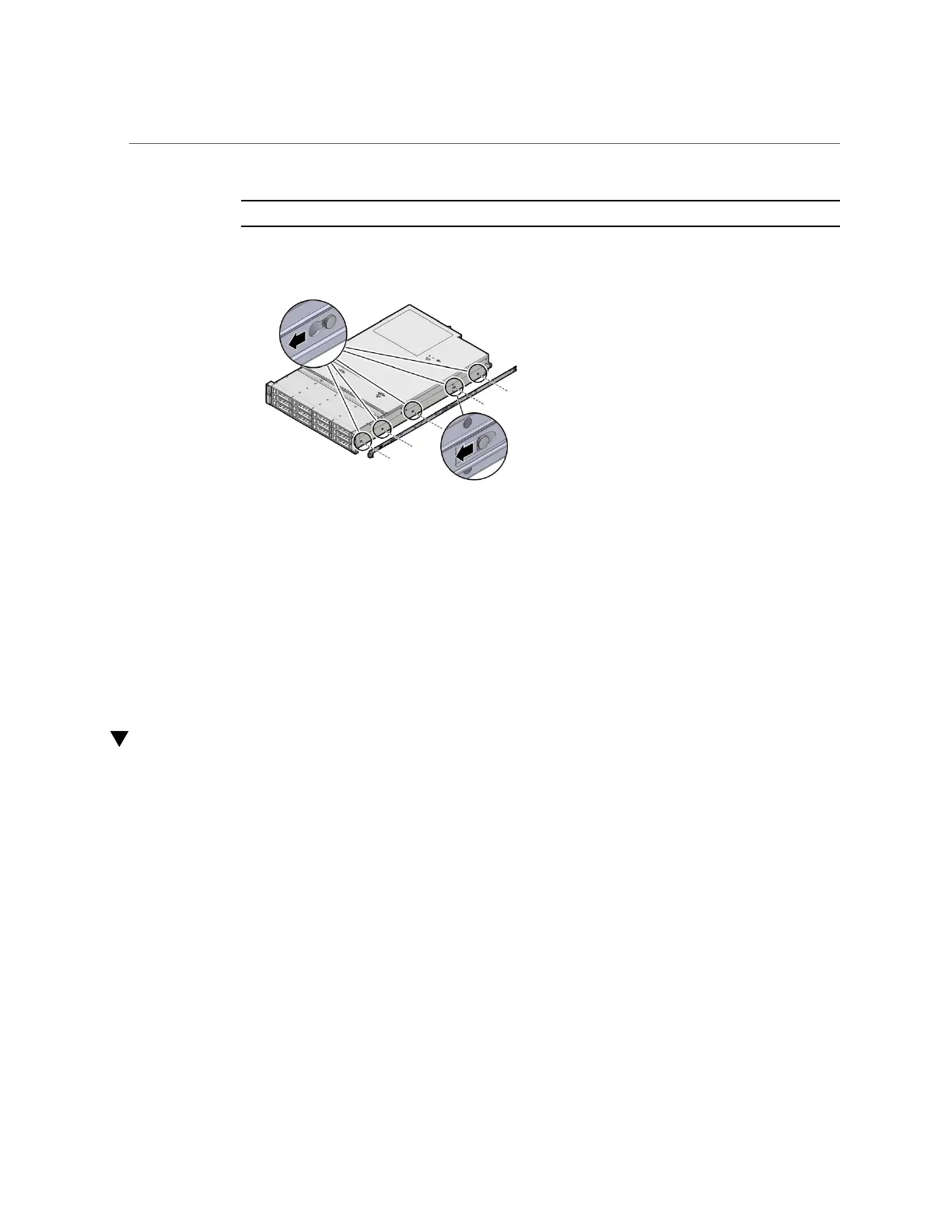

With the heads of the five chassis locating pins protruding through the five
keyhole openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click.
3.
Verify that the rear locating pin has engaged the mounting bracket clip.
4.
To install the other mounting bracket on the other side of the chassis, repeat
Steps 1 through 3.
Installing the Slide Rails into the Rack for a ZS7-2
Use the following procedure to install the slide rails into the rack for a ZS7-2 controller.
If you plan to move the rack after the controller is installed, use mounting screws and cage nuts
to secure the slide-rail assembly. Refer to Rail Rackmount Kit Overview and Information card
for instructions on inserting these cage nuts. This card is included with the rack kit.
1.
Position a slide-rail assembly in your rack so that the slide-rail assembly front
bracket is on the outside of the front rack post and the slide-rail assembly rear
bracket is on the inside of the rear rack post.
2.
Align the slide-rail assembly mounting pins with the front and rear rack post
mounting holes. Then lock the assembly into place by pushing the assembly
132 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
To Next Page
