Oracle ZFS - ZS5-4 Front Panel Components

Overview of ZS5-4 Controller
The most recent component specification is located at https://www.oracle.com/storage/
nas/index.html.
ZS5-4 Front Panel Components

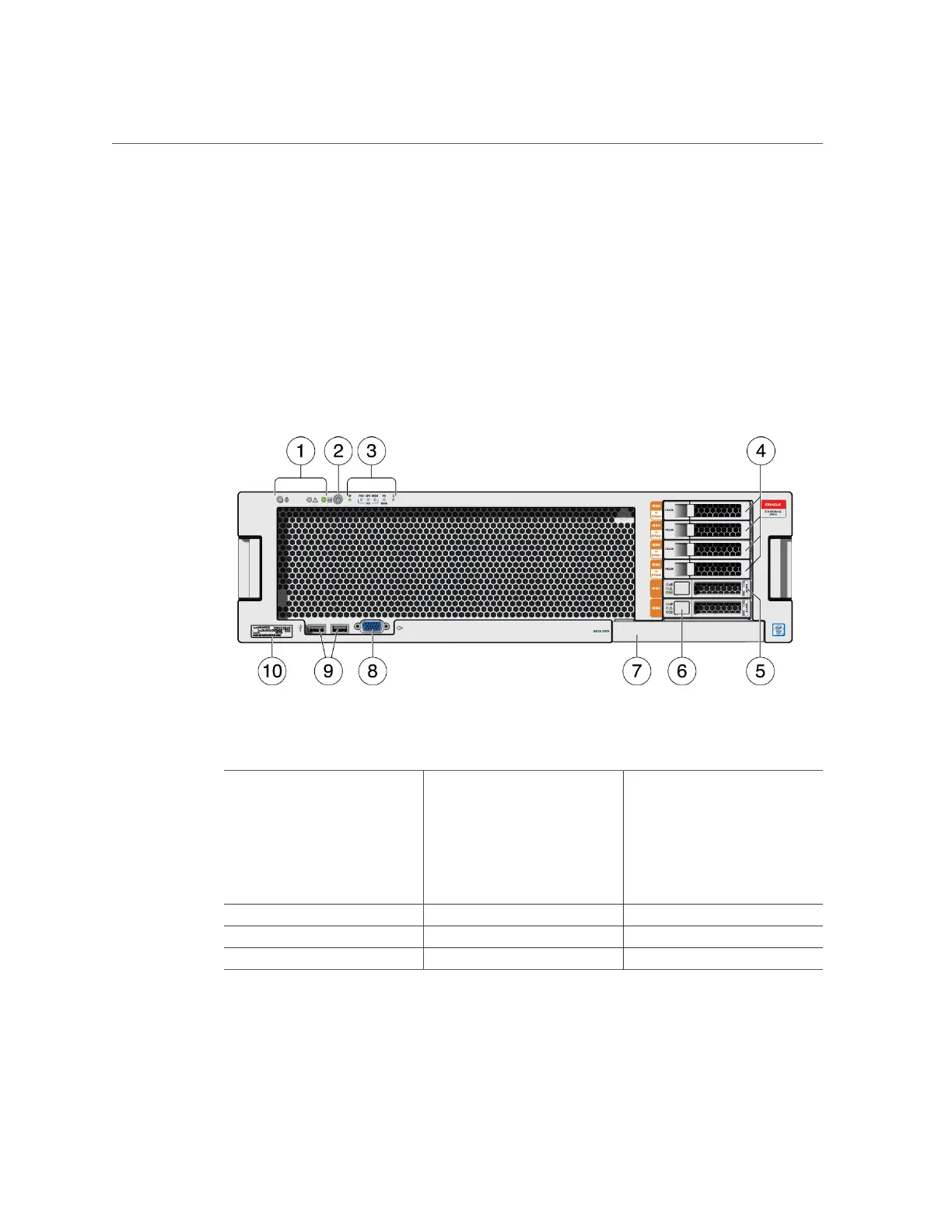

The ZS5-4 controller drive slots and front panel components are shown in the following figure.
FIGURE 26
ZS5-4 Front Panel
1 LEDs (left to right)
■ Locator
■ Service action required
■ Power/OK
2 Power button 3 Alert indicators (left to right)
■ Service Processor (SP) OK/Fault
■ Fan/ CPU/ Memory service
action required
■ Power Supply (PS) service action
required
■ Over-temperature warning
4 Permanent HDD filler panels 5 System disk 1 6 System disk 0
7 DVD filler panel 8 DB-15 VGA port 9 Two USB 2.0 ports
10 RFID tag
