Controller Cluster I/O Ports

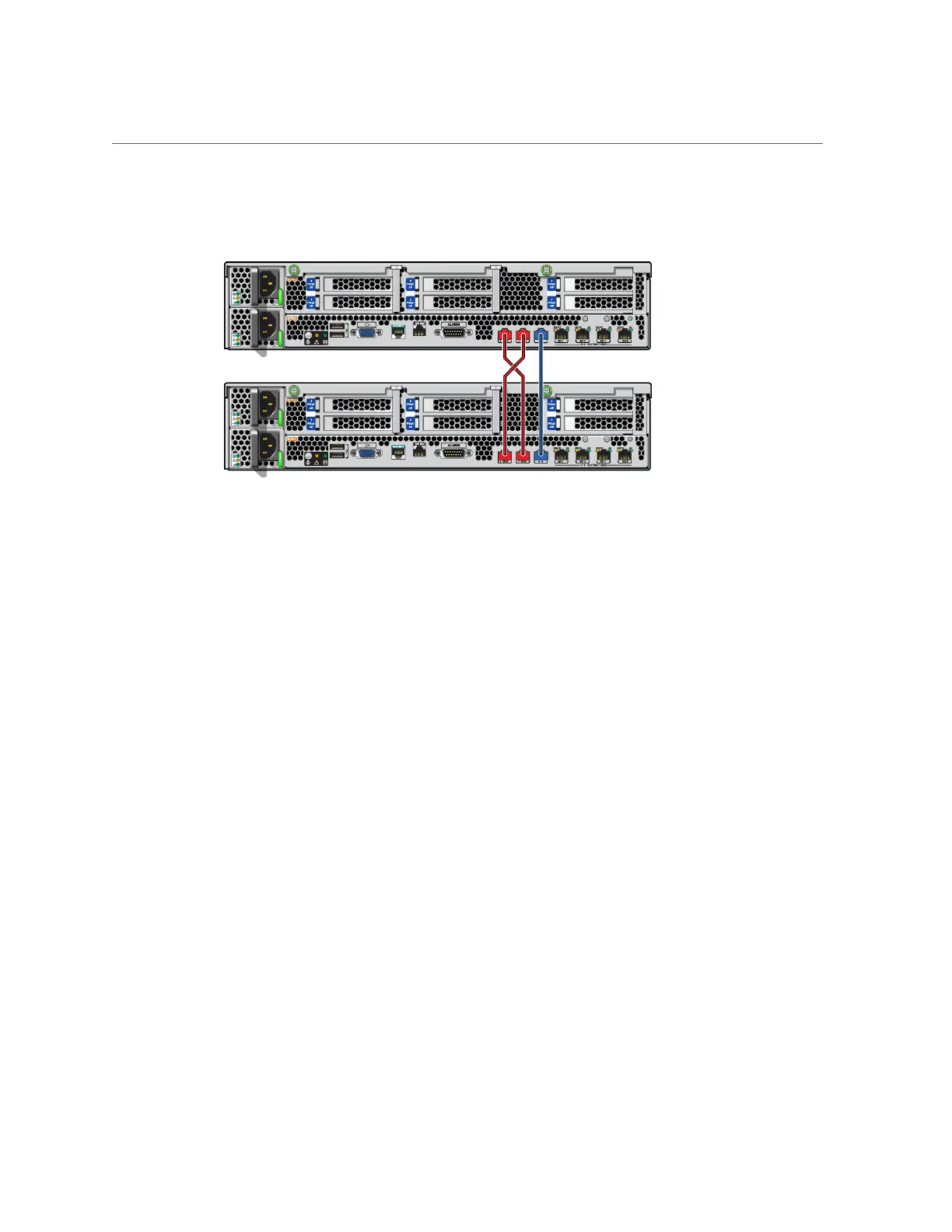

FIGURE 53
ZS3-2 Controller Cluster Cabling
Controller Cluster I/O Ports
Controller cluster interface cards provide redundant links through I/O ports that enable two
controllers to communicate with each other. For the location of these cluster interface cards, see
the hardware overview for the appropriate controller.
ZS9-2 controllers employ Ethernet-based clustering using two Ethernet ports in the Oracle
Quad Port 10GBASE-T Ethernet Adapter. All other controller cluster interface cards employ
serial-based clustering using two serial cluster links, and provide Ethernet connectivity via one
link.
For all controllers, the LEDs for the cluster ports have the following meanings. Note that for
serial cluster ports, only one of the LEDs (the link status LED) is used. For Ethernet ports, both
LEDs are used. See the following figures.
Activity LED
■
Flashing green: Data activity
Link Status LED
■
Solid green: Normal connection
■
Solid yellow or off: Degraded connection
The following diagram illustrates the cluster Ethernet ports for ZS9-2 controllers.
Cabling the Appliance 225

Oracle ZFS Specifications

General

Category	Storage
Operating System	Oracle Solaris
Protocol Support	NFS, SMB, iSCSI, FC
Data Protection	Snapshots, Clones, Replication
Encryption	AES-256 encryption for data at rest
Integration	Oracle Database
RAID Levels	RAID-Z2, RAID-Z3
Data Deduplication	Yes
Data Integrity	Checksums
High Availability	Redundant hardware
Maximum Capacity	Petabytes
Management	Command-line interface (CLI)
