Connecting Cluster Cables

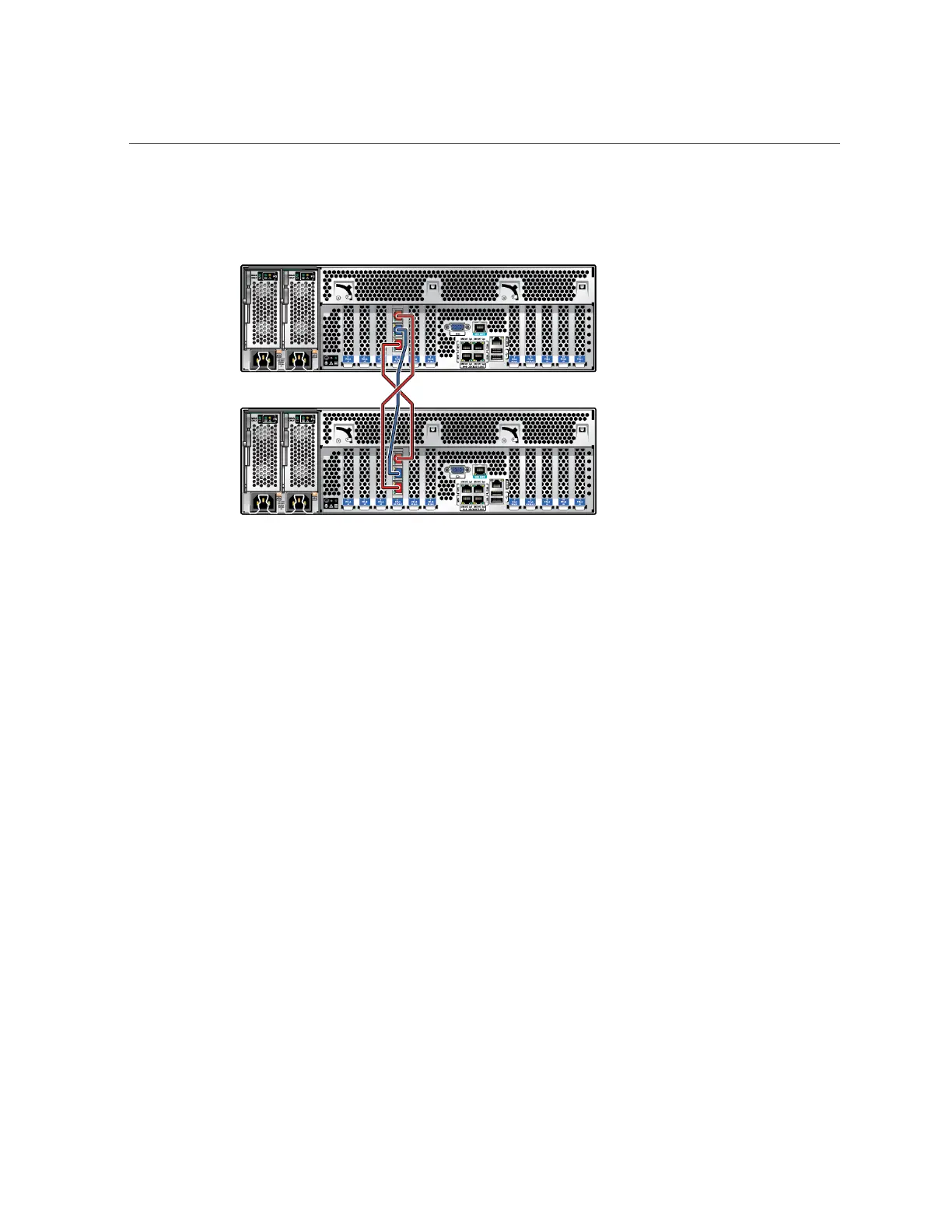

FIGURE 52
ZS4-4 Controller Cluster Cabling
ZS3-4 and 7420 Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 1 meter in length. Connect the
cables in the same way as described for ZS5-x controllers.
The cluster card for ZS3-4 and 7420 is installed in the cluster slot, as described in the hardware
overview for each controller in the Oracle ZFS Storage Appliance Customer Service Manual.
ZS3-2 Cluster Cabling
Three Category 5 Ethernet cables are provided. Each cable is 1 meter in length. Connect the
cables in the same way as described for ZS5-x controllers. For details about the cluster ports,
see ZS3-2 Controller Cluster I/O Ports.
The following figure shows cluster cabling between two ZS3-2 controllers.
224 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
