Oracle ZFS User Manual

Overview of ZS3-4 Controller
ZS3-4 Front Panel Components
FIGURE 34

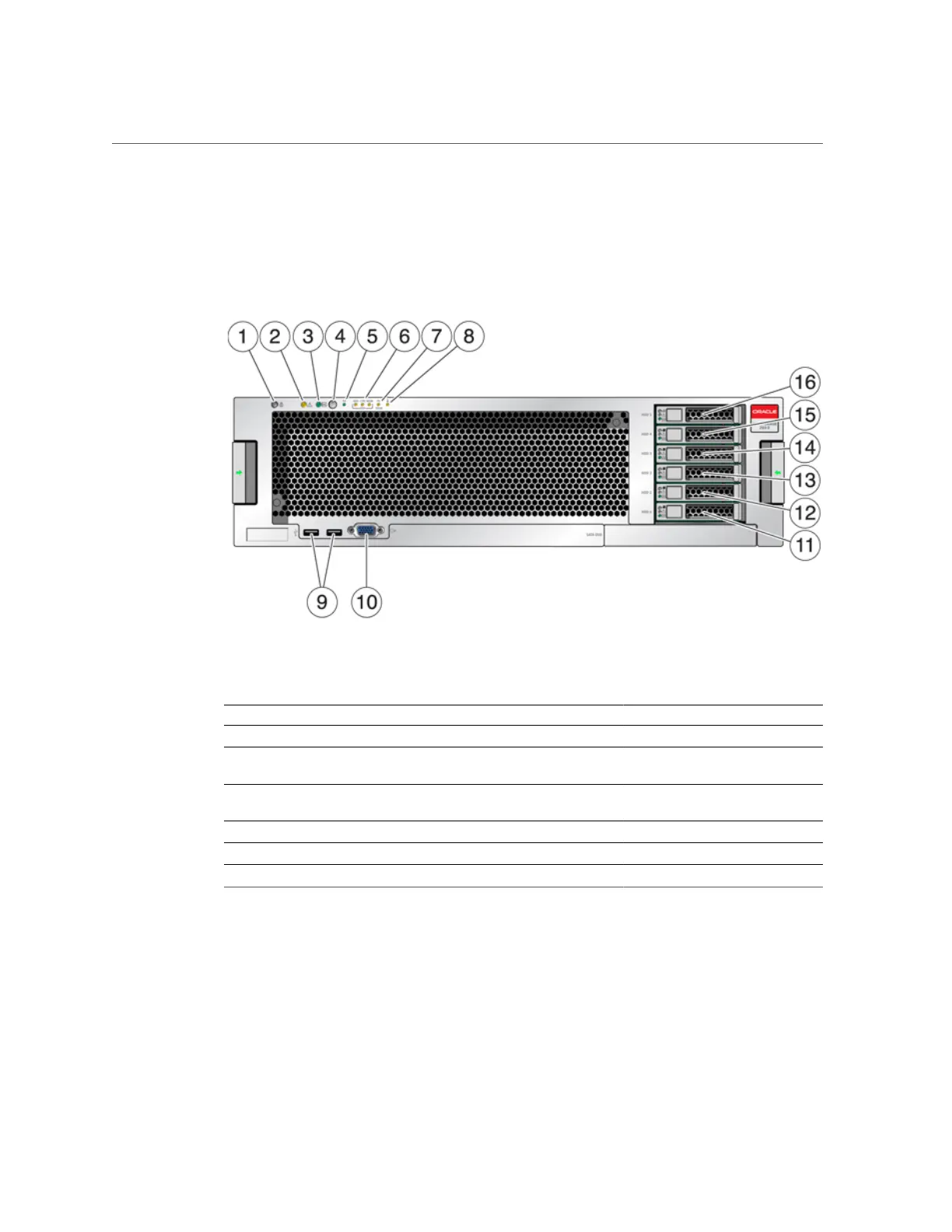

ZS3-4 Front Panel
Figure Legend
1 Locator LED and button (white) 2 Service Required LED (amber) 3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK LED
(green)
6 Fan/CPU/Memory Service
Required LED
7 Power Supply (PS) Service
Required LED
8 Over Temperature Warning LED 9 USB 2.0 Connectors
10 DB-15 video connector 11 Boot drive 0 (required) 12 Boot drive 1 (required)
13 Solid state drive 2 (optional) 14 Solid state drive 3 (optional) 15 Solid state drive 4 (optional)
16 Solid state drive 5 (optional)
The ZS3-4 controller has two SAS-2 system boot drives in slots 0 and 1, configured as a
mirrored pair. Up to four SAS-2 read cache SSDs can fill slots 2 through 5, in order.
Installation Prerequisites and Hardware Overviews 67

Oracle ZFS Specifications

General

Category	Storage
Operating System	Oracle Solaris
Protocol Support	NFS, SMB, iSCSI, FC
Data Protection	Snapshots, Clones, Replication
Encryption	AES-256 encryption for data at rest
Integration	Oracle Database
RAID Levels	RAID-Z2, RAID-Z3
Data Deduplication	Yes
Data Integrity	Checksums
High Availability	Redundant hardware
Maximum Capacity	Petabytes
Management	Command-line interface (CLI)
