Oracle ZFS - ZS7-2 Rear Panel Components

Overview of ZS7-2 Controller
4 System status LED: Power/OK
(green)
5 Power button 6 Fan service action required (amber)
7 Power Supply (PS) service action
required (amber)
8 Over-temperature warning (amber) 9 Service Processor (SP) OK (green)
10 Do Not Service indicator 11 System disk 0 12 System disk 1
13 Filler panel 14 Filler panel 15 Filler panel
16 Filler panel 17 Filler panel 18 Filler panel
19 Filler panel 20 Filler panel 21 Filler panel
22 Filler panel
ZS7-2 Rear Panel Components

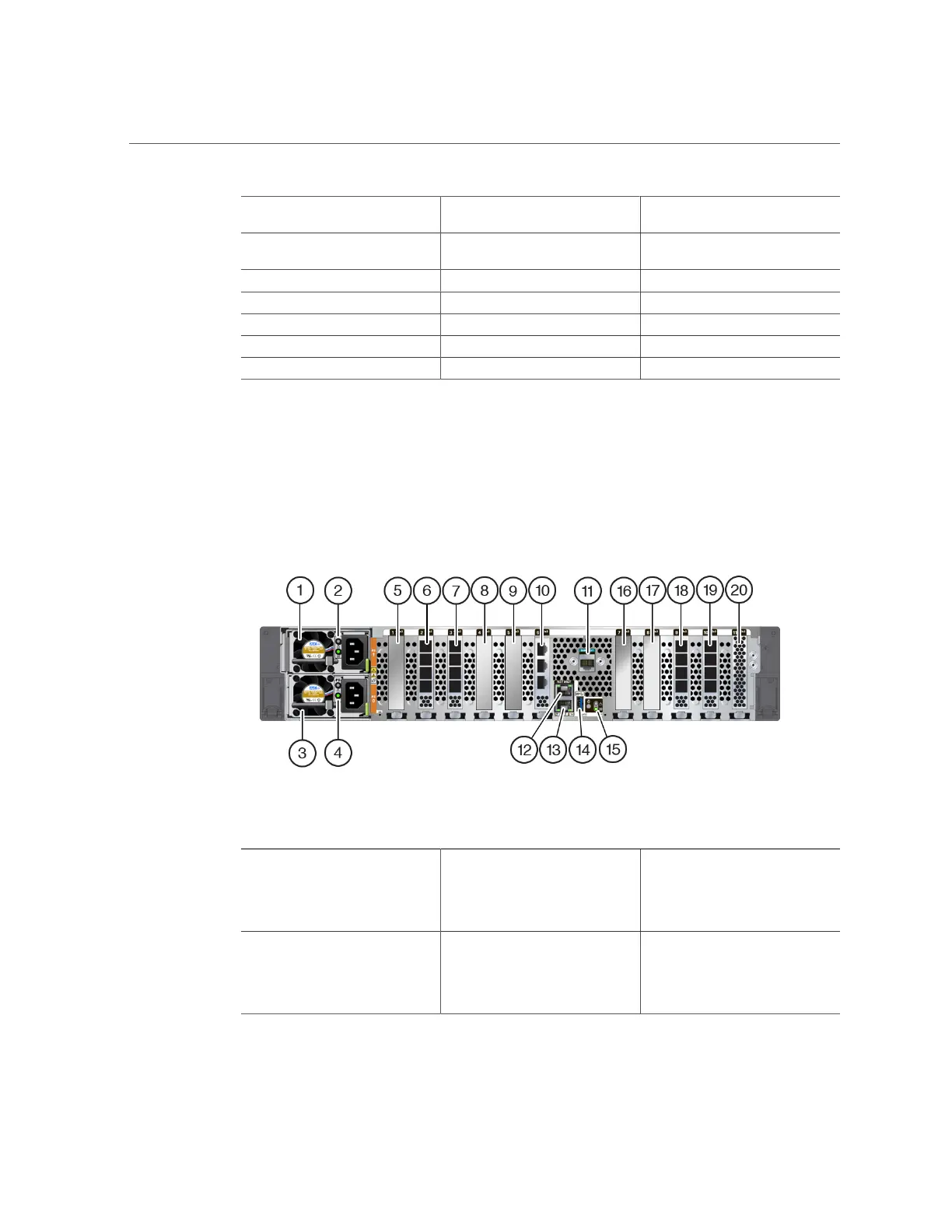

The ZS7-2 controller PCIe slots and rear panel components are shown in the following figure.
FIGURE 25
ZS7-2 Rear Panel
1 Power Supply Unit (PSU) 1 2 PSU 1 status indicators (top to
bottom):
■ Attention (amber)
■ Power/OK (green)
3 PSU 0
4 PSU 0 status indicators (top to
bottom):
■ Attention (amber)
■ Power/OK (green)
5 Fifth PCIe option (slot 1) 6 External SAS-3 HBA (slot 2)
