Overview of 7320 Controller
Disk Drive
Locations
HDD1 HDD3 HDD5
HDD0 HDD2 HDD4 HDD6 HDD7
7320 Rear Panel Components
Following is an illustration of the 7320 storage controller rear panel. The Sun 375-3609 belongs
in slot 2, cannot be installed in any other slots, and a second is not offered as an option.
For information about PCIe cards, see “7320 Configuration Options” in Oracle ZFS Storage
Appliance Customer Service Manual.

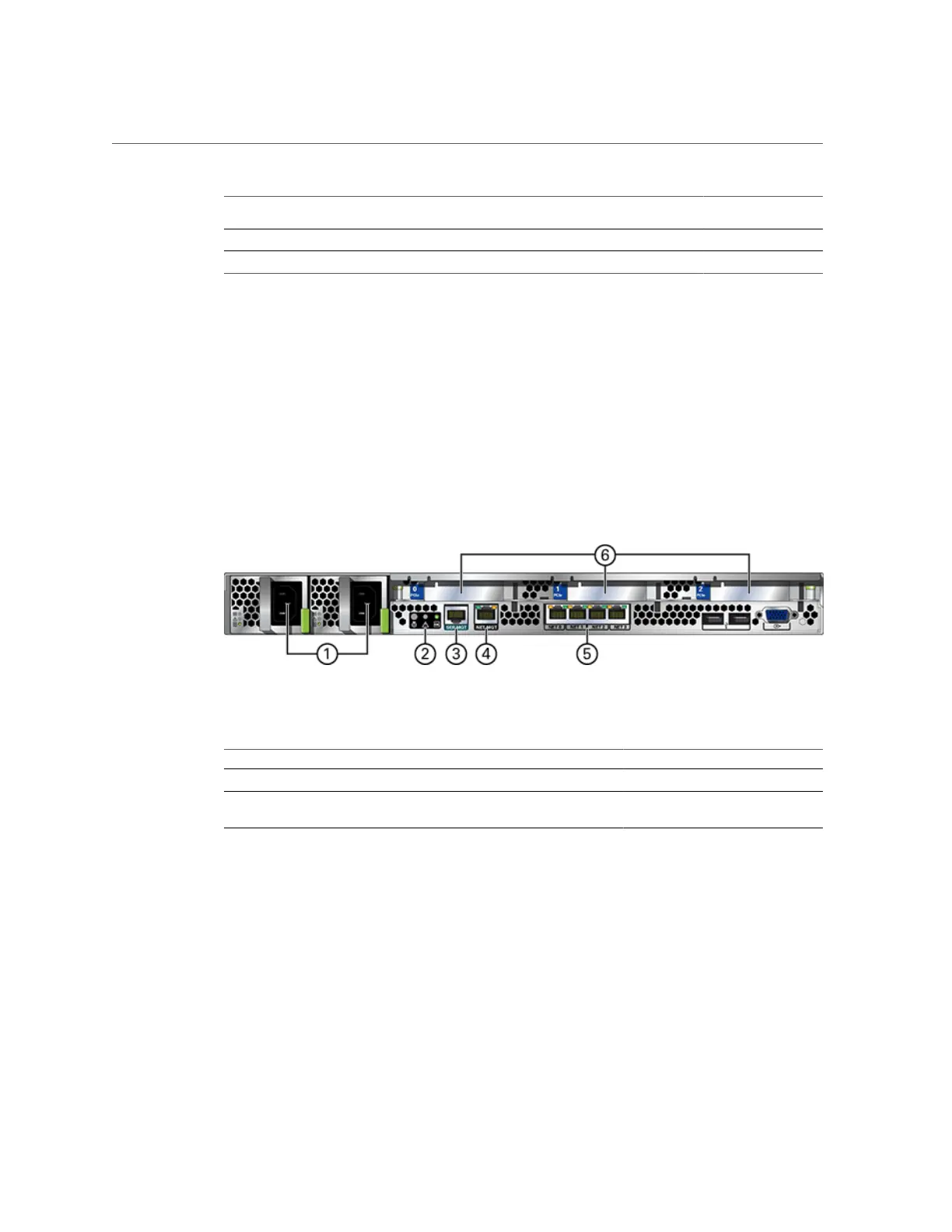

FIGURE 45
7320 Controller Rear Panel
Figure Legend
1 Power supplies 2 SC summary status LEDs 3 Serial management port
4 Network management (NET MGT)
10/100 BASE-T Ethernet port
5 Ethernet ports 6 PCIe slots
The 7320 controller has the following ports:
■
Ethernet Ports - There are four RJ-45 Gigabit Ethernet ports (NET 0, NET 1, NET 2,
NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These network
interfaces must be configured before use.
■
Network Management Port - The network management connector (NET MGT) is an RJ-
45 10/100 BASE-T Ethernet port and provides an alternate terminal interface to the SP
console.
Installation Prerequisites and Hardware Overviews 83

Oracle ZFS Specifications

General

Category	Storage
Operating System	Oracle Solaris
Protocol Support	NFS, SMB, iSCSI, FC
Data Protection	Snapshots, Clones, Replication
Encryption	AES-256 encryption for data at rest
Integration	Oracle Database
RAID Levels	RAID-Z2, RAID-Z3
Data Deduplication	Yes
Data Integrity	Checksums
High Availability	Redundant hardware
Maximum Capacity	Petabytes
Management	Command-line interface (CLI)
