Installing a ZS9-2 Cable Management Arm
b.
Gently tug on the left side of the front slide bar to verify that connector A is
properly seated.
Callout Description
1 Connector A tab
2 Left slide-rail front slot
7.
To install CMA connector B into the right slide-rail:
a.

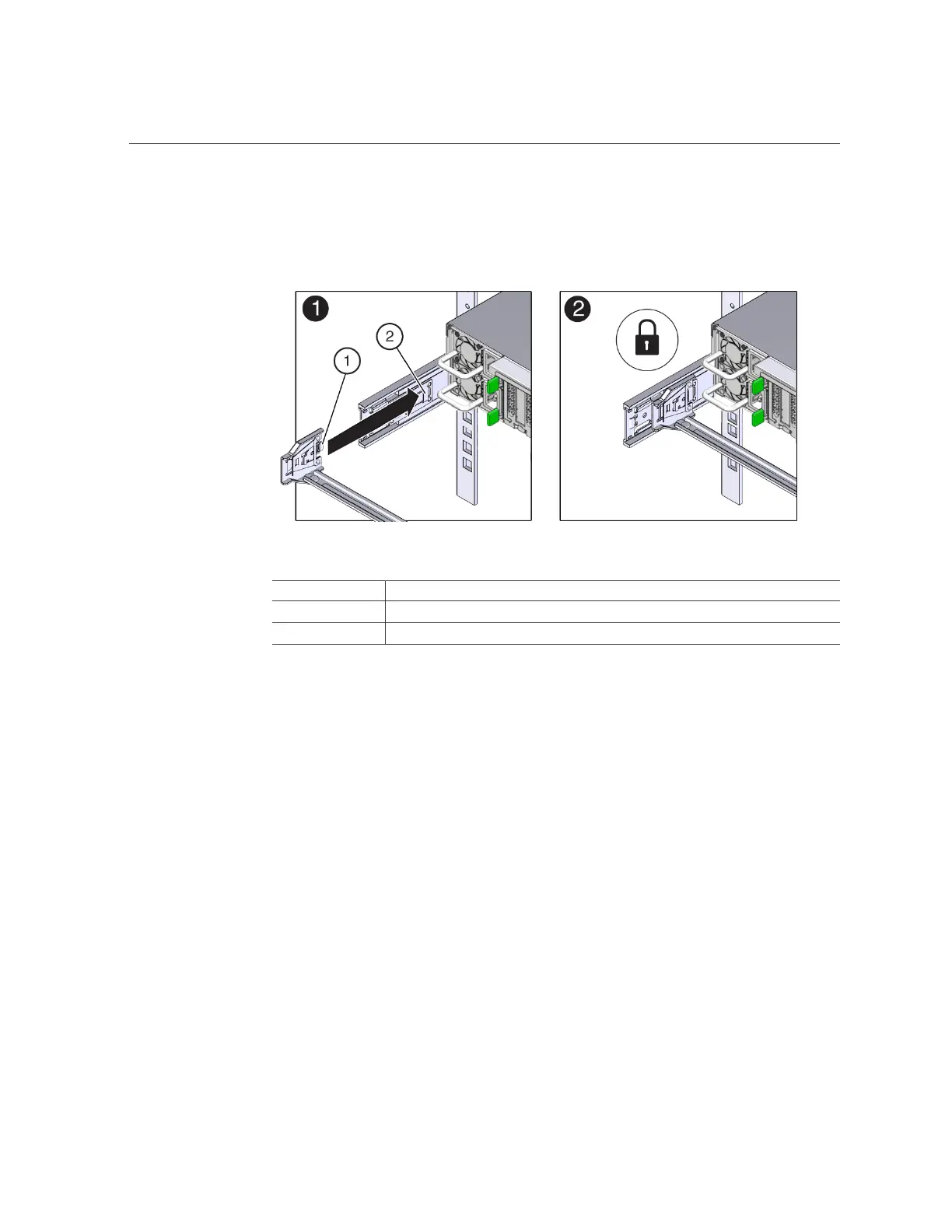

Insert CMA connector B into the front slot on the right slide-rail until it locks
into place with an audible click [frames 1 and 2].
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
