Installing a ZS5-2 Cable Management Arm
c.
The center arm end latch should stay engaged with the rail as it moves out.
If it does not stay engaged with rail, remove the latch from the rail and bend
it or yield outward so that it fully engages.
15.
Return the storage controller to the rack. As you push the storage controller into
the rack, verify that the CMA retracts without binding.
16.

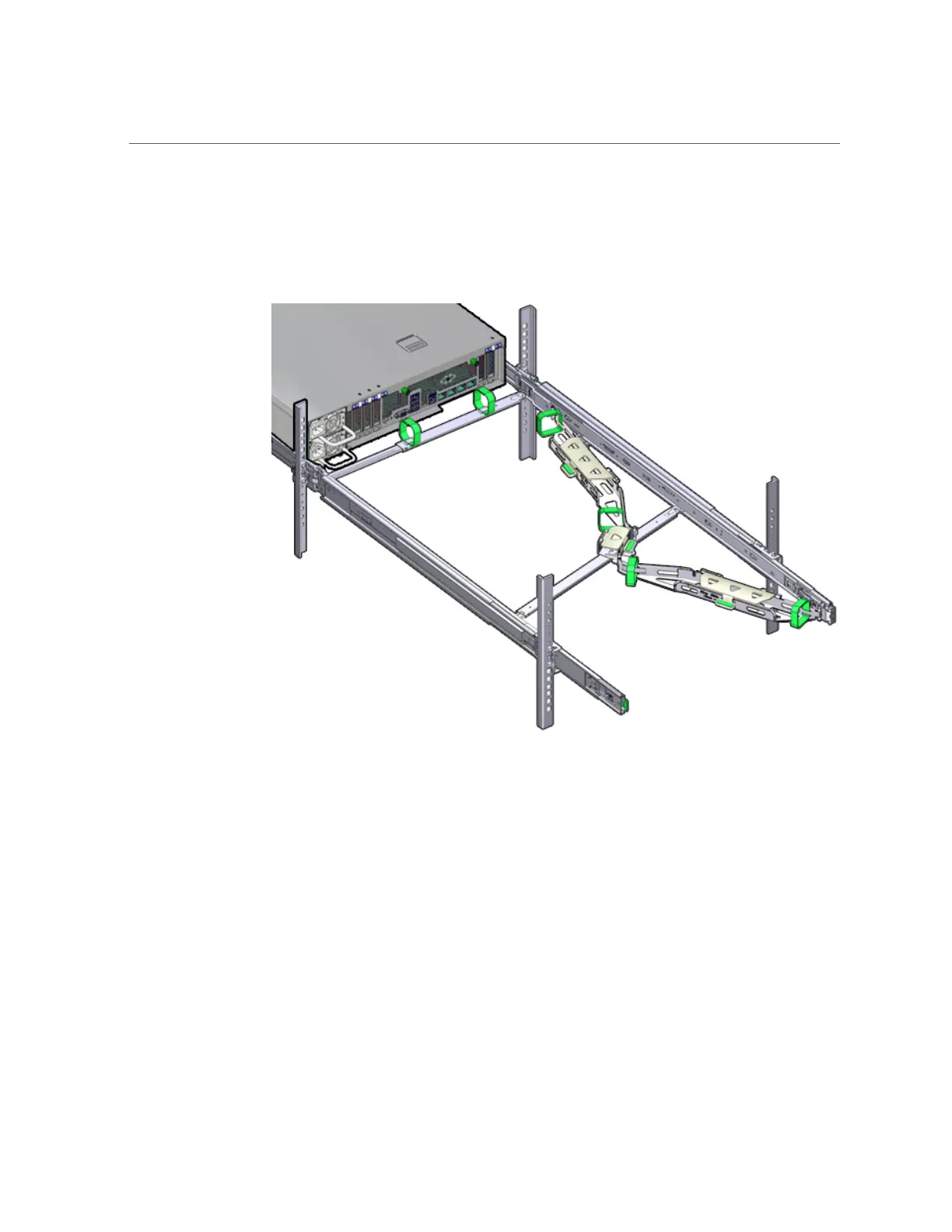

Open the CMA cable covers, route controller cables through the CMA's cable
troughs, close the cable covers, and secure the cables with the six Velcro straps.
Route the cables through the cable troughs in this order: Route the cables
172 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
