Installing a ZS4-4 or ZS3-4 Cable Management Arm
2.

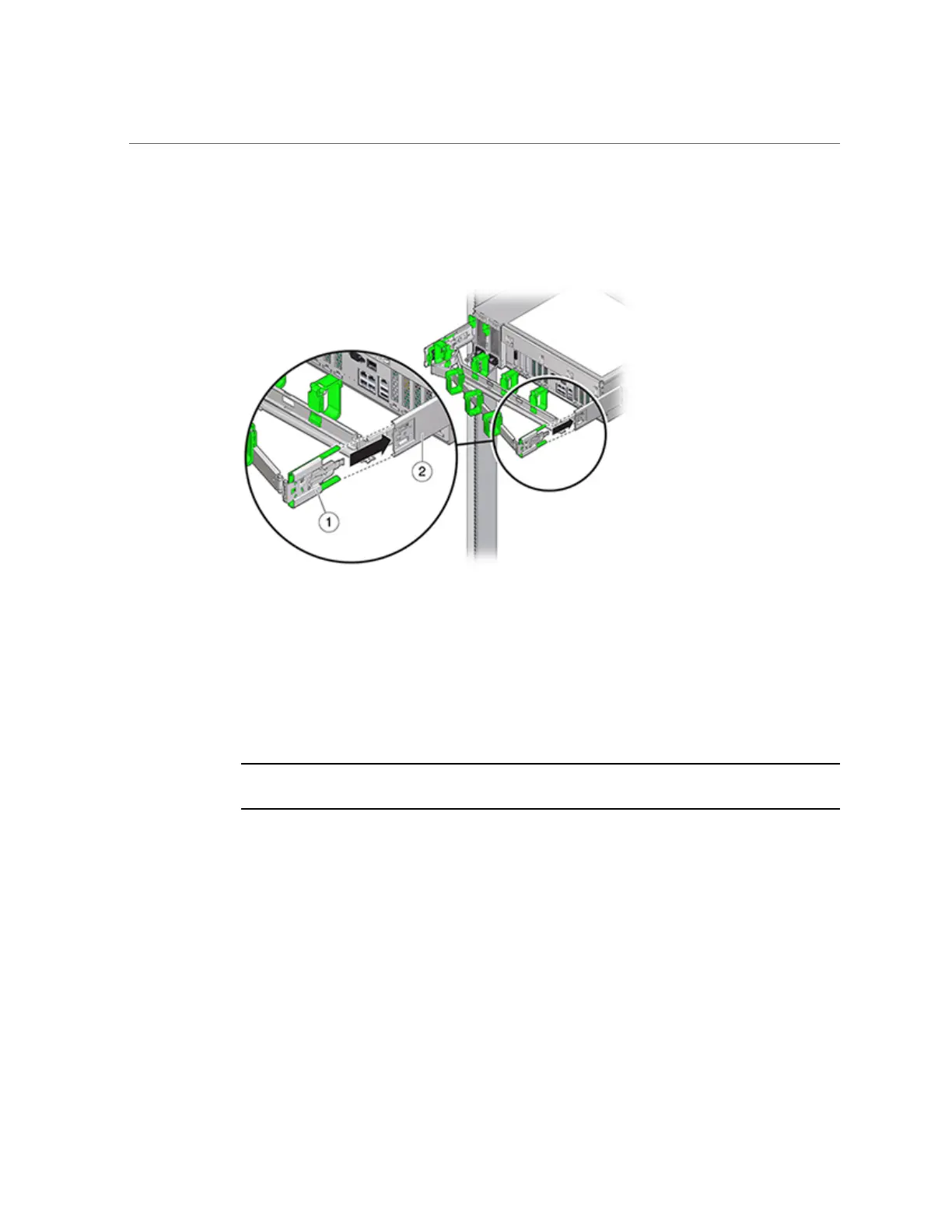

Insert the right CMA slide-rail connector (1) into the right slide-rail assembly (2)
until the connector locks into place with an audible click.
3.
Insert the left CMA slide-rail connector into the left slide-rail assembly until the
connector locks into place with an audible click.
4.
Install and route cables to the controller, as required.
5.
If required, attach the cable hook and loop straps to the CMA, and press them
into place to secure the cables.
Note - Cable hooks and loop straps are preinstalled on the CMA. Perform this step if you need
to reinstall cable hooks and straps.
