Oracle ZFS User Manual

Installing a ZS3-2 Cable Management Arm
3.
Ensure that the six Velcro straps are threaded into the CMA.
4.
To prevent the rack from tipping, ensure all anti-tilt devices on the rack are
extended.
5.
Extend the storage controller approximately 13 cm (5 inches) out of the front of
the rack.
6.

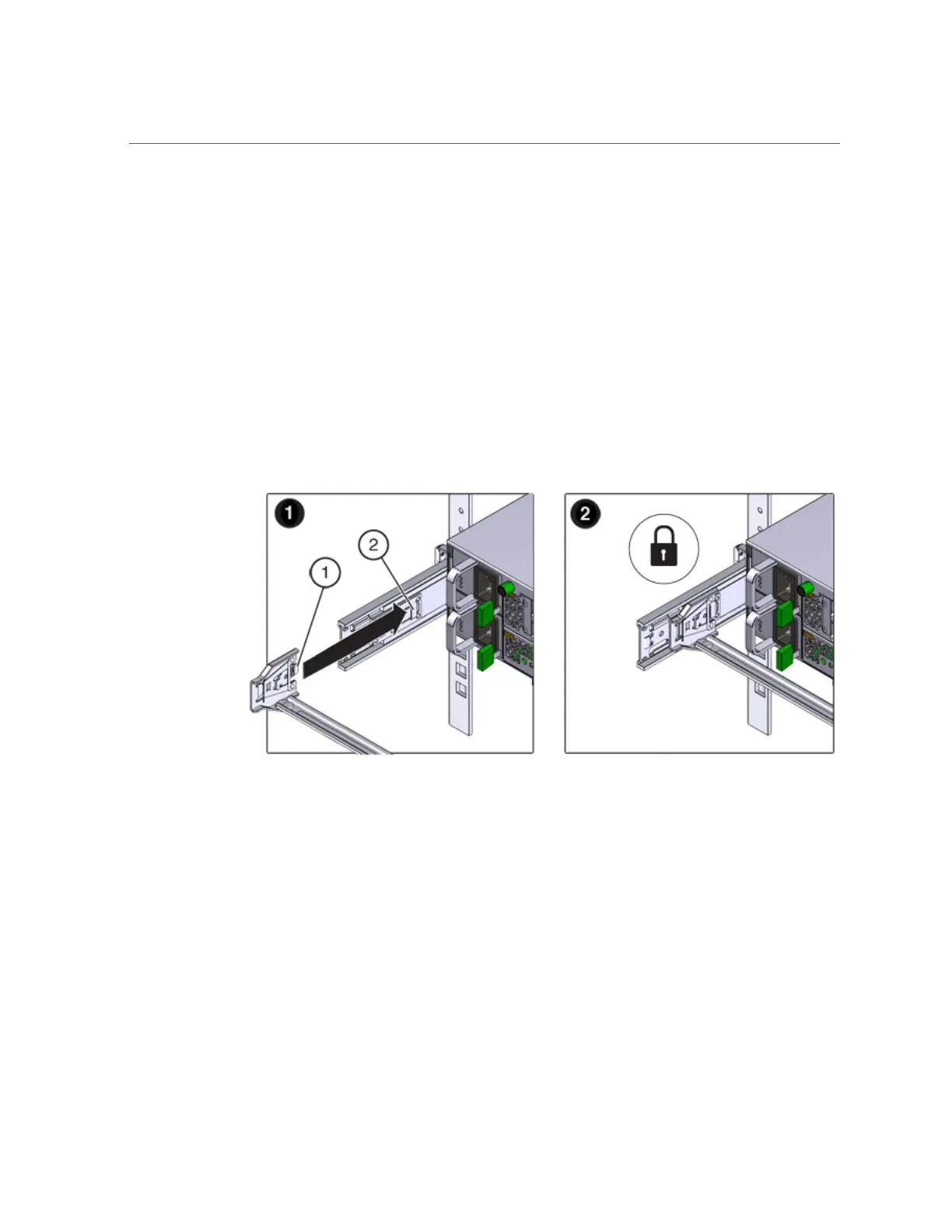

At the back of the rack, insert the CMA's connector A into the front slot on the
left slide-rail until it locks into place with an audible click (frames 1 and 2).
The connector A tab (1) goes into the slide-rail's front slot (2). Gently tug on the left side of the
front slide bar to verify that connector A is properly seated.
7.
Support the CMA and do not allow it to hang under its own weight until it is
secured at all four attachment points.
8.
Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click (frames 1 and 2).
194 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021

Oracle ZFS Specifications

General

Category	Storage
Operating System	Oracle Solaris
Protocol Support	NFS, SMB, iSCSI, FC
Data Protection	Snapshots, Clones, Replication
Encryption	AES-256 encryption for data at rest
Integration	Oracle Database
RAID Levels	RAID-Z2, RAID-Z3
Data Deduplication	Yes
Data Integrity	Checksums
High Availability	Redundant hardware
Maximum Capacity	Petabytes
Management	Command-line interface (CLI)
