Overview of ZS5-2 Controller

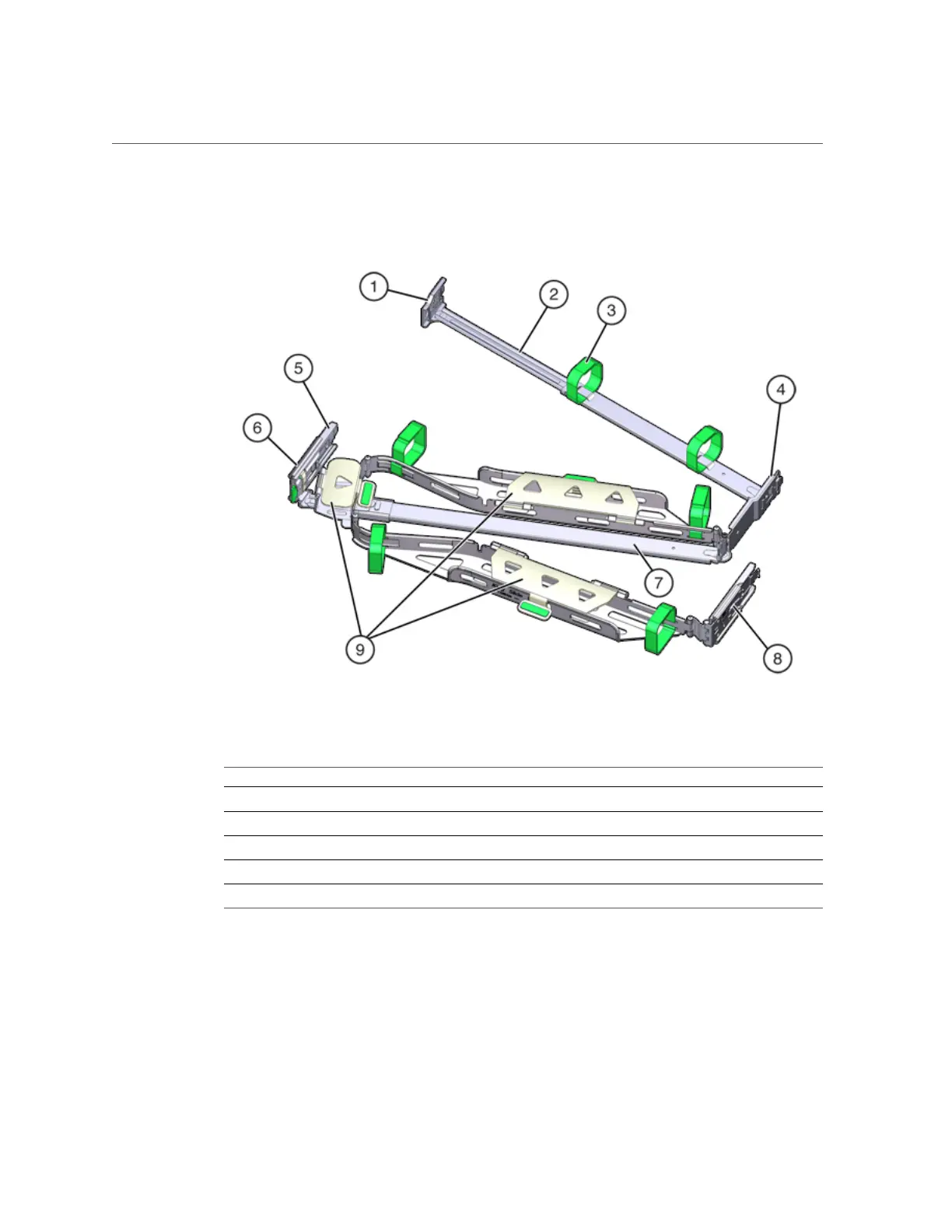

FIGURE 30
ZS5-2 Controller Cable Management Arm
Figure Legend
1 Connector A 6 Connector D
2 Front slide bar 7 Slide-rail latching bracket (used with connector D)
3 Velcro straps (6) 8 Rear slide bar
4 Connector B 9 Cable covers
5 Connector C
