Overview of ZS3-4 Controller
Figure Legend
1 Power supply unit 0 status LEDs
OK: green Power Supply Fail: amber
AC OK: green
2 Power supply unit 0 AC inlet 3 Power supply unit 1 status LEDs
OK: green Power Supply Fail: amber
AC OK: green
4 Power supply unit 1 AC inlet 5 System status LEDs Power: green
Attention: amber Locate: white
6 PCIe slots 0-4
7 Cluster card slot 8 Network (NET) 10/100/1000 ports:
NET 0-NET 3
9 USB 2.0 ports
10 PCIe slots 5-9 11 Network management (NET
MGT) 10/100 BASE-T Ethernet port
12 Serial management (SER MGT)
port
13 DB-15 video connector
■

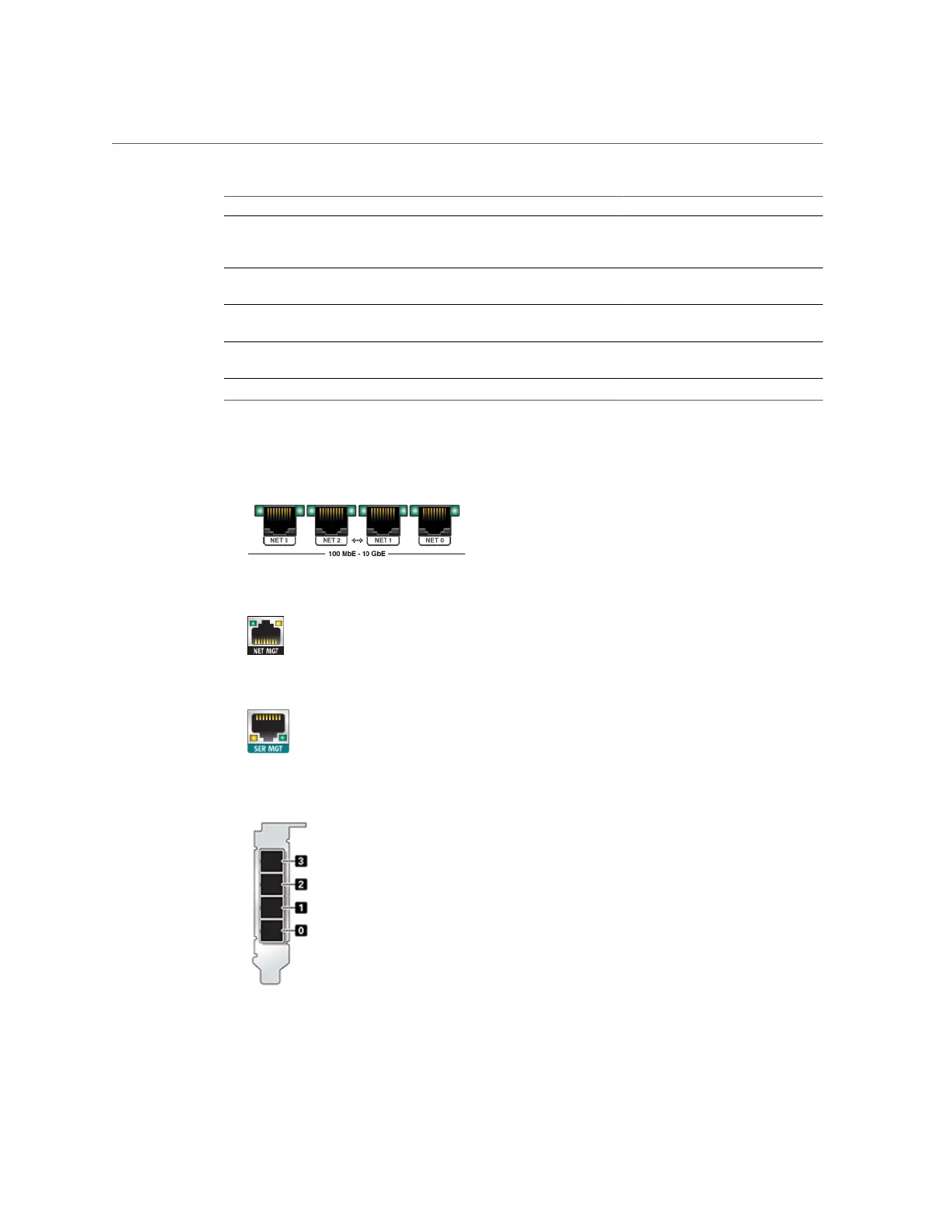

Ethernet Ports - The ZS3-4 has four RJ-45 Gigabit Ethernet connectors (NET 0, NET 1,
NET 2, NET 3) located on the motherboard that operate at 10/100/1000 Mbit/sec. These
network interfaces must be configured before use.
■
Network Management Port - The network management connector (NET MGT) is an RJ-
45 10/100 BASE-T Ethernet port and provides a LAN interface to the SP console.
■
Serial Management Port - The serial management connector (SER MGT) is an RJ-45
connector and provides a terminal connection to the SP console.
■
HBA Ports - The 4x4 SAS-2 HBA, installed in the ZS3-4, provides connectivity to external
DE2 and Sun Disk Shelves. The HBA logical ports are numbered 3-0, top to bottom:
Installation Prerequisites and Hardware Overviews 69
