V–61

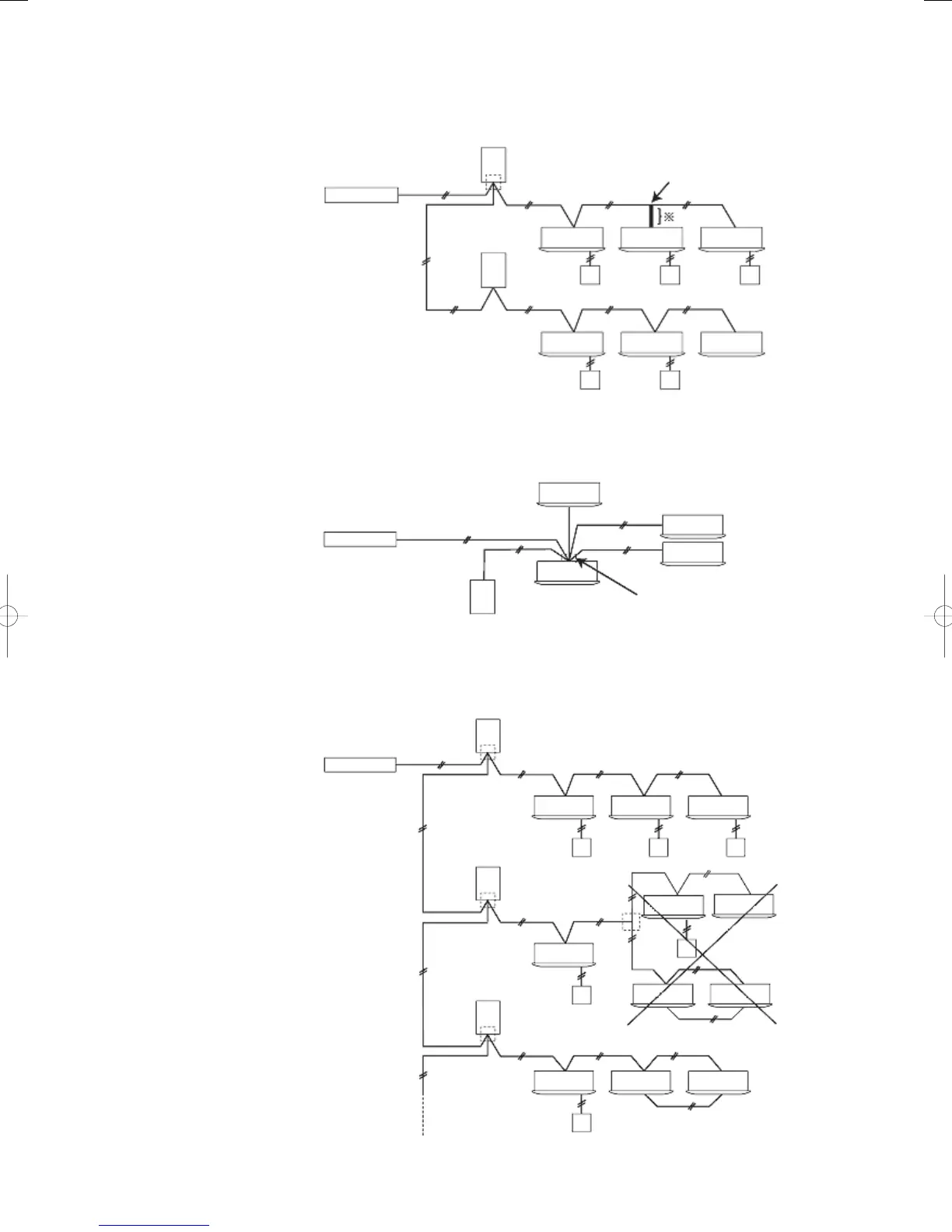

3) Wiring without branching (Figure 5)
Column: Part of indoor wiring branches.
Indoor unit Indoor unit Indoor unit
Indoor unit Indoor unit Indoor unit
Remote controller
Remote controller
Outdoor unit
Outdoor unit
Controller
No remote controller
* If this portion is 1 m or less, it is not
considered a branch.
(Figure 5)
4) Star system is prohibited. (Figure 6)
Controller
Outdoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Do not connect more than 3 cables to a
single branch point.
(Figure 6)
5) Branches after branching (branching of location that cannot be branched in a single stroke) are prohibited.
(Figure 7)
Controller
Outdoor unit
Indoor unit Indoor unit Indoor unit
Remote controller
Outdoor unit
Indoor unit Indoor unit
Indoor unit Indoor unit
No remote controller
No remote controller
Group control
Indoor unit
Remote controller
Remote controller
Indoor unit Indoor unit Indoor unit
Outdoor unit
(Figure 7)
No remote controller
Group control
