PWM Output Function
9-2
9.1 PWM Output Function
9.1.1 Overview of PWM Output Function

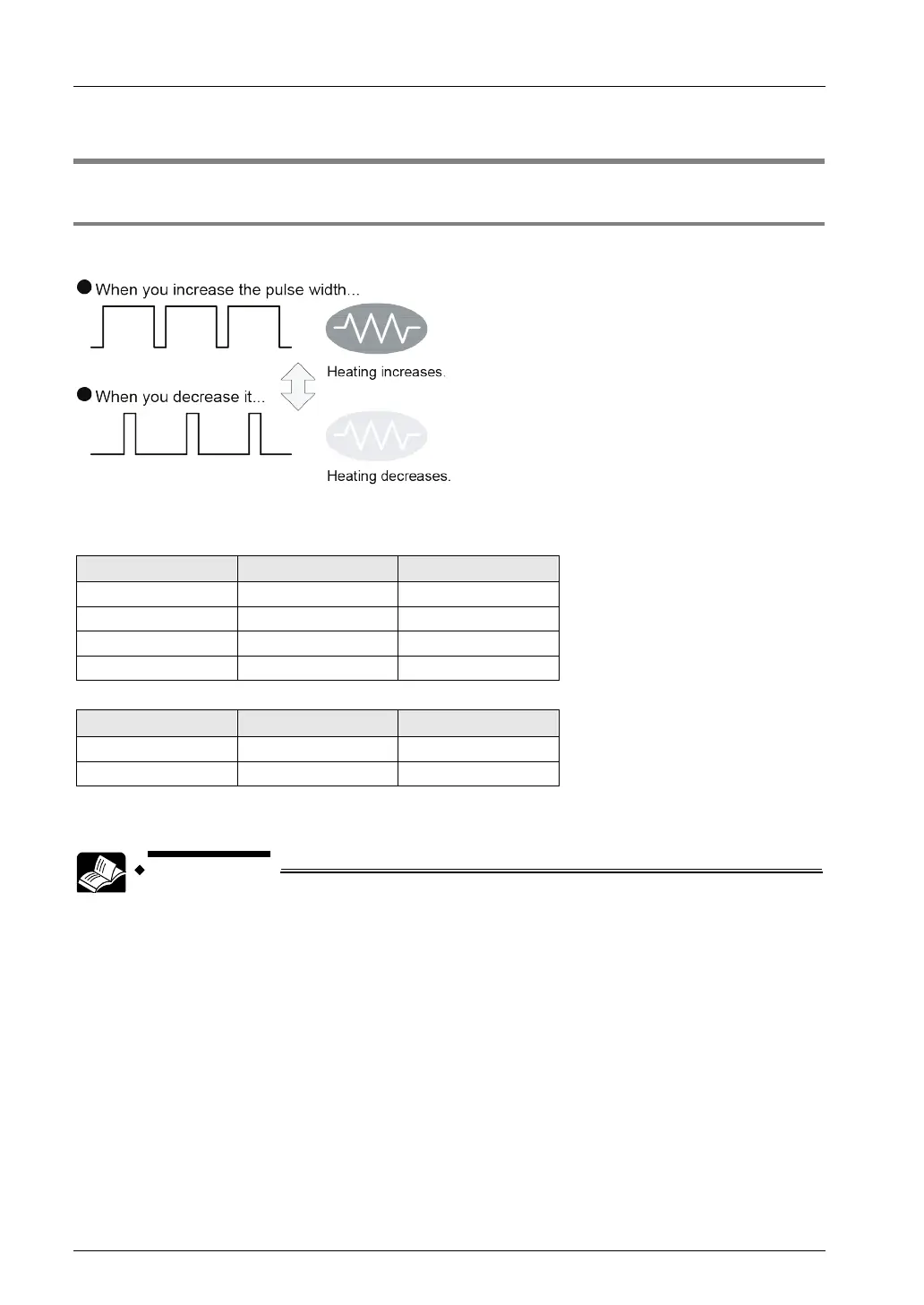

The pulse output of an arbitrary duty ratio can be performed.
 Comparison of functions and performances
FP0H mode
Channel no.
Output no.
Control flag
CH0 Y0 R911C
CH1 Y3 R911D
CH2 Y8 R911E
CH3 YB R911F
FPΣ mode
Channel no. Output no. Control flag
CH0 Y0 R903A
CH2 Y3 R903C
(Note 1): Functions, channel numbers and I/O numbers used are set in the tool software.
(Note 2): I/O numbers used for each function should be allocated so that they do not overlap.
REFERENCE
• For details of the FPΣ mode, refer to "11. FPΣ Mode".
