4.2 Settings in Configurator PMX
4-11

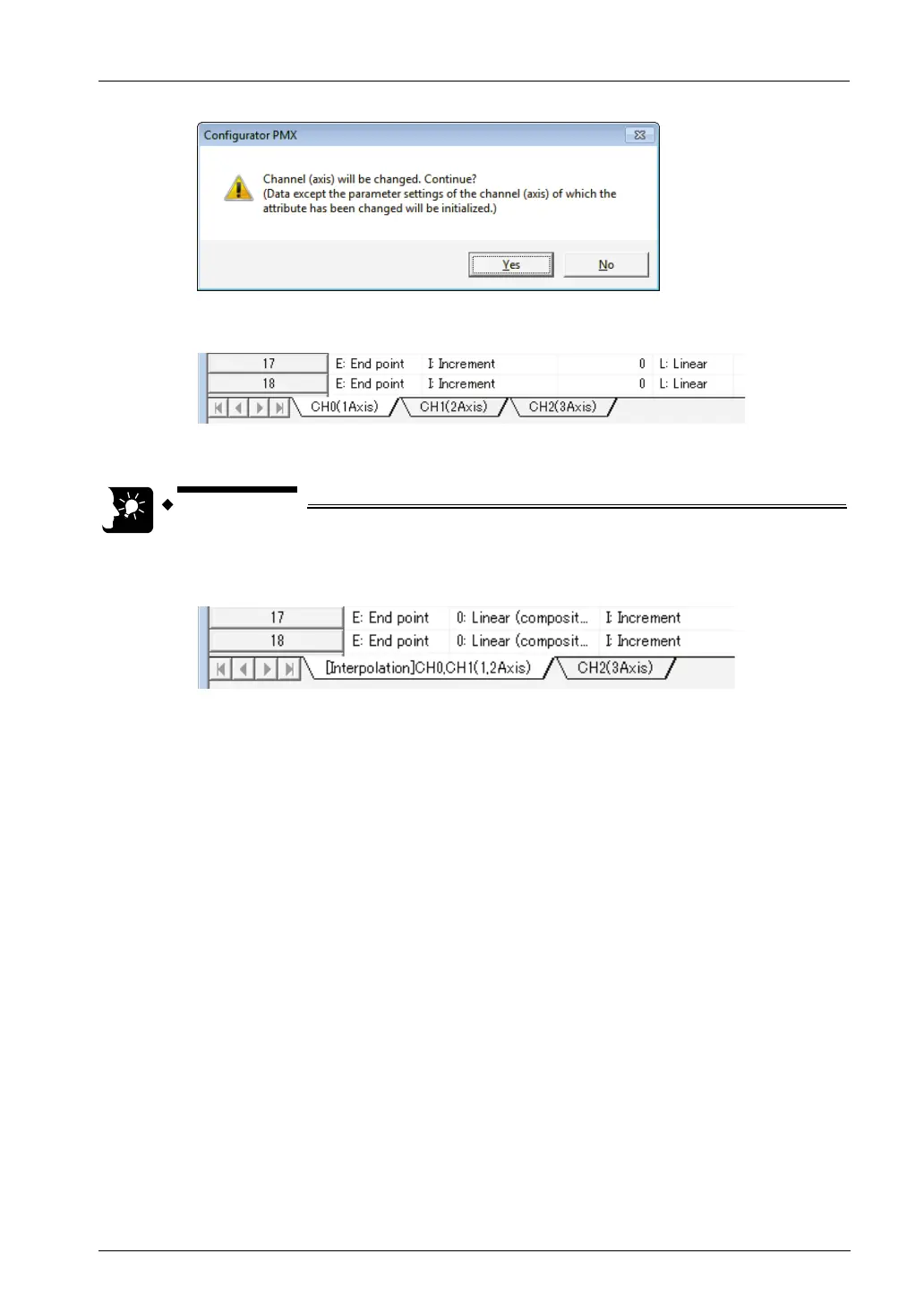

4. Confirm the change and press the [OK] button.
A data table tab each is created for the groups set.
• When interpolation control is selected, the data table of the channel
numbers of X and Y axes will be added, and [Interpolation] will be displayed
on the tab.
• When changing "Used channel setting" in Configurator PMX, the system
registers no. 400 to 402 and 407 corresponding to the I/O used for the
positioning control will be automatically updated. For details, refer to "4.3
System Register Settings".
