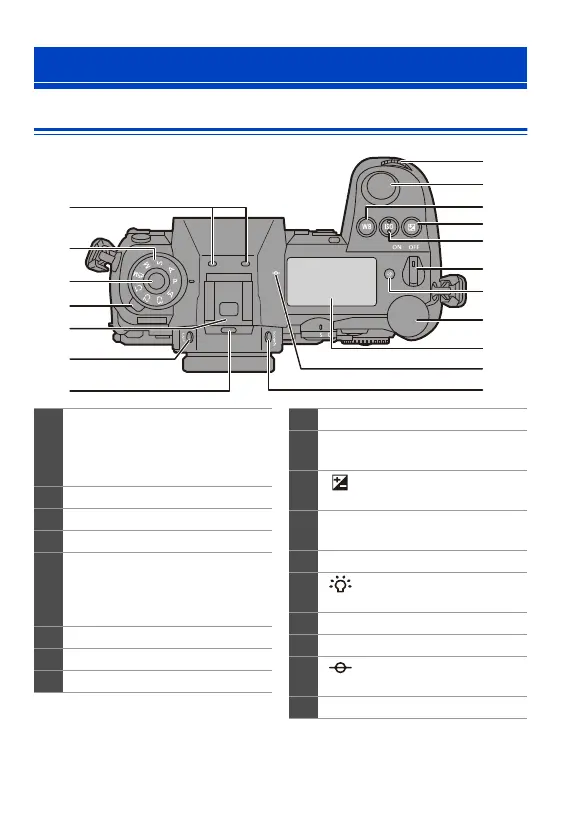

Panasonic Lumix S1R

1. Introduction
24
Camera
Names of Parts
3
4
5
6
7
2
1
8
9
10
11
12
13
15
14
16
17
18
1
Stereo microphone (l 243)
0 Take care not to block the
microphone with a finger. Audio
will be difficult to record.
2
Mode dial (l 61)
3
Mode dial lock button (l 61)
4 Drive mode dial (l 125)
5
Hot shoe (hot shoe cover) (l 216)
• Keep the hot shoe cover out of
reach of children to prevent
swallowing.
6 [LVF] button (l 67)
7
Speaker (l 354)
8
Front dial (l 63)
9
Shutter button (l 59)
10
[WB] (White Balance) button
(l 194)
11
[ ] (Exposure compensation)
button (l 189)
12
[ISO] (ISO sensitivity) button
(l 192)
13
Camera on/off switch (l 53)
14
[ ] (Status LCD backlight)
button (l 70, 353)
15
Rear dial (l 63)
16
Status LCD (l 30, 353)
17
[ ] (Recording distance
reference mark) (l 120)
18
[V.MODE] button (l 66)
