TRIO Panel Formwork
100
Item no. Weight kg

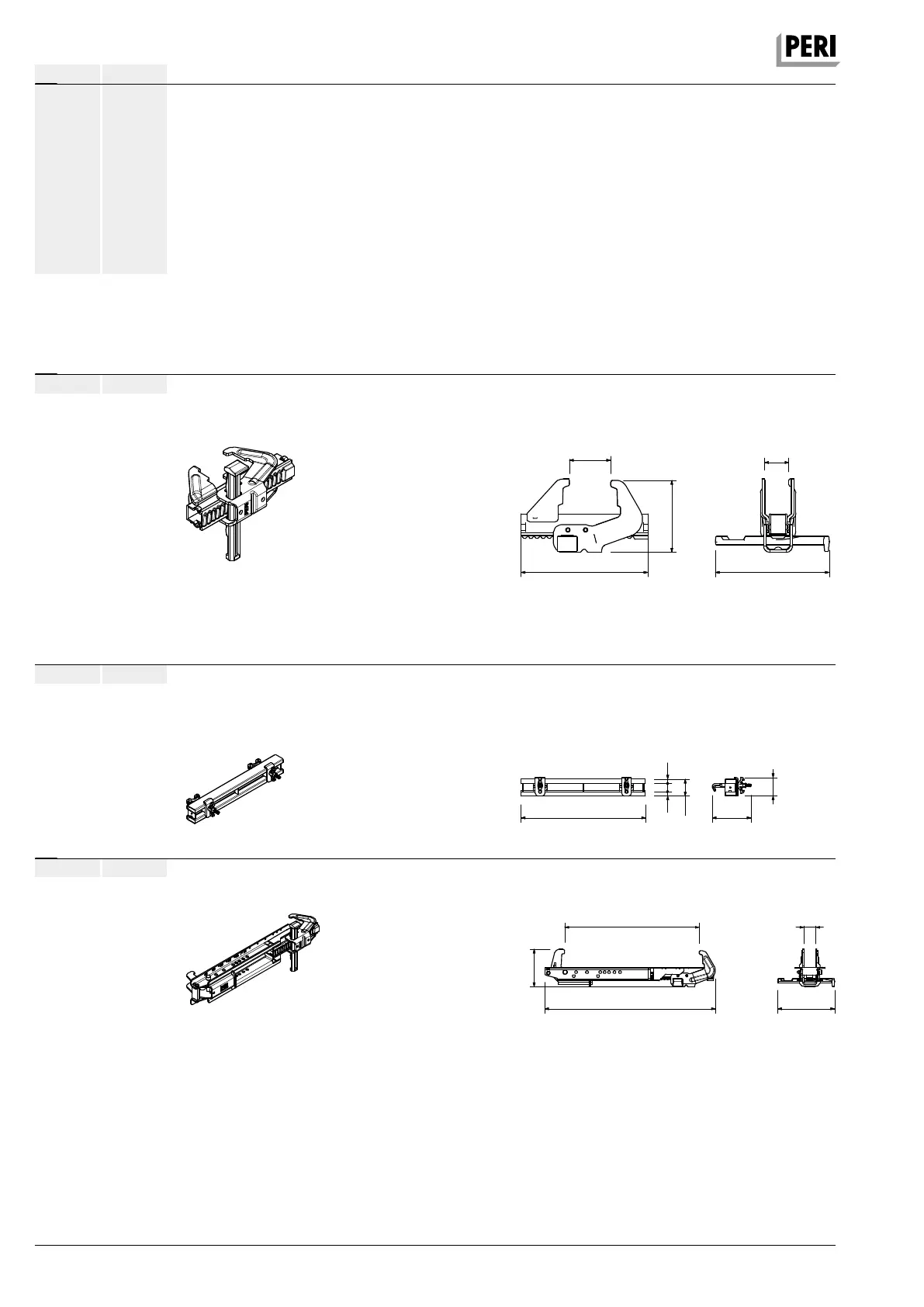

127732 11.000 Stopend Waler MX 15 – 40
612max min 362
1
7
0
775
53
259
124941 14.100 Waler MAR 85-3
For longitudinal compensation, height extensions,
stopend formwork and special applications with
MAXIMO. With captive connecting components.
Technical Data
Permissible bending moment 3.9 kNm.
850
1
1
5
3
0
3
0
264
1
2
6
023500 4.580 Alignment Coupler BFD, galv.
For all panel connections for MAXIMO, TRIO and
RUNDFLEX. Fillers up to 10 cm.
Technical Data
Permissible tension force 20.0 kN.
1
6
4
288 259
55
max 220
022601
022611
022621
022641
022651
022631
022661
023301
023281
023291
72.000
55.000
46.000
41.300
27.200
54.900
30.900
41.300
3.970
4.320
Panels TRIO Structure TS 120
Panel TRIO Structure TS 120 x 120
Panel TRIO Structure TS 120 x 90
Panel TRIO Structure TS 120 x 72
Panel TRIO Structure TS 120 x 60
Panel TRIO Structure TS 120 x 30
Panel TRIO Structure TSM 120 x 72
Corner TRIO Structure TSE 120
Artic. Corner TRIO Structure TSGE 120
Wall Thickness Comp. WDAS 120 x 5, Alu
Wall Thickness Comp. WDAS 120 x 6, Alu
Panel with 21 mm base plate.
