TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration

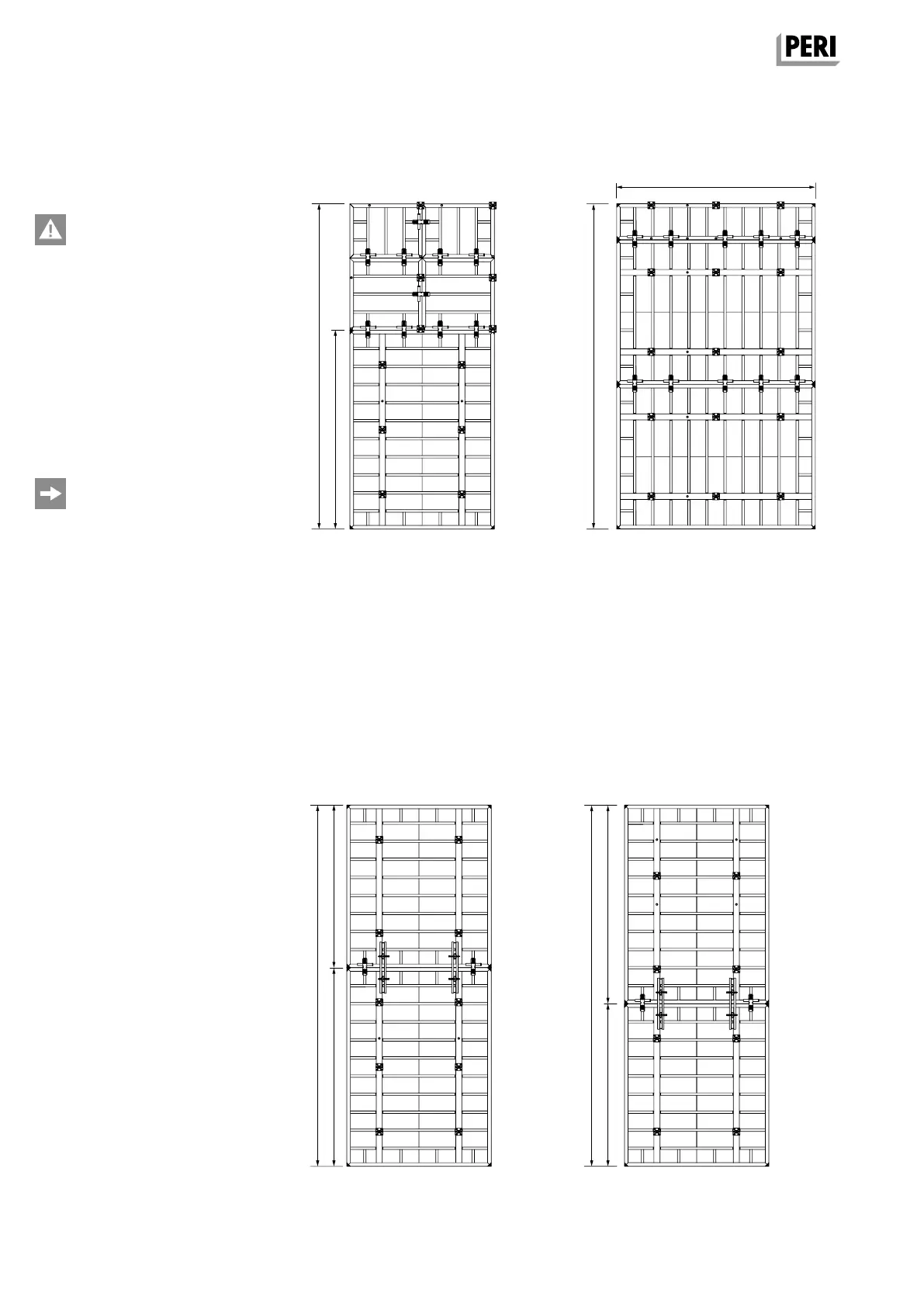

B1 TRIO 330
Extenions h = 6.00 m
With the combination 330 below +
270 above: 5 anchors per height.
(Fig. B1.07c)
With the combination 270 below +
330 above: 4 anchors per height.
(Fig. B1.07d)
Fig. B1.07b
Extensions up to h = 5.40 m
– Permissible load-bearing capacity
of the Lifting Hook 1.5 t:
– With steel panels: 1.5 t
– With aluminium panels: 750 kg
– Follow Instructions for Use:
Lifting Hook MAXIMO 1.5 t!
Panel connections
With height extension units < 5.40 m,
the Alignment Coupler BFD (20) is used
on the panel joints.
(Fig. B1.07a + B1.07b)
For extension possibilities, number and
arrangement of Alignment Couplers
BFD, Compensation Walers TAR 85 and
formwork ties, see TRIO poster 330.
Pre-assemble extension units in a
horizontal position, with the formlining
facing downwards, on a flat assembly
surface. Place timbers or the like
underneath.
Fig. B1.07dFig. B1.07c
Fig. B1.07a
