TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A11 Length compensations
Timber supplied by
contractor
Compensation up to max. 10 cm
Length compensation takes place using
timber (50) which has been cut to size.

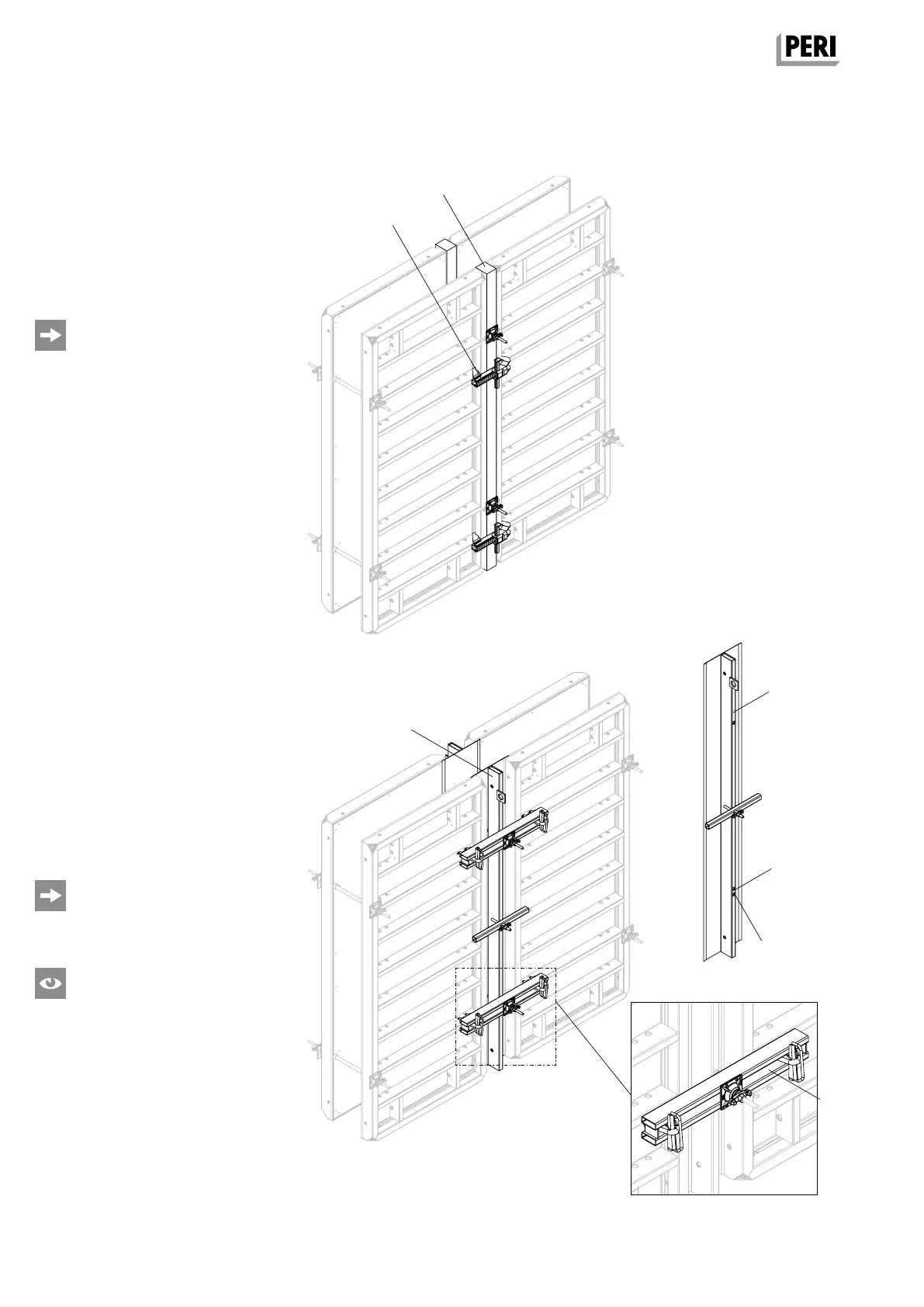

(Fig. A11.01)
– With compensations > 2.5 cm, anchor
in the middle of the timber.
– Alignment Couplers BFD (20) are to
be arranged as for standard panel
joints.
– The Wingnut Pivot Plate must overlap
the frame of the adjacent panel by at
least 1 cm.
TRIO Filler Plate LA
Compensations from 6 to 36 cm
With similar compensations on the
opposite side, install the Compensation
Waler TAR 85 (23) by means of the
hooks from above.
(Fig. A11.02)
The top tie hole (a) is used for
anchoring.
(Fig. A11.02a)
Always anchor through the TRIO Filler
Plate LA (52)!
The bottom Compensation Waler
TAR 85 (23) must be mounted in the
strut with the hooks from below if a
TRIO Panel is installed on the opposite
side, e.g. Multi Panel TRM 72.
(Fig. A11.02b)
Fig. A11.01
Fig. A11.02
Fig. A11.02b
Fig. A11.02a
a
b
