TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A12 Stopend formwork
56.1
Stopend panel with water
bar
H = 2.70 m and 1.20 m
Required components:
– 2 x Stopend Panel TRIO AT 3 (56)
for approx. 2.5 cm or AT 5 for approx.
5 cm concrete cover respectively
– 1 x Stopend Panel TRIO MTF (58)
(Fig. A12.05)
Assembly
1. Position first side of the formwork.
2. Attach Stopend Panel TRIO AT (56)
to the primary formwork using the
Alignment Coupler BFD (20).
3. Install first row of reinforcement.
4. Install Stopend Panel TRIO MTF (58)
and water bar.
5. Install second row of reinforcement.
6. Insert Stopend Panel TRIO AT in the
Stopend Panel TRIO MT and secure
with the Alignment Coupler BFD.
7. Position closing formwork.
8. Close formwork, and insert ties to
secure.
(Fig. A12.06 + A12.06a)
Stopend panel with
expandable water bar
Required components:
– 2 x Stopend Panel TRIO AT (56)
– 1 x Stopend Panel TRIO MTF (58)
– 1 x filler plate (51) supplied by the
contractor
(Fig. A12.07)
Wall thickness d [cm]
Concrete cover
approx. 25 mm
Concrete cover
approx. 50 mm
b
[mm]
40
2
1
1
2
1
11268MTF 120x35/36
11218MTF 120x30
11158MTF 120x24/25
11118MTF 120x20
1268MT 120x35/36
11218MT 120x30
11158MT 120x24/25
11118MT 120x20
222–AT 120x5
2222–AT 120x3
1268MTF 270x35/36
11218MTF 270x30
11158MTF 270x24/25
11118MTF 270x20
1268MT 270x35/36
11218MT 270x30
11158MT 270x24/25
11118MT 270x20
without water barwithout water bar
222–AT 270x5
2222–AT 270x3
35/363024/2535/363024/2520H = 2.70 m
with water barwith water bar
without water barwithout water bar
with water barwith water bar
H = 1.20 m

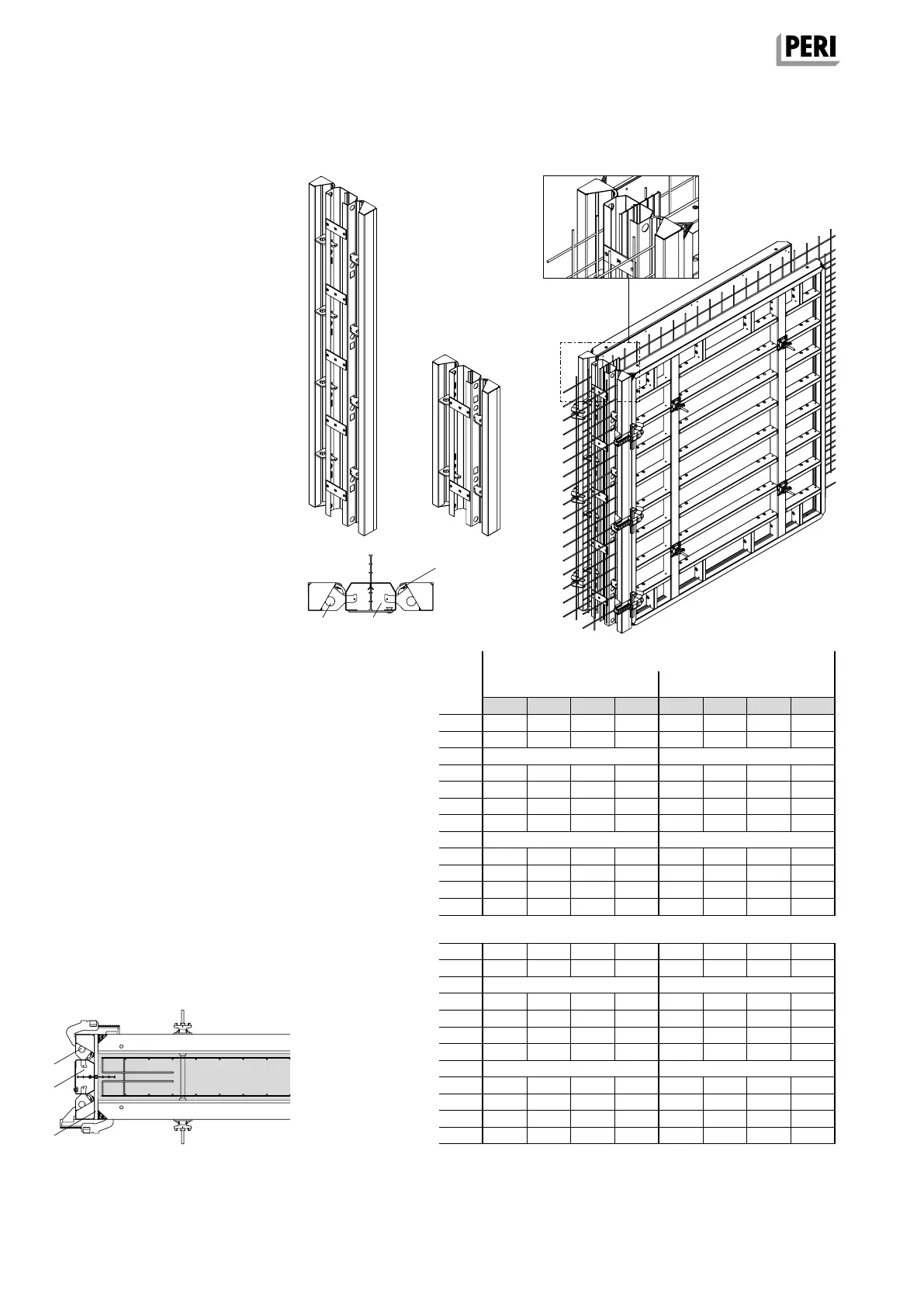

Fig. A12.05
Fig. A12.07
Fig. A12.06
Fig. A12.06a
