TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A13 Working and concreting platforms
Scaffold Brackets TRG 80
and TRG 120
A concreting platform is mounted on
the TRIO Panels using the Scaffold
Brackets TRG 80 and TRG 120 (61).
Technical data
– Perm. load: 150 kg/m² Load Class 2
according to DIN EN 12811-1
– Max. width of influence 1.35 m
Assembly
1. Hook in Scaffold Brackets (61) in
the connecting holes of the panels.
(Fig. A13.20).
Installation is possible on the
horizontal (Fig. A13.20a) and vertical
(Fig. A13.20b) panel struts.
2. Install planking from below over the
complete width of the brackets and
secure in position.
3. Install ladder safety cage and secure.
4. Attach side protection, e.g.
End Guardrail Frame 55 (72).
(Fig. A13.21)
With extended formwork units, the
working scaffold is mounted as part
of the pre-assembly process.
Visual check of the suspension
equipment.

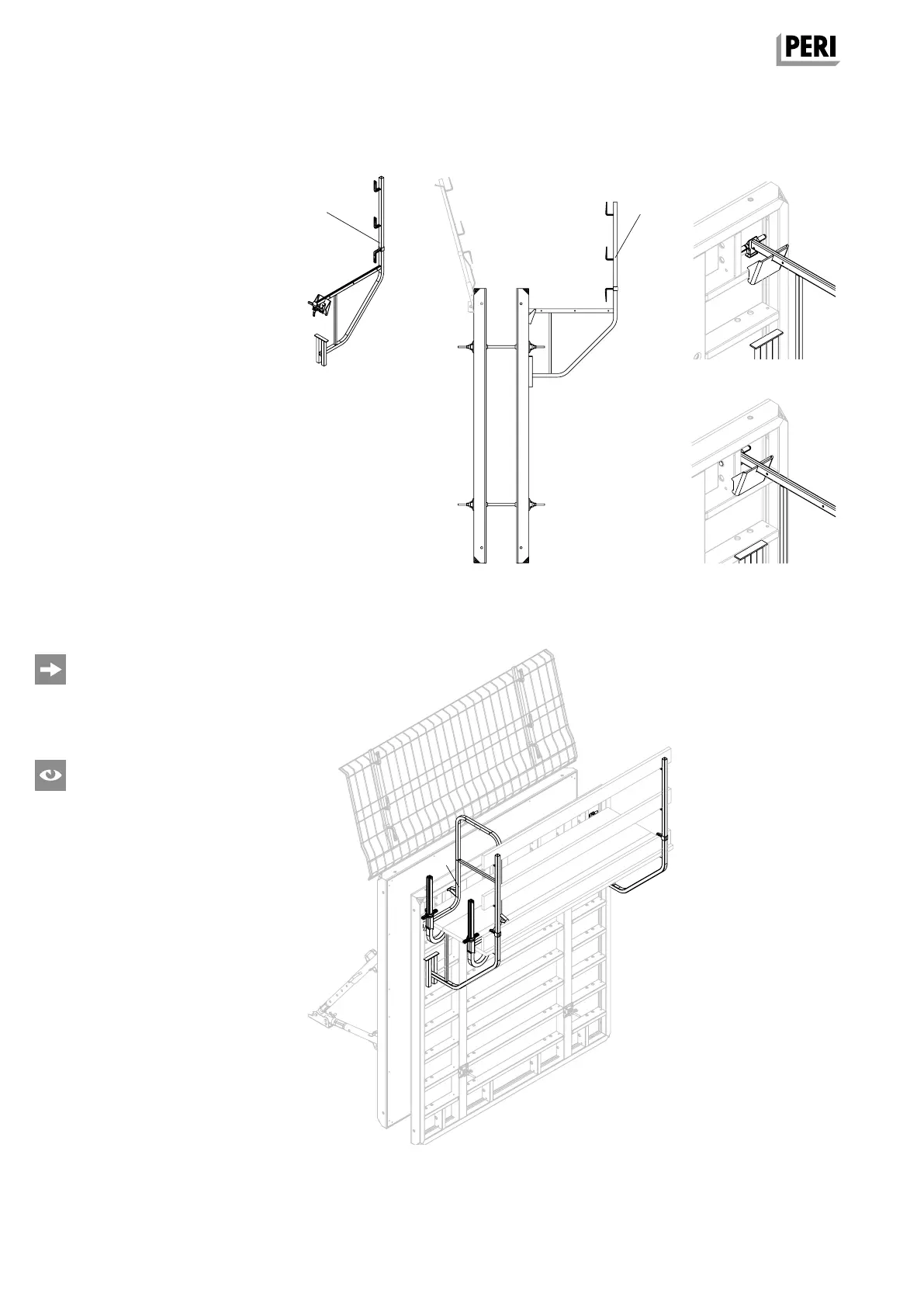

Fig. A13.20
Fig. A13.20a
Fig. A13.20b
Fig. A13.21
