Peri Trio - B1 TRIO 330; Standard joint; Combination 330 + 270; External corner

72
20
330
270
330
20
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration

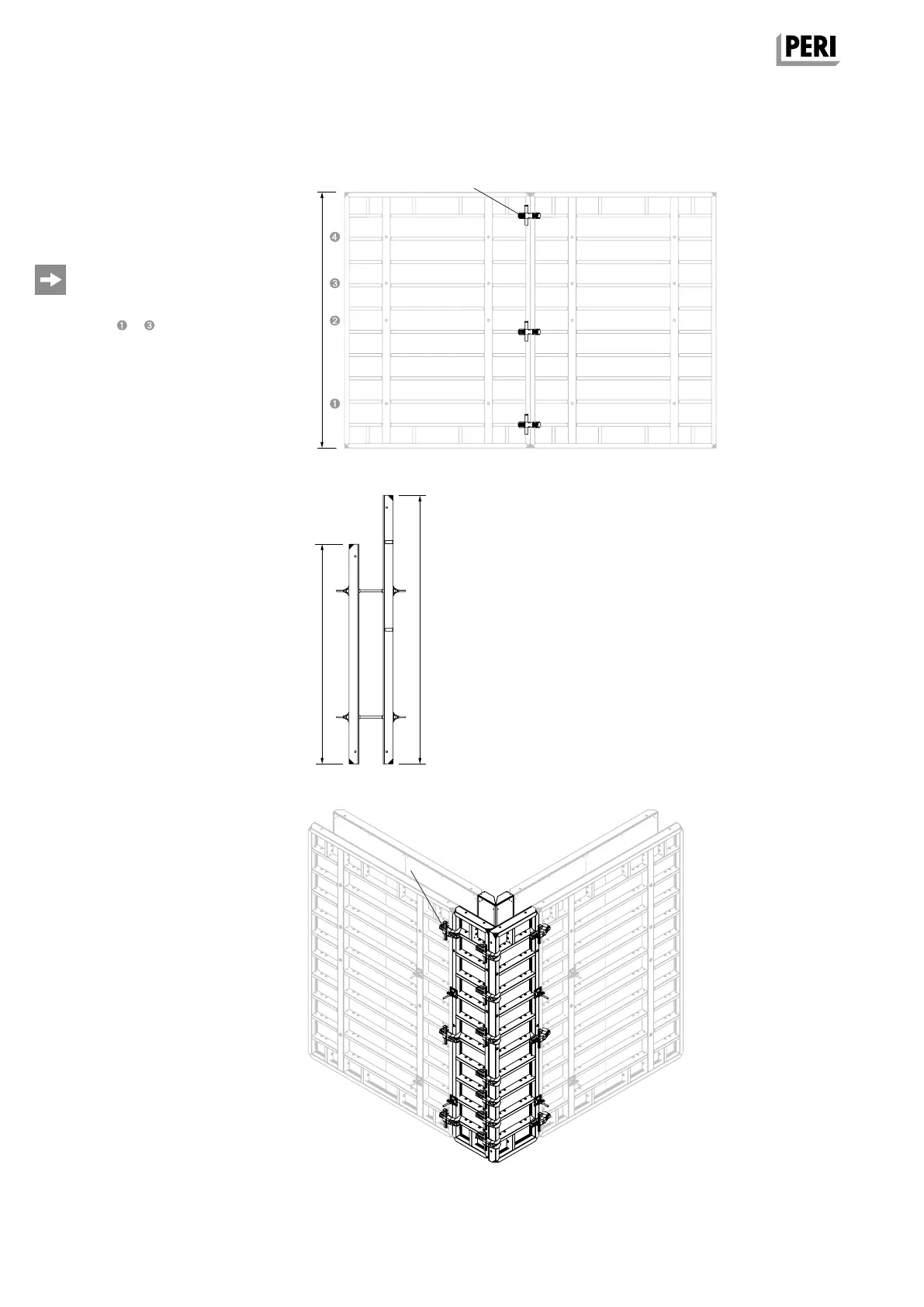

B1 TRIO 330
Standard joint
Panel connection with 3 x Alignment
Coupler BFD (20).
(Fig. B1.01)
For concreting height 3.30 m, only
anchor rows
+ are to be used.
Fig. B1.02
Combination 330 + 270
h = 330 with h = 270
(Fig. B1.02)
External corner
Panel connection with 7 x Alignment
Coupler BFD (20).
(Fig. B1.03)
Fig. B1.01
Fig. B1.03
