71
1.
2.
3.

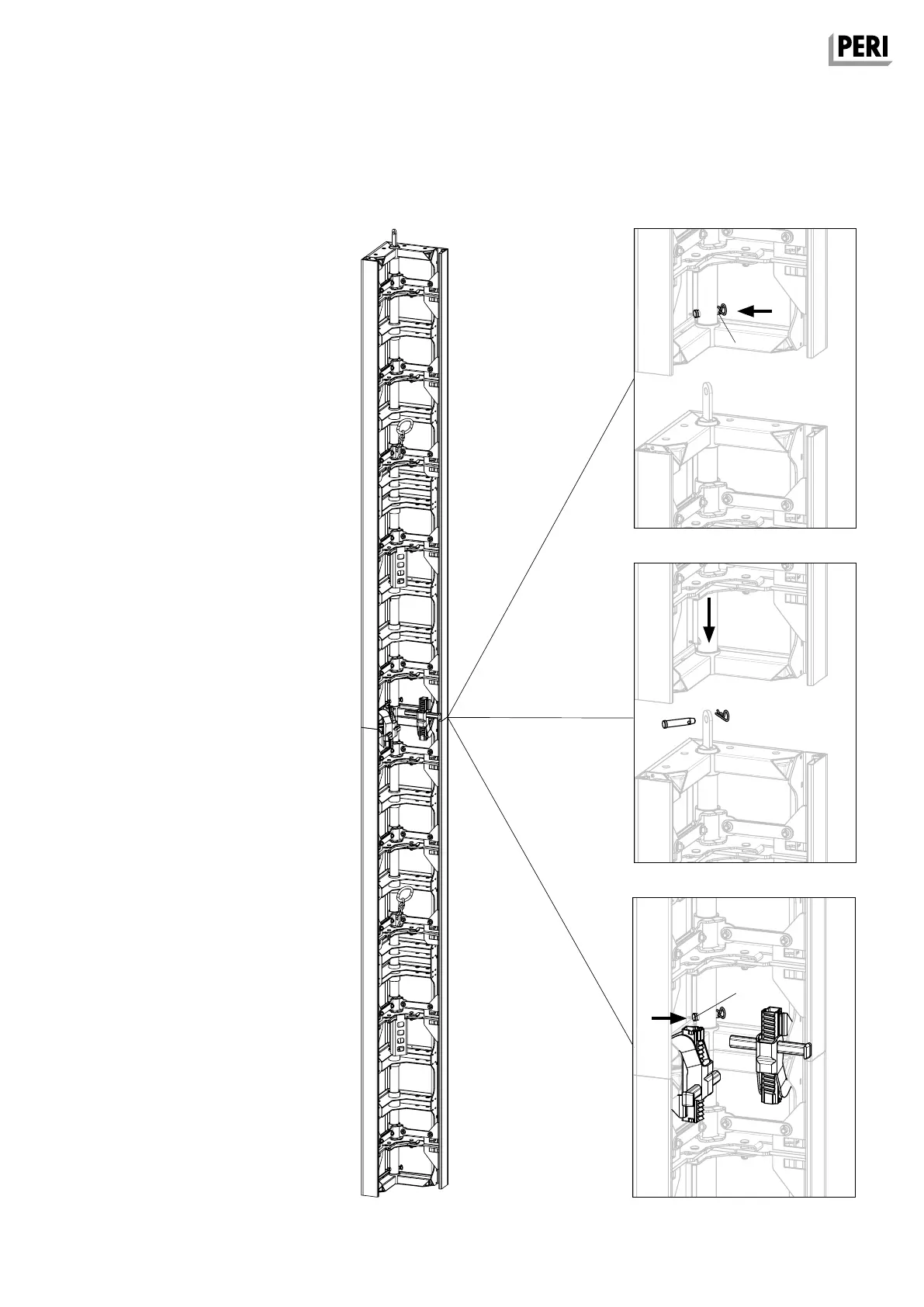

Extensions
Shown: height 330 cm
Assembly
1. Remove cotter pins and bolts (89.3).
(Fig. A17.11a)
2. Position shaft corners on top of each
other. (Fig. A17.11 + A17.11b) Thereby,
push the tension strap of the bottom
panel into the tube of the top panel.
J The holes are congruent.
3. Insert bolts (89.3) through the
congruent holes and secure with
cotter pins.
(Fig. A17.11 + A17.11c)
A17 Shaft formwork
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Fig. A17.11c
Fig. A17.11b
Fig. A17.11a
Fig. A17.11
89.3
89.3
