Peri Trio - Stopend Waler height 330

40
60 kN/m² 80 kN/m²
18
51
48
40
35
30
20
15
25
60 kN/m² 80 kN/m²
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A12 Stopend formwork
Perm. fresh concrete pressure 60 kN/m²
Wall thicknesses ≤ 40 cm
Perm. fresh concrete pressure 80 kN/m²

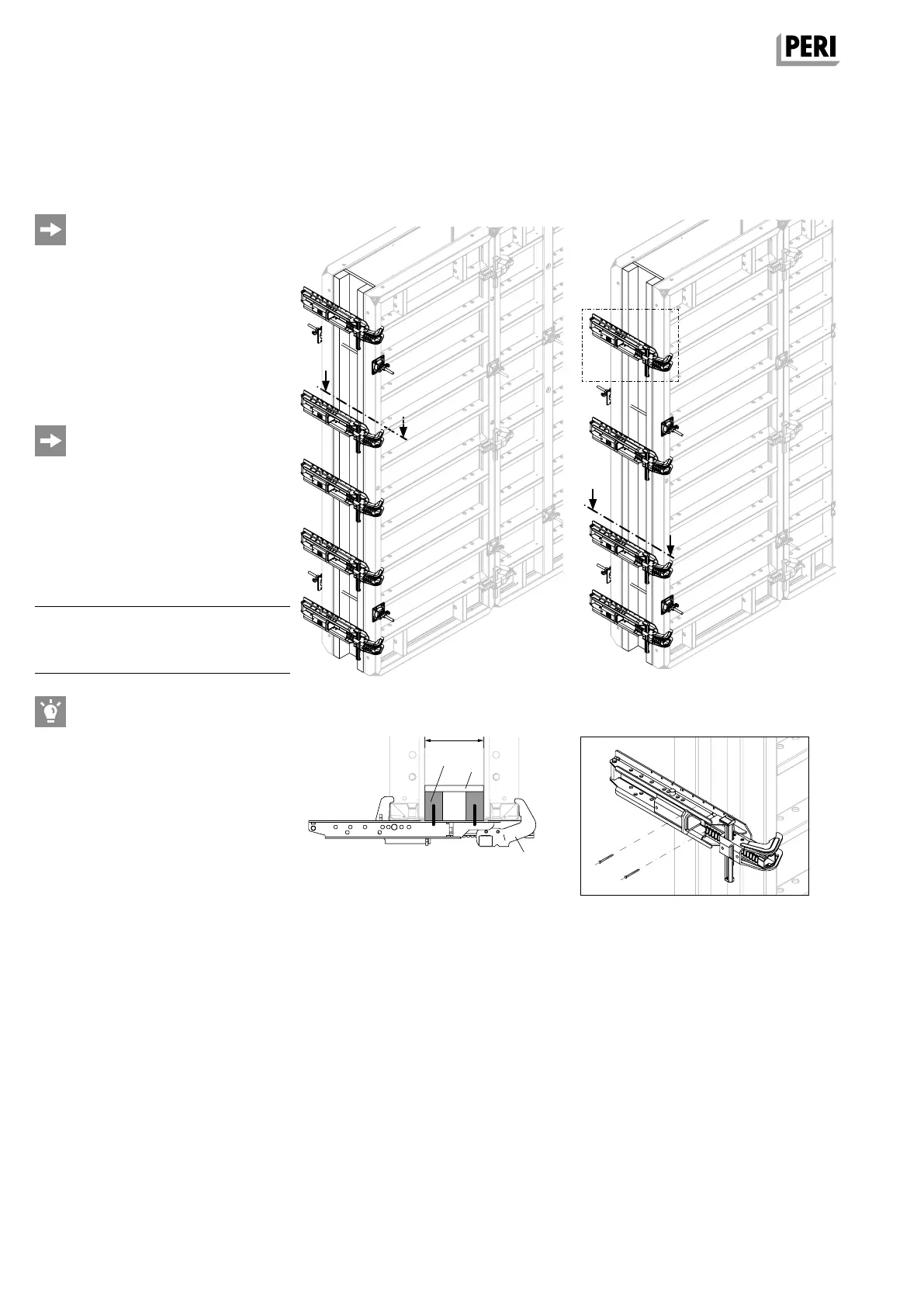

Fig. A12.10
Fig. A12.11
Stopend Waler
height 330
The fresh concrete pressure of the
stopend formwork is transferred to the
TRIO Panels by means of the Stopend
Walers.
Wall end with Panels 330 x width
Valid for TRIO Panels:
330 x 30/45/60/90/120/240
Shown: 330 x 120
Arrangement of the Stopend Waler:
– Wall thickness ≤ 40 cm for:
perm. fresh concrete pressure 80 kN/m²
(Fig. A12.10 + A12.10a)
perm. fresh concrete pressure 60 kN/m²
(Fig. A12.11 + A12.10a)
Pos. Components Item no.
18 Filler timber
48 Stopend Waler MX 15-40 127732
51 Plywood filler 21 mm
Fix 3 x Stopend Walers with 2 nails
respectively thus ensuring that the
filler timber does not slide inwards.
(Fig. A12.11a)
Section A-A
WD 15 to WD 40 (Fig. A12.10a)
A
A
A-A
Fig. A12.10b
15≤WD≤40
Fig. A12.11a
Detail “X”
A
A
„X"
