TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration

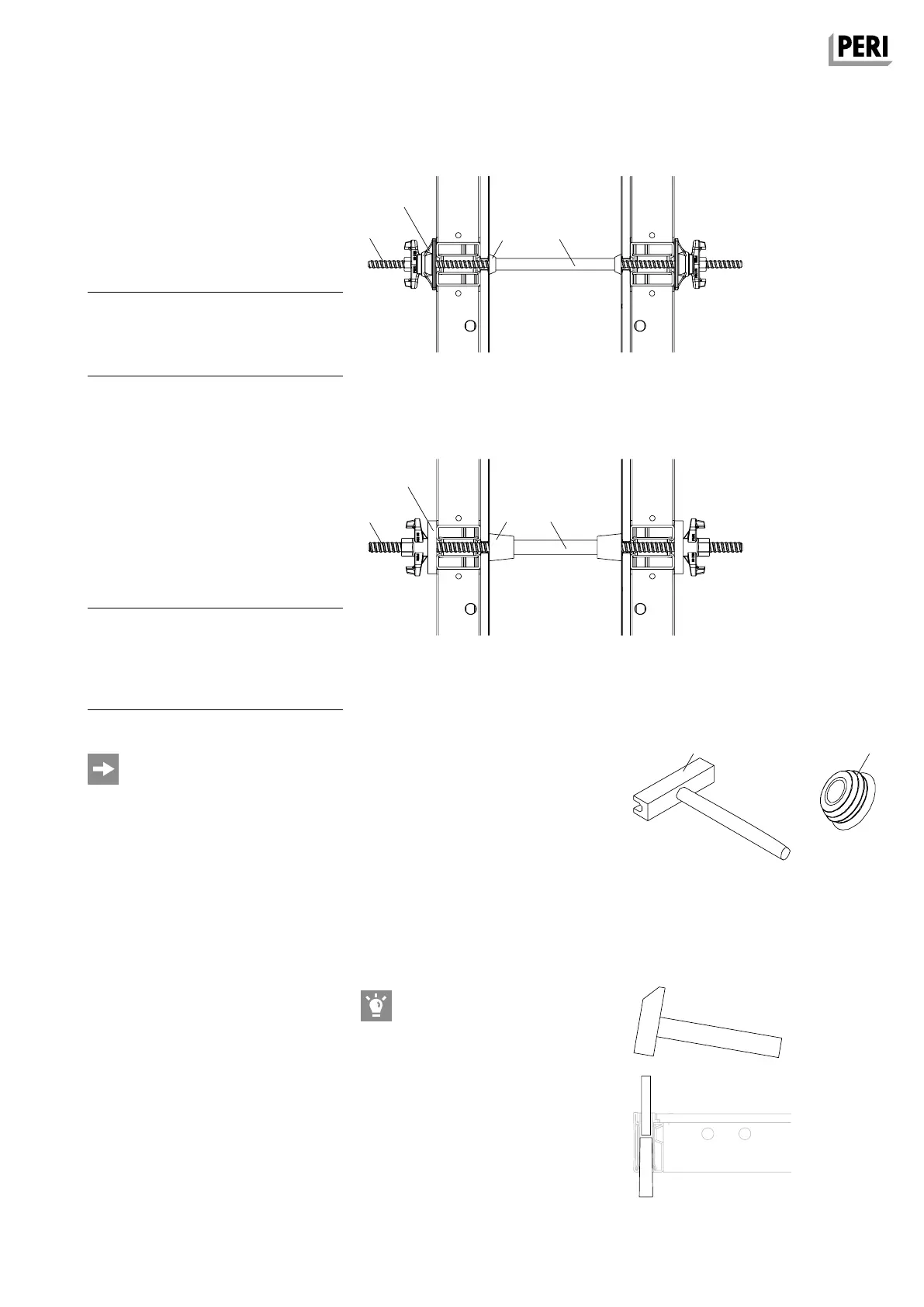

A5 Tie Points
Tie System DW 15
(standard)
Permissible load 90 kN according to
DIN 18216.
Pos. Component
30 Tie Rod DW 15
31 Spacer Tube
32 Cone
33 Wingnut Pivot Plate DW 15
(Fig. A5.01)
Due to their conical shape, tie holes in
the panels which are filled with concrete
can be freed with a hammer blow.
(Fig. A5.04)
Tie System DW 20
Permissible load 150 kN according to
DIN 18216.
For higher concrete pressures of
56 kN/m² and more, the DW 20 is used.
Pos. Component
30 Tie Rod DW 20
31 Spacer Tube
34 Counterplate DW 20
35 Wingnut DW 20
39 DK Sealing Cone
(Fig. A5.02)
Application
– Only use the number of ties as is
required. Seal tie holes which are
not required in the panel with Plugs
Ø 20/24 mm.
– Do not exceed permissible tie loads.
– Comply with rate of rise.
– Ensure that the contact surfaces are
clean when using the sealing cone.
Accessories
– Tie Rod Wrench 15 (36) for one-man
tie point operations from one side of
the formwork.
– Plugs Ø 20/24 mm (37) for closing tie
holes which are not required.
(Fig. A5.03)
Fig. A5.01
Fig. A5.02
Fig. A5.03
Fig. A5.04
34, 35
